Запчасти Case IH OPTUM 270 CVT (35.100.040[01A]) - VAR - 391138, 758022, 758870, 759053 - PRIORITY VALVE, LINE - BEGIN YR 01-OCT-2016 (35) - HYDRAULIC SYSTEMS

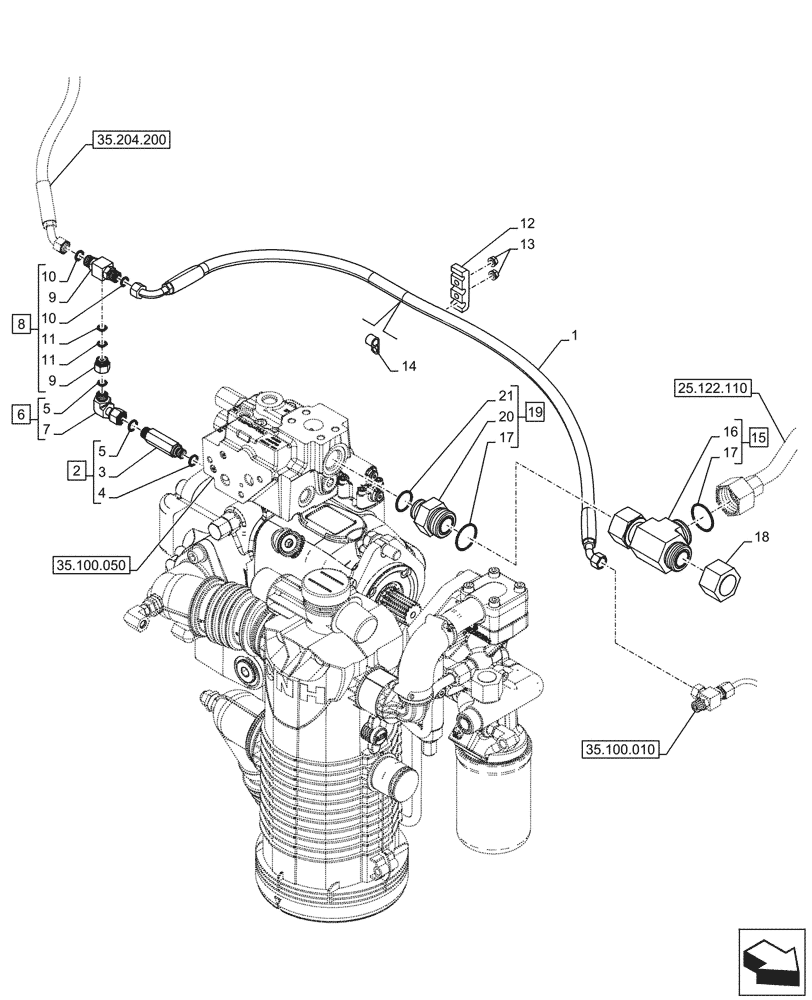

Схема запчастей Case IH OPTUM 270 CVT - (35.100.040[01A]) - VAR - 391138, 758022, 758870, 759053 - PRIORITY VALVE, LINE - BEGIN YR 01-OCT-2016 (35) - HYDRAULIC SYSTEMS
35.204.200
17
18
15
4
6
7
17
8
20
3
9
21
5
10
14
19
16
11
1
11
12
13
9
10
5
2
25.122.110
35.100.010
35.100.050

Артикул

Название

Примечание

Количество

1

47950505

HYDRAULIC HOSE

LS

1шт.

2

84270265

FITTING,M12 x 1.5 x 9/16"-18

ASSY, Incl 3, 4, 5 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

6

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 5 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.

8

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

ASSY, Incl 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Valve, Incl in 8

1шт.

10

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

11

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

12

47746091

CLAMP,12mm H x 20mm Thk x 62mm L

1шт.

13

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

14

87564736

CLAMP,14.3mm, Insul, M6 Bolt

1шт.

15

86641295

TEE,1-7/16"-12 ORFS to Swivel

ASSY, Incl 16, 17 (Qty 1)

1шт.

16

NSS

NOT SOLD SEPARAT

Tee, Incl in 15

1шт.

17

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

18

9847690

CAP,1-7/16" - 12 ORFS

1шт.

19

86639051

HYD CONNECTOR,1-7/16" - 12 ORFS x M27 x 2 ORB

ASSY, Incl 17 (Qty 1), 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

Connector, Incl in 19

1шт.

21

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
