Запчасти Case IH OPTUM 270 CVT (35.100.040[01]) - VAR - 391138, 758022, 758870, 759053 - PRIORITY VALVE, LINE - END YR 30-SEP-2016 (35) - HYDRAULIC SYSTEMS

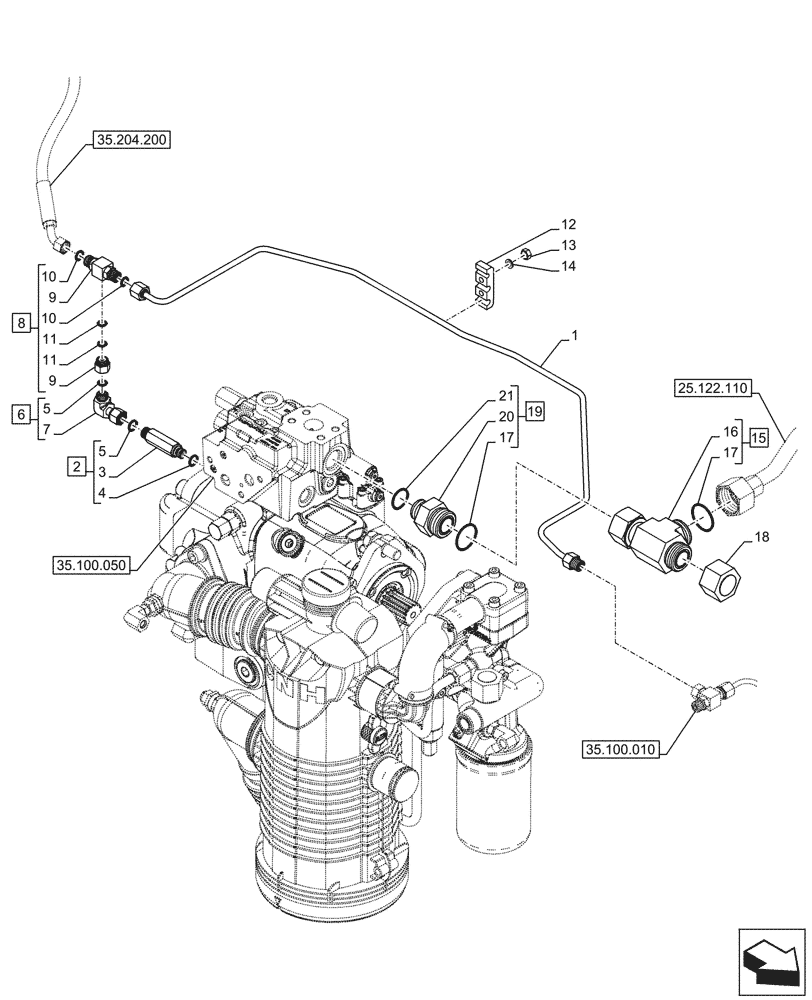

Схема запчастей Case IH OPTUM 270 CVT - (35.100.040[01]) - VAR - 391138, 758022, 758870, 759053 - PRIORITY VALVE, LINE - END YR 30-SEP-2016 (35) - HYDRAULIC SYSTEMS
35.100.010
3
5
13
16
4
11
11
12
20
2
10
9
5
19
15
8
17
7
14
18
21
17
9
1
6
10
35.100.050
25.122.110
35.204.200

Артикул

Название

Примечание

Количество

1

47859044

PIPE

LS

1шт.

2

84270265

FITTING,M12 x 1.5 x 9/16"-18

ASSY, Incl 3, 4, 5 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

6

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 5 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.

8

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

ASSY, Incl 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Valve, Incl in 8

1шт.

10

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

11

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

12

47746091

CLAMP,12mm H x 20mm Thk x 62mm L

1шт.

13

9706755

NUT,M6, Cl 8

2шт.

14

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

86641295

TEE,1-7/16"-12 ORFS to Swivel

ASSY, Incl 16, 17 (Qty 1)

1шт.

16

NSS

NOT SOLD SEPARAT

Tee, Incl in 15

1шт.

17

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

18

9847690

CAP,1-7/16" - 12 ORFS

1шт.

19

86639051

HYD CONNECTOR,1-7/16" - 12 ORFS x M27 x 2 ORB

ASSY, Incl 17 (Qty 1), 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

Connector, Incl in 19

1шт.

21

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
