Запчасти Case IH OPTUM 270 CVT (35.100.030) - VAR - 758037, 758039, 758040, 758042, 758044 - PRIORITY VALVE, LINE (35) - HYDRAULIC SYSTEMS

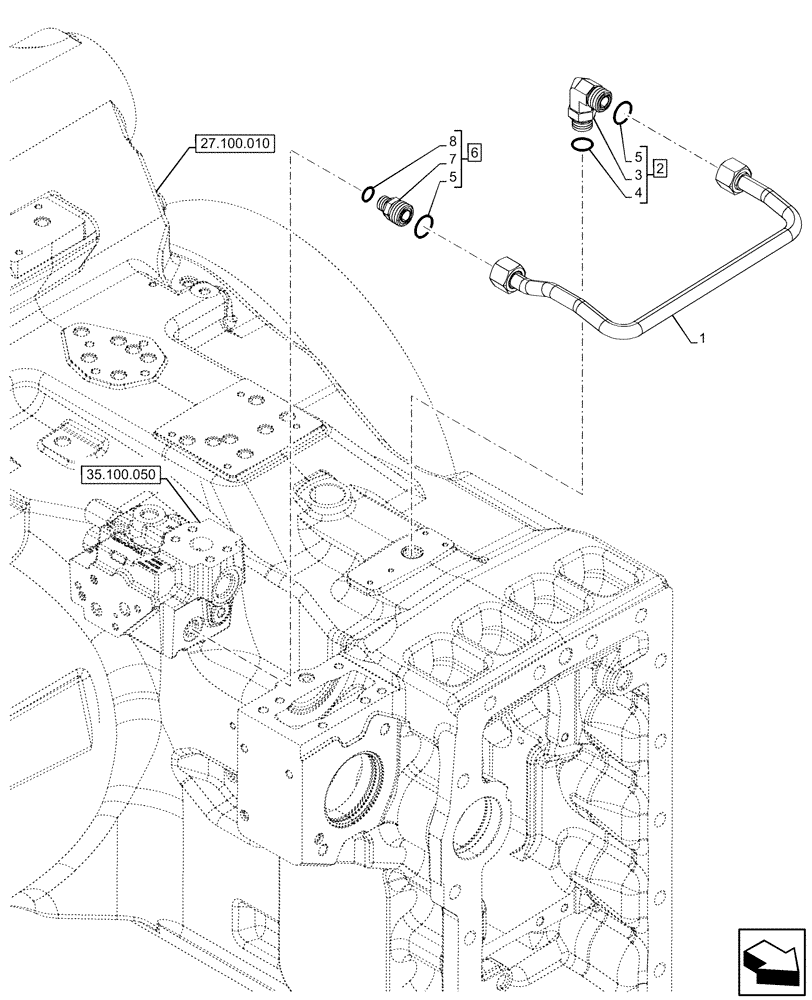

Схема запчастей Case IH OPTUM 270 CVT - (35.100.030) - VAR - 758037, 758039, 758040, 758042, 758044 - PRIORITY VALVE, LINE (35) - HYDRAULIC SYSTEMS
27.100.010
8
2
7
4
5
1
6
3
5
35.100.050

Артикул

Название

Примечание

Количество

1

47744129

PIPE

Trailer Brake Valve Drain

1шт.

2

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Incl 3, 4, 5 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

4

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

6

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 5 (Qty 1), 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 8
