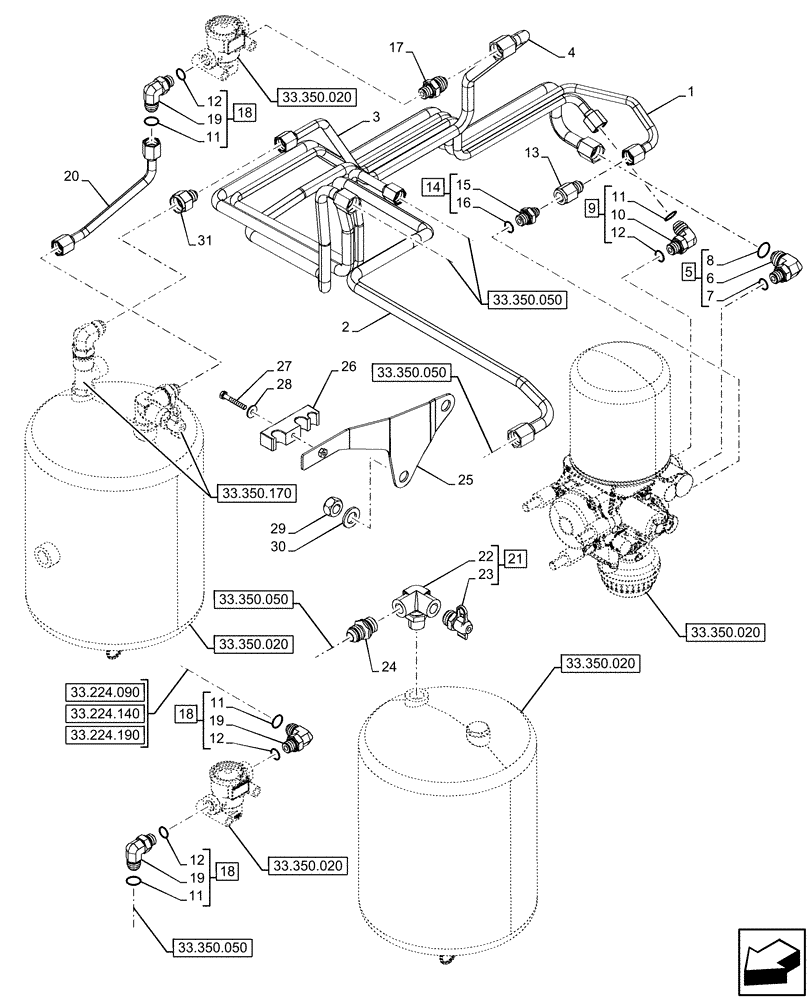

Запчасти Case IH OPTUM 270 CVT (33.350.160) - VAR - 758038, 758039, 758041, 758042, 758044 - ANTILOCK BRAKING SYSTEM (ABS), LINE (33) - BRAKES & CONTROLS

1

47614125

PIPE

Air from APU to PLV

1шт.

2

47748637

PIPE

Air from APU to PLV

1шт.

3

47811559

PIPE

Air from APU to Reservoir

1шт.

4

47614131

PIPE

Air from PLV to FBV

1шт.

5

47557915

ELBOW,M16 x 1.5 x 38.5mm

ASSY, Incl 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

7

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

47460751

FITTING,M16 x 1.5 x 36.5mm

ASSY, Incl 10 (Qty 1), 11, 12 (Qty 1)

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

1шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

12

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

4шт.

13

87411460

REDUCER,7.64mm OD x 40.64 L

1шт.

14

5192907

HYD CONNECTOR,M16 x 1.5 x 35mm L

ASSY, Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

16

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

17

47583091

HYD CONNECTOR,M16 x 1.5 x 42mm L

1шт.

18

84553346

HYD CONNECTOR,M16 x 1.5

ASSY, Incl 11 (Qty 1), 12 (Qty 1), 19 (Qty 1)

3шт.

19

NSS

NOT SOLD SEPARAT

Elbow, Incl in 18

3шт.

20

47614129

PIPE

from Limiting Valve to Reservoir

1шт.

21

47618996

HYD CONNECTOR,M22 x 1.5

ASSY, Incl 22, 23

1шт.

22

87345149

ELBOW UNION,M22 x 1.5

1шт.

23

87345096

FITTING,M16 x 1.5 x M22 x 1.5

1шт.

24

5158803

HYD CONNECTOR,M22 x 1.5 ORB x 7/8" - 14 JIC

1шт.

25

47667450

BRACKET

1шт.

26

84423528

CLIP,26mm H x 21mm Thk x 93mm L

1шт.

27

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

28

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

1шт.

29

12164124

NUT,M16 x 1.5, Cl 8

1шт.

30

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

31

87029966

REDUCER,7/8" - 14 JIC x 3/4" - 16 JIC

1шт.
