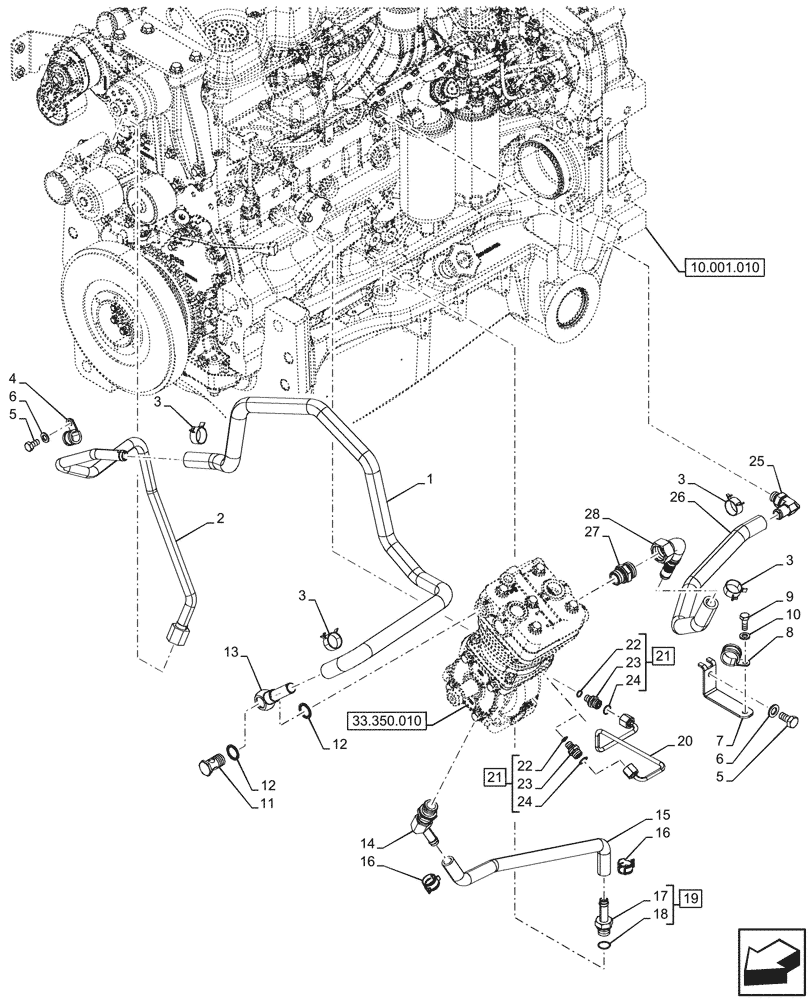

Запчасти Case IH OPTUM 270 CVT (33.350.140) - VAR - 758038, 758039, 758041, 758042, 758044 - ANTILOCK BRAKING SYSTEM (ABS), COMPRESSOR, LINE (33) - BRAKES & CONTROLS

1

47767707

HOSE,15.25mm ID

Compressor Water Return

1шт.

2

47767708

PIPE

Compressor Water Return

1шт.

3

82019905

HOSE CLAMP,22 - 26mm X 12mm

4шт.

4

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

1шт.

5

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

7

47640868

BRACKET

1шт.

8

10418001

RETAINER,24mm, Coat, P Type

1шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

11

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

12

87667808

SEAL,22mm ID x 30mm OD x 1.5mm Thk

2шт.

13

47916721

HYD CONNECTOR,M22 x 1.5

1шт.

14

47640062

FITTING,M22 x 1.5 x 50mm L

1шт.

15

47623995

HOSE

Oil Drain

1шт.

16

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

17

NSS

NOT SOLD SEPARAT

Fitting, Inc in 19

1шт.

18

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

47916720

HYD CONNECTOR,M18 x 1.5 x 62.9mm L

ASSY, Incl 17, 18

1шт.

20

47761773

PIPE

1шт.

21

87016907

HYD CONNECTOR,9/16"-18 ORFS x M10 x 1 ORB

ASSY, Incl 22 (Qty 1), 23 (Qty 1), 24 (Qty 1)

2шт.

22

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

2шт.

23

NSS

NOT SOLD SEPARAT

Connector, Incl in 21

2шт.

24

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

25

47367834

90 ELBOW,M16 x 1.5 x 39.5mm

1шт.

26

47625743

HOSE

Compressor Water Supply

1шт.

27

9501819

HYD CONNECTOR,M26 x 1.5 x M22 x 1.5 ORB

1шт.

28

47408235

FITTING,16mm ID

1шт.
