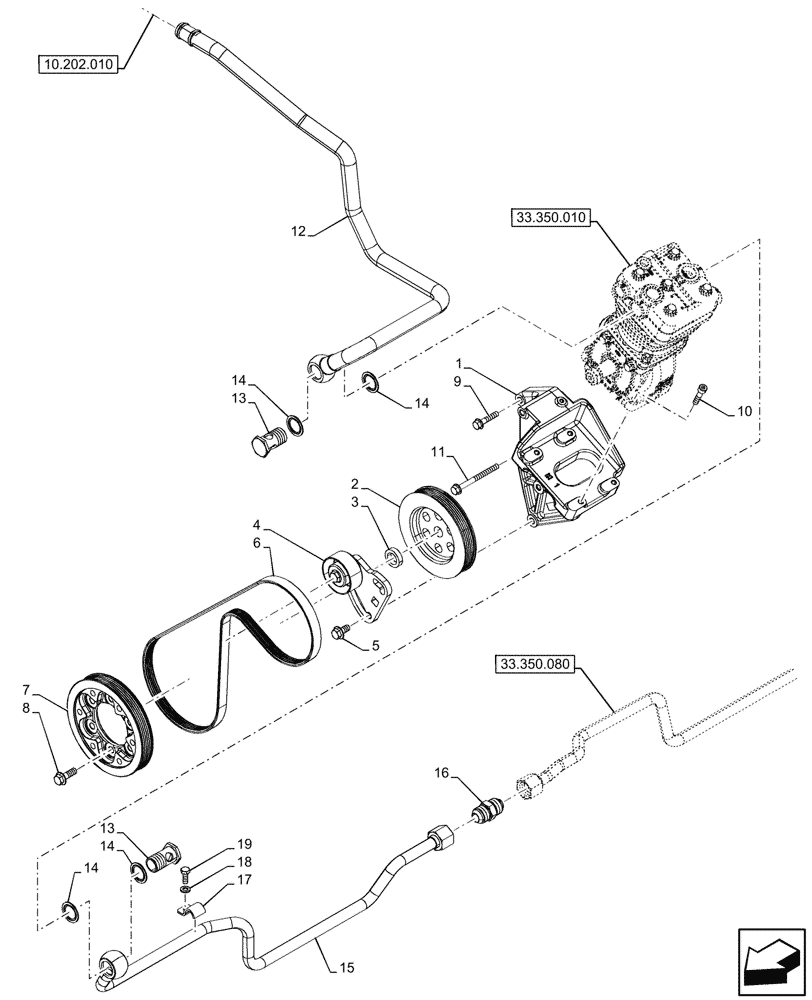

Запчасти Case IH OPTUM 270 CVT (33.350.130) - VAR - 758038, 758039, 758041, 758042, 758044 - ANTILOCK BRAKING SYSTEM (ABS), COMPRESSOR, SUPPORT, LINE (33) - BRAKES & CONTROLS

1

47531497

SUPPORT

1шт.

2

47568728

PULLEY

1шт.

3

81806277

SEAL,20.83mm ID x 31.75mm OD x 8.13mm Thk

1шт.

4

47560878

TENSIONER

1шт.

5

16288324

FLANGE BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

6

47560879

BELT,18mm W x 1270mm L, 5 Ribs

1шт.

7

47579871

PULLEY

1шт.

8

16288524

FLANGE BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

9

86624973

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

1шт.

10

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

11

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

2шт.

12

47753272

PIPE

Air Intake

1шт.

13

84532344

BANJO BOLT,M26 x 1.5 x 38mm L

2шт.

14

87665420

SEAL,23.4mm ID x 36mm OD x 1.5mm Thk

4шт.

15

47806299

PIPE

from Compressor to APU

1шт.

16

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

17

47926646

BRACKET

1шт.

18

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.
