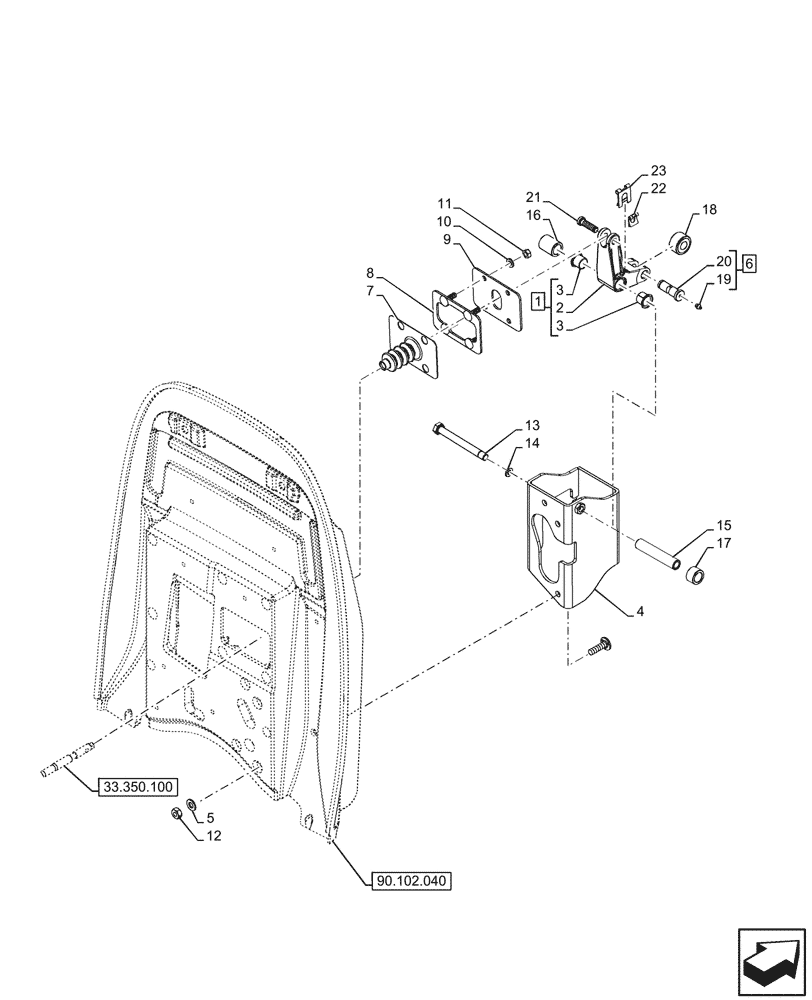

Запчасти Case IH OPTUM 270 CVT (33.350.110) - VAR - 758802, 758803, 758804, 758805, 758806, 758807, 758871 - ANTILOCK BRAKING SYSTEM (ABS), PEDAL, LEVERAGE (33) - BRAKES & CONTROLS

1

47426185

LEVER

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

3

47426197

BUSHING,18mm ID x 20mm OD x 17mm L, flangeOD: 26mm

2шт.

4

47415850

SUPPORT

Black

1шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

6

47566421

PIN,20mm OD x 50.5mm L

ASSY, Incl 20, 21

1шт.

7

84406187

BOOT

1шт.

8

84404969

PLATE

1шт.

9

47415846

PLATE

1шт.

10

11197874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 2.2mm Thk

4шт.

11

336256

NUT,M8, Cl 8

4шт.

12

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

13

84575883

PIN,18mm OD x 123.5mm L

1шт.

14

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

1шт.

15

47426186

SPACER,12mm ID x 18mm OD x 94mm L

1шт.

16

47415842

SPACER,18mm ID x 27mm OD x 16.7mm L

1шт.

17

47415844

SPACER,18mm ID x 27mm OD x 32.7mm L

1шт.

18

47426192

BEARING, ROLLER, CYL,15mm ID x 35mm OD x 19mm W

1шт.

19

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

20

NSS

NOT SOLD SEPARAT

Pin, Incl in 6

1шт.

21

47415847

PIN,15mm OD x 36mm L

1шт.

22

11064171

SPRING CLIP,M10 x 8

1шт.

23

47554724

CLIP,M16 x 10 x 34mm

1шт.
