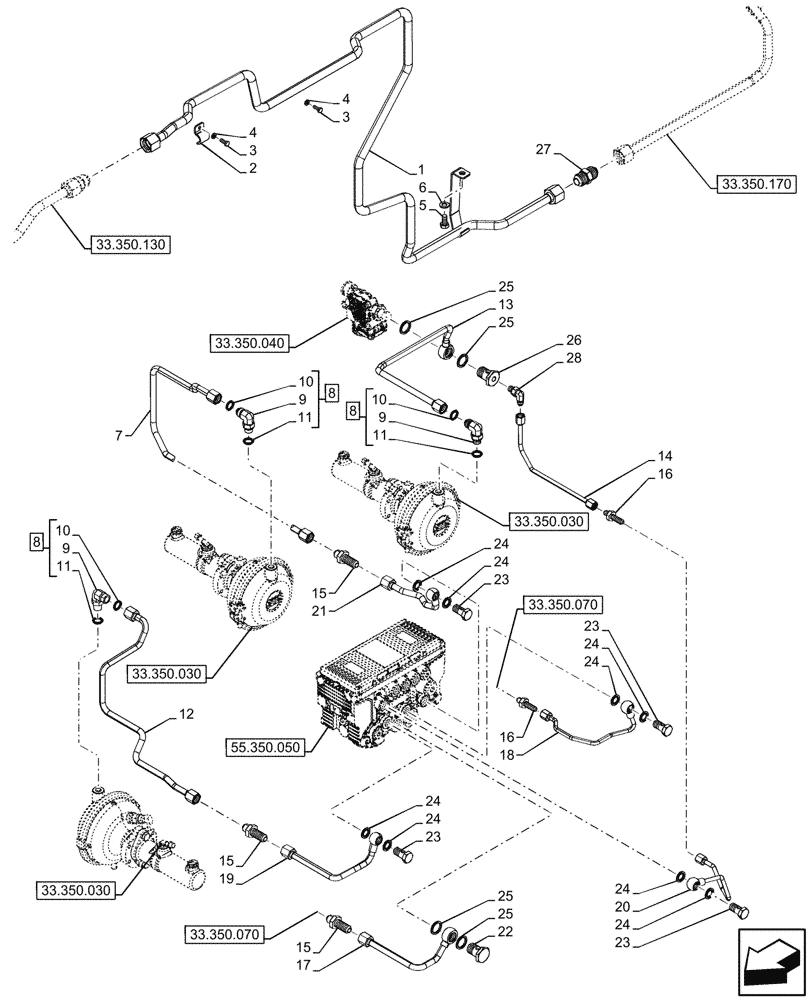

Запчасти Case IH OPTUM 270 CVT (33.350.080) - VAR - 758035 - 758036 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE SERVO, LINE (33) - BRAKES & CONTROLS

1

47935804

PIPE

Air from Compressor to APU

1шт.

2

5193286

BRACKET

1шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

7

47928004

PIPE

Air from EBM to Actuator

1шт.

8

84553346

HYD CONNECTOR,M16 x 1.5

ASSY, Incl 9 (Qty 1), 10 (Qty 1), 11 (Qty 1)

3шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

3шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

11

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

3шт.

12

47743466

PIPE

Air from EBM to Actuator

1шт.

13

47893817

PIPE

Air from Pressure Control Valve to Actuator

1шт.

14

47893815

PIPE

Air from EBM to Pressure Control Valve

1шт.

15

264654

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3шт.

16

86513088

UNIVERSAL JOINT,1/2-20 x 2.08" L

2шт.

17

47744008

PIPE

Air from EBM to Interface

1шт.

18

47744006

PIPE

Air from EBM to Interface

1шт.

19

47744004

PIPE

Air from EBM to Actuator

1шт.

20

47744000

PIPE

Air from EBM to Pressure Control Valve

1шт.

21

47744002

PIPE

Air from EBM to Actuator

1шт.

22

84474995

BANJO BOLT,M22 x 1.5

1шт.

23

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

4шт.

24

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

8шт.

25

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

4шт.

26

47614013

BANJO BOLT,Hex, M22 x 1.5 x 32.5mm L

1шт.

27

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

28

47881671

ELBOW UNION,M12 x 1.5 x 31.5mm

1шт.
