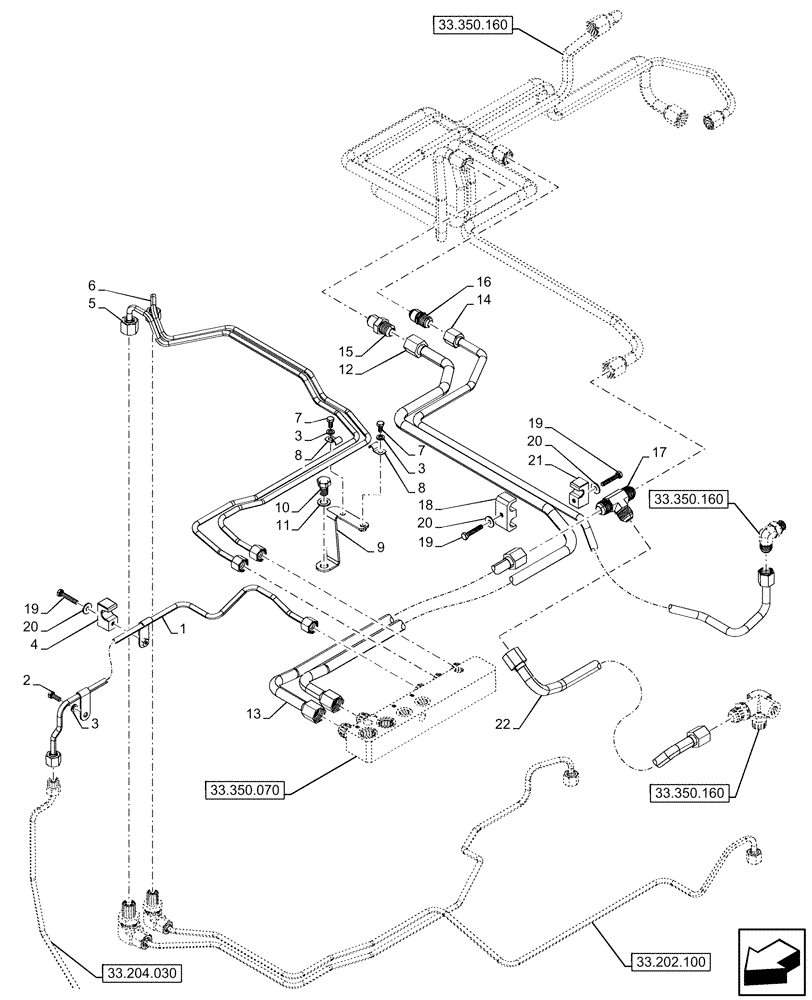

Запчасти Case IH OPTUM 270 CVT (33.350.050) - VAR - 758035 - 758036 - ANTILOCK BRAKING SYSTEM (ABS), LINE (33) - BRAKES & CONTROLS

1

47908607

PIPE

from EBM to Front Brake

1шт.

2

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

3

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

4

87326640

CLAMP,16mm ID

1шт.

5

47744076

PIPE

from EBM to LH Brake

1шт.

6

47744074

PIPE

from EBM to RH Brake

1шт.

7

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

8

10113104

CLAMP,8mm, 7mm Bolt Hole, J Type

2шт.

9

47748567

BRACKET

1шт.

10

15540224

SCREW,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

1шт.

12

47744080

PIPE

from EBM to Pressure Switch

1шт.

13

47744082

PIPE

from EBM to Reservoir

1шт.

14

47746752

PIPE

Servo Control Valve

1шт.

15

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

16

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

17

16985

TEE,7/8"-14, 37 Degree

1шт.

18

87608306

CLAMP BRACKET

1шт.

19

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

3шт.

20

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

21

87532290

BRACKET

1шт.

22

47746750

PIPE

from EBM to LH Reservoir

1шт.
