(33.350.030) - VAR - 758035 - 758036 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE SERVO, BRAKE FLUID RESERVOIR

Запчасти Case IH OPTUM 270 CVT (33.350.030) - VAR - 758035 - 758036 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE SERVO, BRAKE FLUID RESERVOIR (33) - BRAKES & CONTROLS

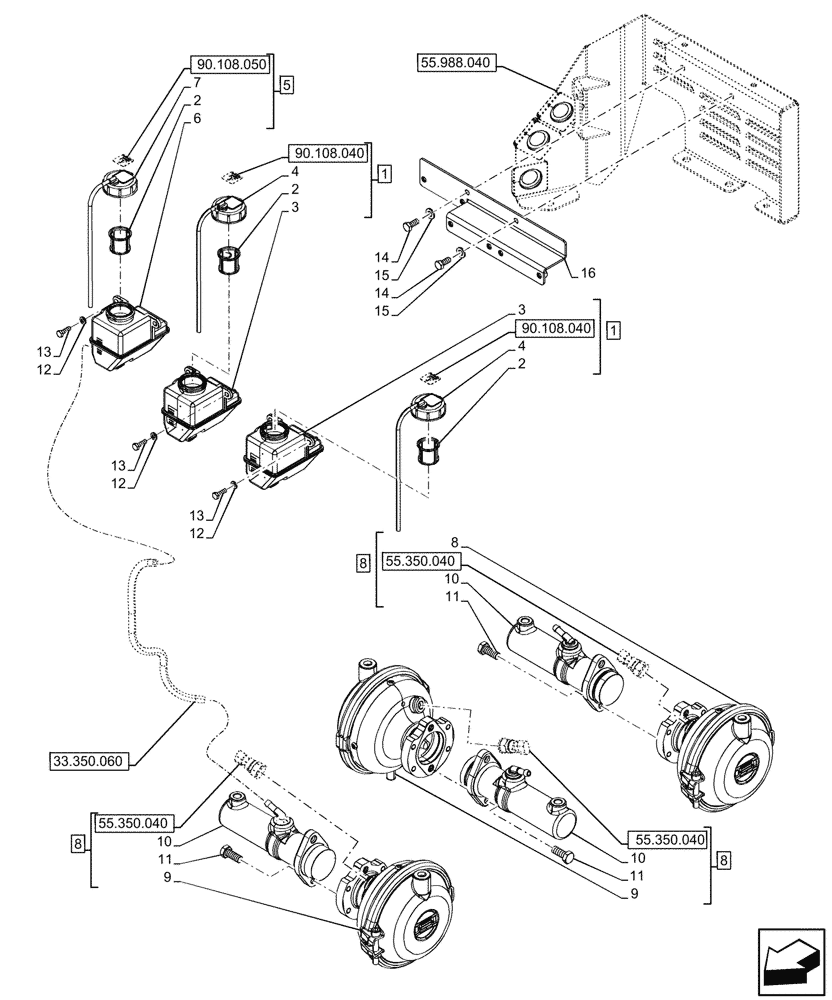

Схема запчастей Case IH OPTUM 270 CVT - (33.350.030) - VAR - 758035 - 758036 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE SERVO, BRAKE FLUID RESERVOIR (33) - BRAKES & CONTROLS
55.350.040
5
11
16
7
3
4
12
4
8
1
10
8
12
8
15
9
12
13
8
1
10
2
13
11
13
14
14
11
2
15
3
6
10
9
2
55.988.040
90.108.050
90.108.040
90.108.040
33.350.060
55.350.040
55.350.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47566727

BRAKE FLUID TANK

ASSY, Incl 2 (Qty 1), 3 (Qty 1), 4 (Qty 1)

2шт.

See also Reservoir Components in Figure 90.108.040

1шт.

2

87491693

FILTER

Brake Fluid Tank

3шт.

3

NSS

NOT SOLD SEPARAT

Reservoir, Incl in 1

2шт.

4

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

5

47586695

BRAKE FLUID TANK

ASSY, Incl 2 (Qty 1), 6 , 7

1шт.

See also Reservoir Components in Figure 90.108.050

1шт.

6

NSS

NOT SOLD SEPARAT

Reservoir, Incl in 5

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

1шт.

8

47563168

BRAKE BOOSTER

ASSY, Incl 9 (Qty 1), 10 (Qty 1), 11 (Qty 2)

3шт.

See also Booster Brake Components in Figure 55.350.040

1шт.

9

NSS

NOT SOLD SEPARAT

Converter, Incl in 8

3шт.

10

47403012

MASTER CYLINDER,48.3mm Stroke

3шт.

11

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

12

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

6шт.

13

16603725

Hex, M6 x 20mm, Cl 8.8, Full Thd

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

6шт.

14

16043480

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

15

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

16

47862720

BRACKET

1шт.
