(33.224.190) - VAR - 758044 - PNEUMATIC TRAILER BRAKE, W/ ANTILOCK BRAKING SYSTEM (ABS), LINE, UK

Запчасти Case IH OPTUM 270 CVT (33.224.190) - VAR - 758044 - PNEUMATIC TRAILER BRAKE, W/ ANTILOCK BRAKING SYSTEM (ABS), LINE, UK (33) - BRAKES & CONTROLS

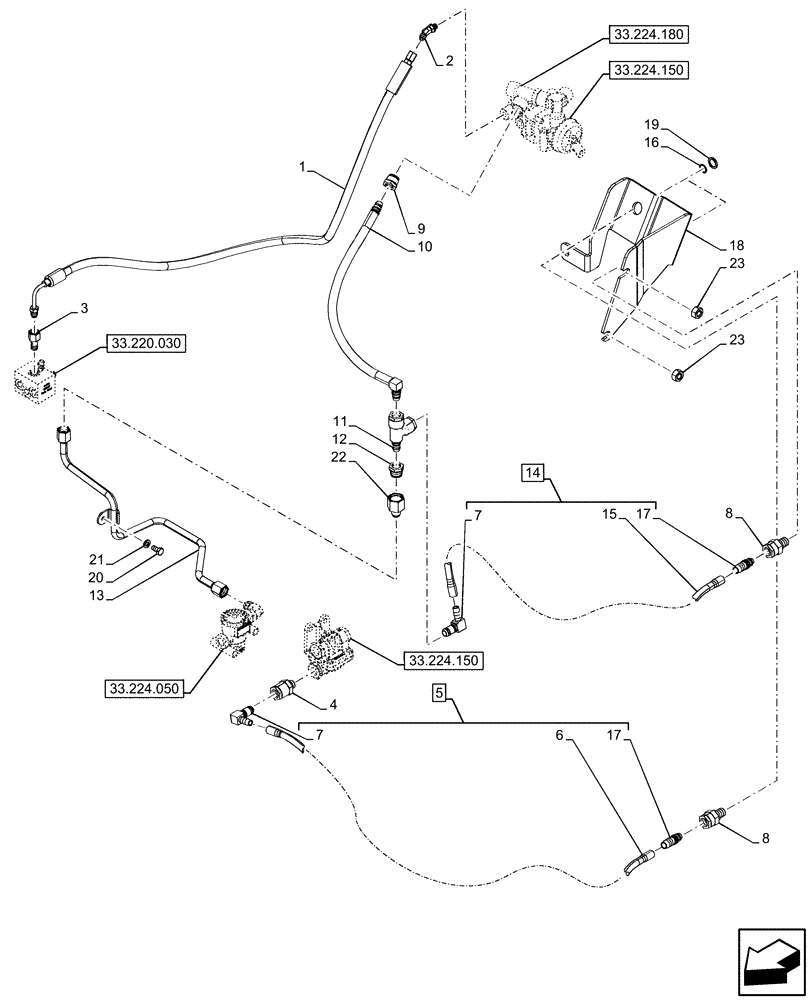

Схема запчастей Case IH OPTUM 270 CVT - (33.224.190) - VAR - 758044 - PNEUMATIC TRAILER BRAKE, W/ ANTILOCK BRAKING SYSTEM (ABS), LINE, UK (33) - BRAKES & CONTROLS
33.220.030
17
9
23
1
22
7
4
8
20
8
13
10
5
7
15
21
14
19
11
12
18
17
2
16
23
6
3
33.224.150
33.224.150
33.224.050
33.224.180
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47427541

PIPE

Brake

1шт.

2

87588084

HYD CONNECTOR,M10 x 1

1шт.

3

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

4

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

1шт.

5

47928202

HOSE,12mm ID x 680mm L

ASSY, DLCV to Yellow Coupler, Incl 6, 7, 17

1шт.

6

NSS

NOT SOLD SEPARAT

Tube, Incl in 5

1шт.

7

82038479

90 ELBOW,NG12 x 12mm D

3шт.

8

87679177

ADAPTER

2шт.

9

82034157

ADAPTER

1шт.

10

47786344

HOSE,16mm ID x 410mm L

Valve to DLCV

1шт.

11

84185248

HYD CONNECTOR

1шт.

12

82036156

FITTING,M22 x 1.5 x NG12

1шт.

13

47787307

PIPE

Air Trailer Brake with ABS

1шт.

14

47905504

HOSE,12mm ID x 585mm L

ASSY, DLCV to Red Coupler, Incl 7, 15, 17 (Qty 1)

1шт.

15

NSS

NOT SOLD SEPARAT

Tube, Incl in 14

1шт.

16

87679174

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

2шт.

17

87588082

HYD CONNECTOR,M12 x 1.5

3шт.

18

47904836

BRACKET

1шт.

19

87679173

BACK-UP RING,22.10mm, 25.80mm ID x 27.00mm OD x 2.50mm

2шт.

20

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

21

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

84425324

HYD CONNECTOR,M22 x 1.5 x 40mm L

1шт.

23

11702911

NUT,M12, Cl 8, ZND

2шт.
