(33.224.170) - VAR - 758044 - PNEUMATIC TRAILER BRAKE, W/O ANTILOCK BRAKING SYSTEM (ABS), LINE, UK

Запчасти Case IH OPTUM 270 CVT (33.224.170) - VAR - 758044 - PNEUMATIC TRAILER BRAKE, W/O ANTILOCK BRAKING SYSTEM (ABS), LINE, UK (33) - BRAKES & CONTROLS

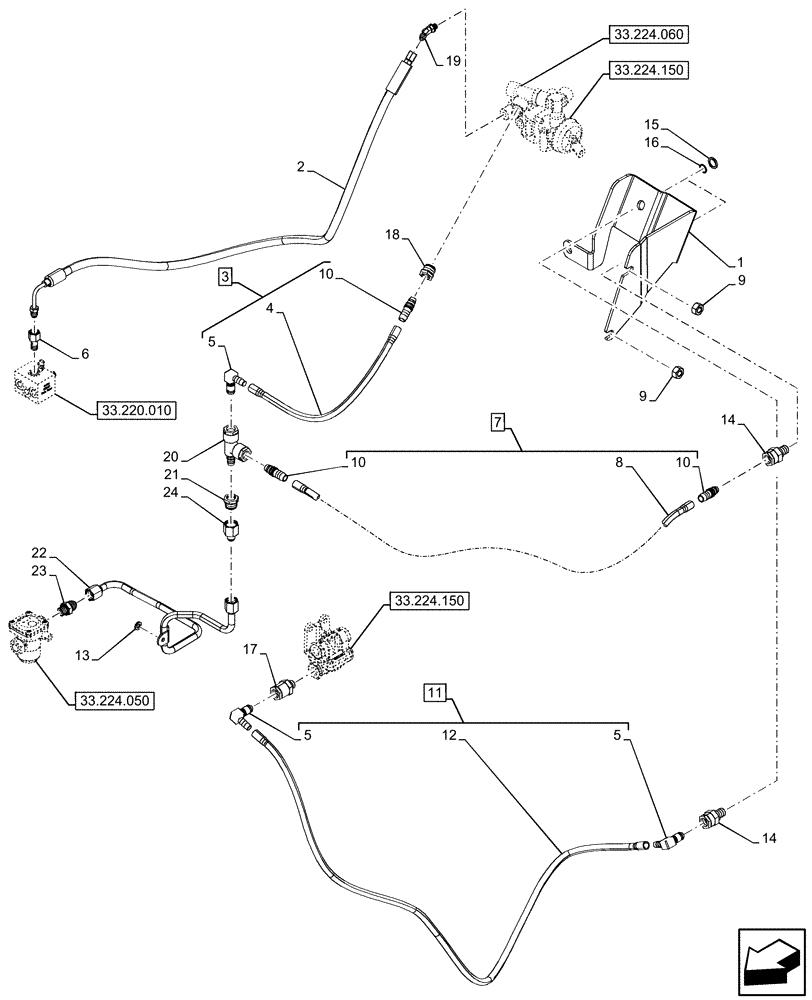

Схема запчастей Case IH OPTUM 270 CVT - (33.224.170) - VAR - 758044 - PNEUMATIC TRAILER BRAKE, W/O ANTILOCK BRAKING SYSTEM (ABS), LINE, UK (33) - BRAKES & CONTROLS
33.220.010
24
5
10
10
16
1
5
14
14
11
7
19
8
13
5
20
23
9
17
6
22
9
21
12
4
3
10
2
18
15
33.224.150
33.224.150
33.224.050
33.224.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47904836

BRACKET

1шт.

2

47427541

PIPE

Brake

1шт.

3

47782312

HOSE,12mm ID x 520mm L

ASSY, from Valve to Trailer Brake Valve, Incl 4, 5 (Qty 1), 10 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Tube, Incl in 3

1шт.

5

82038479

90 ELBOW,NG12 x 12mm D

3шт.

6

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

7

47905503

HOSE,12mm ID x 800mm L

ASSY, from Trailer Brake Valve to Red Coupler, Incl 8, 10 (Qty 2)

1шт.

8

NSS

NOT SOLD SEPARAT

Tube, Incl in 7

1шт.

9

11702911

NUT,M12, Cl 8, ZND

2шт.

10

87588082

HYD CONNECTOR,M12 x 1.5

3шт.

11

47928202

HOSE,12mm ID x 680mm L

ASSY, from Trailer Brake Valve to Yellow Coupler, Incl 5 (Qty 2), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Tube, Incl in 11

1шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

14

87679177

ADAPTER

2шт.

15

87679173

BACK-UP RING,22.10mm, 25.80mm ID x 27.00mm OD x 2.50mm

2шт.

16

87679174

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

2шт.

17

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

1шт.

18

82034157

ADAPTER

1шт.

19

87588084

HYD CONNECTOR,M10 x 1

1шт.

20

84185248

HYD CONNECTOR

1шт.

21

82036156

FITTING,M22 x 1.5 x NG12

1шт.

22

47774330

PIPE

from Pressure Limiting Valve to Trailer Brake Valve

1шт.

23

84382417

HYD CONNECTOR,M16 x 1.5 x 38mm L

1шт.

24

84425324

HYD CONNECTOR,M22 x 1.5 x 40mm L

1шт.
