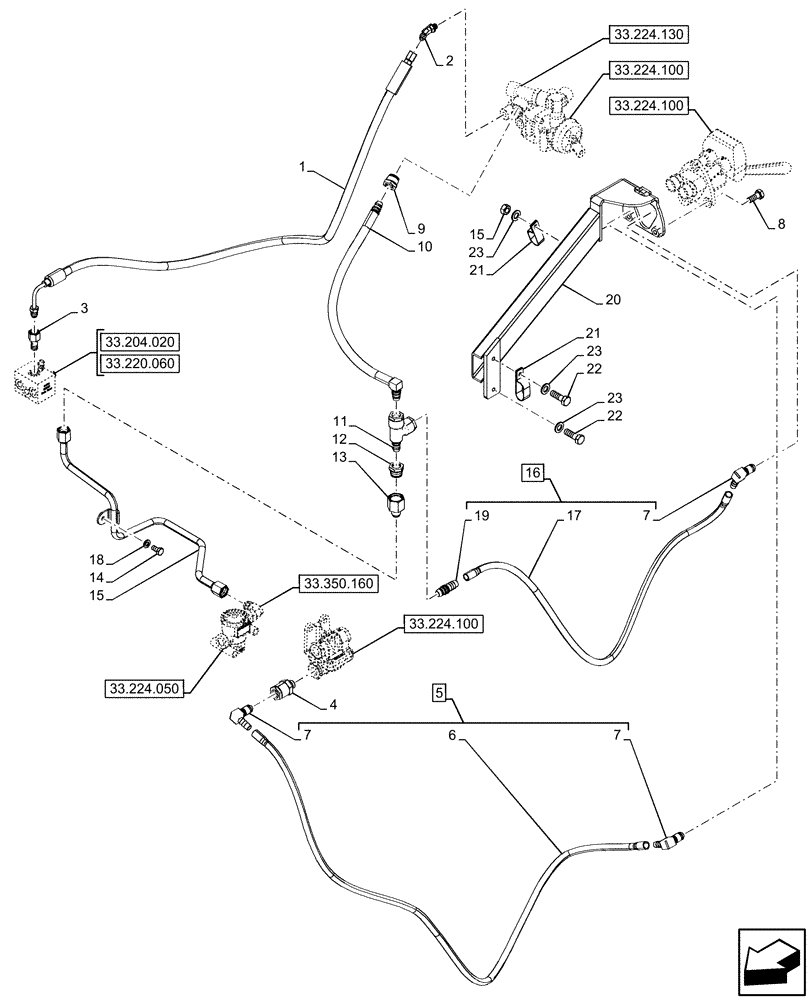

Запчасти Case IH OPTUM 270 CVT (33.224.140) - VAR - 758041, 758042 - PNEUMATIC TRAILER BRAKE, W/ ANTILOCK BRAKING SYSTEM (ABS), LINE, ITALY (33) - BRAKES & CONTROLS

1

47427541

PIPE

Brake

1шт.

2

87588084

HYD CONNECTOR,M10 x 1

1шт.

3

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

4

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

1шт.

5

47774411

HOSE

ASSY, DLCV to Yellow Coupler, Incl 6, 7 (Qty 2)

1шт.

6

NSS

NOT SOLD SEPARAT

Tube, Incl in 5

1шт.

7

82038479

90 ELBOW,NG12 x 12mm D

3шт.

8

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

9

82034157

ADAPTER

1шт.

10

47786344

HOSE,16mm ID x 410mm L

Valve to DLCV

1шт.

11

84185248

HYD CONNECTOR

1шт.

12

82036156

FITTING,M22 x 1.5 x NG12

1шт.

13

84425324

HYD CONNECTOR,M22 x 1.5 x 40mm L

1шт.

14

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

15

43362

NUT,M8 x 1.25, Cl 10

1шт.

16

47786324

HOSE

ASSY, DLCV to Red Coupler, Incl 7 (Qty 1), 16, 17

1шт.

17

NSS

NOT SOLD SEPARAT

Tube, Incl in 16

1шт.

18

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

87588082

HYD CONNECTOR,M12 x 1.5

1шт.

20

47786048

BRACKET

1шт.

21

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.
