(33.224.090) - VAR - 758038, 758039 - PNEUMATIC TRAILER BRAKE, W/ ANTILOCK BRAKING SYSTEM (ABS), LINE

Запчасти Case IH OPTUM 270 CVT (33.224.090) - VAR - 758038, 758039 - PNEUMATIC TRAILER BRAKE, W/ ANTILOCK BRAKING SYSTEM (ABS), LINE (33) - BRAKES & CONTROLS

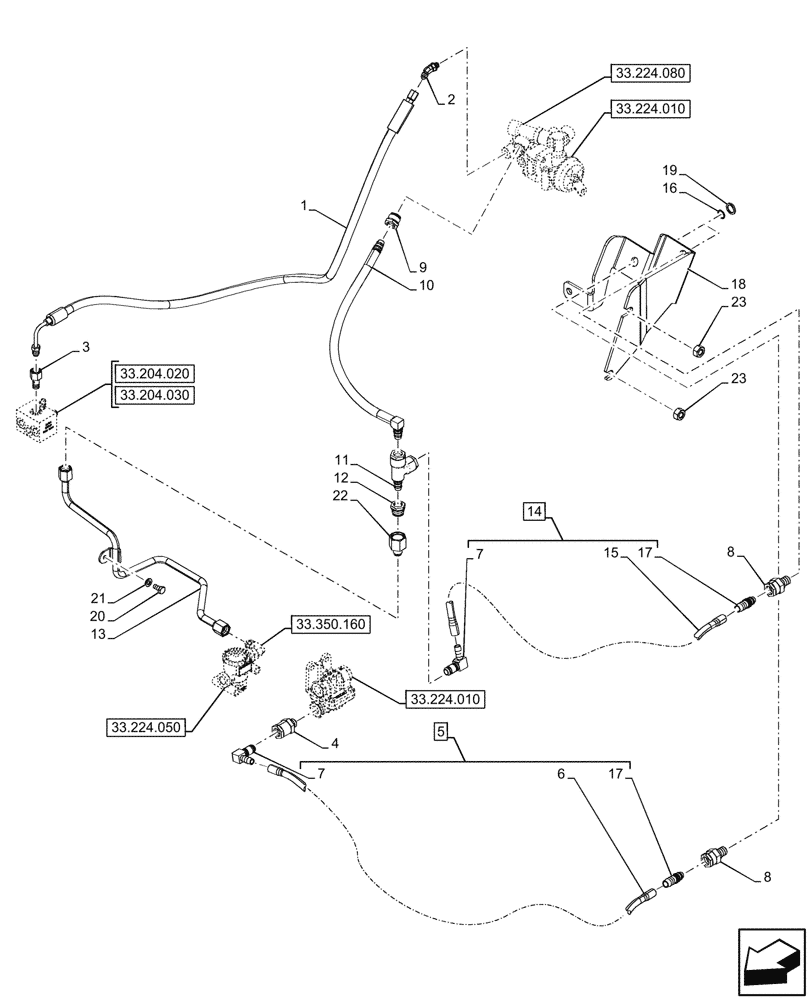

Схема запчастей Case IH OPTUM 270 CVT - (33.224.090) - VAR - 758038, 758039 - PNEUMATIC TRAILER BRAKE, W/ ANTILOCK BRAKING SYSTEM (ABS), LINE (33) - BRAKES & CONTROLS
33.204.020
22
2
17
9
16
3
8
10
12
14
23
4
18
19
13
17
7
7
23
20
11
21
8
15
1
5
6
33.224.010
33.224.010
33.350.160
33.204.030
33.224.050
33.224.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47427541

PIPE

Brake

1шт.

2

87588084

HYD CONNECTOR,M10 x 1

1шт.

3

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

4

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

1шт.

5

47928202

HOSE,12mm ID x 680mm L

ASSY, DLCV to Yellow Coupler, Incl 6, 7, 17 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

Tube, Incl in 5

1шт.

7

82038479

90 ELBOW,NG12 x 12mm D

3шт.

8

87678128

ADAPTER

2шт.

9

82034157

ADAPTER

1шт.

10

47786344

HOSE,16mm ID x 410mm L

Valve to DLCV

1шт.

11

84185248

HYD CONNECTOR

1шт.

12

82036156

FITTING,M22 x 1.5 x NG12

1шт.

13

47787307

PIPE

Air Trailer Brake with ABS

1шт.

14

47905504

HOSE,12mm ID x 585mm L

ASSY, DLCV to Red Coupler, Incl 7 (Qty 1), 15, 17 (Qty 1)

1шт.

15

NSS

NOT SOLD SEPARAT

Tube, Incl in 14

1шт.

16

87678125

O-RING,2mm Thk x 14mm ID, 70 Duro

2шт.

17

87588082

HYD CONNECTOR,M12 x 1.5

3шт.

18

47954621

BRACKET

1шт.

19

87678124

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

2шт.

20

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

21

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

84425324

HYD CONNECTOR,M22 x 1.5 x 40mm L

1шт.

23

11702911

NUT,M12, Cl 8, ZND

2шт.
