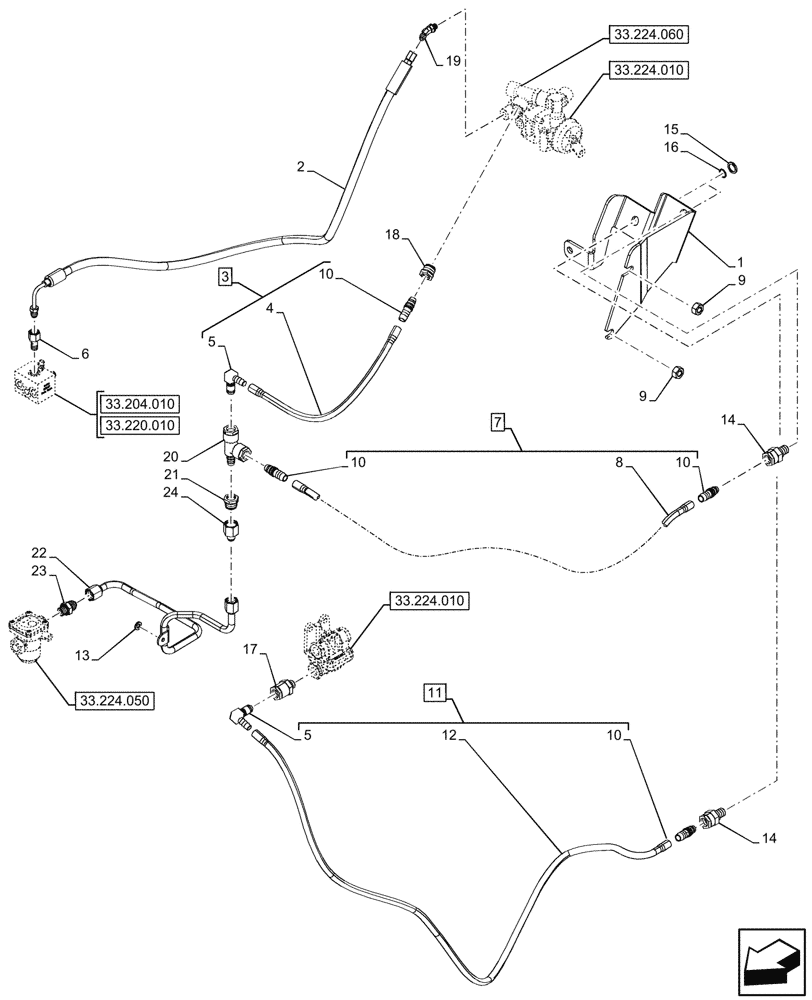

Запчасти Case IH OPTUM 270 CVT (33.224.070) - VAR - 758038, 758039 - PNEUMATIC TRAILER BRAKE, W/O ANTILOCK BRAKING SYSTEM (ABS), LINE (33) - BRAKES & CONTROLS

1

47954621

BRACKET

1шт.

2

47427541

PIPE

Brake

1шт.

3

47782312

HOSE,12mm ID x 520mm L

ASSY, from Valve to Trailer Brake Valve, Incl 4, 5 (Qty 1), 10 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Tube, Incl in 3

1шт.

5

82038479

90 ELBOW,NG12 x 12mm D

3шт.

6

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

7

47905503

HOSE,12mm ID x 800mm L

ASSY, from Trailer Brake Valve to Red Coupler, Incl 8, 10 (Qty 2)

1шт.

8

NSS

NOT SOLD SEPARAT

Tube, Incl in 7

1шт.

9

11702911

NUT,M12, Cl 8, ZND

2шт.

10

87588082

HYD CONNECTOR,M12 x 1.5

3шт.

11

47928202

HOSE,12mm ID x 680mm L

ASSY, from Trailer Brake Valve to Yellow Coupler, Incl 5 (Qty 2), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Tube, Incl in 11

1шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

14

87678128

ADAPTER

2шт.

15

87678124

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

2шт.

16

87678125

O-RING,2mm Thk x 14mm ID, 70 Duro

2шт.

17

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

1шт.

18

82034157

ADAPTER

1шт.

19

87588084

HYD CONNECTOR,M10 x 1

1шт.

20

84185248

HYD CONNECTOR

1шт.

21

82036156

FITTING,M22 x 1.5 x NG12

1шт.

22

47774330

PIPE

from Pressure Limiting Valve to Trailer Brake Valve

1шт.

23

84382417

HYD CONNECTOR,M16 x 1.5 x 38mm L

1шт.

24

84425324

HYD CONNECTOR,M22 x 1.5 x 40mm L

1шт.
