Запчасти Case IH OPTUM 270 CVT (33.224.060) - VAR - 758038, 758039 - PNEUMATIC TRAILER BRAKE, W/O ANTILOCK BRAKING SYSTEM (ABS), LINE (33) - BRAKES & CONTROLS

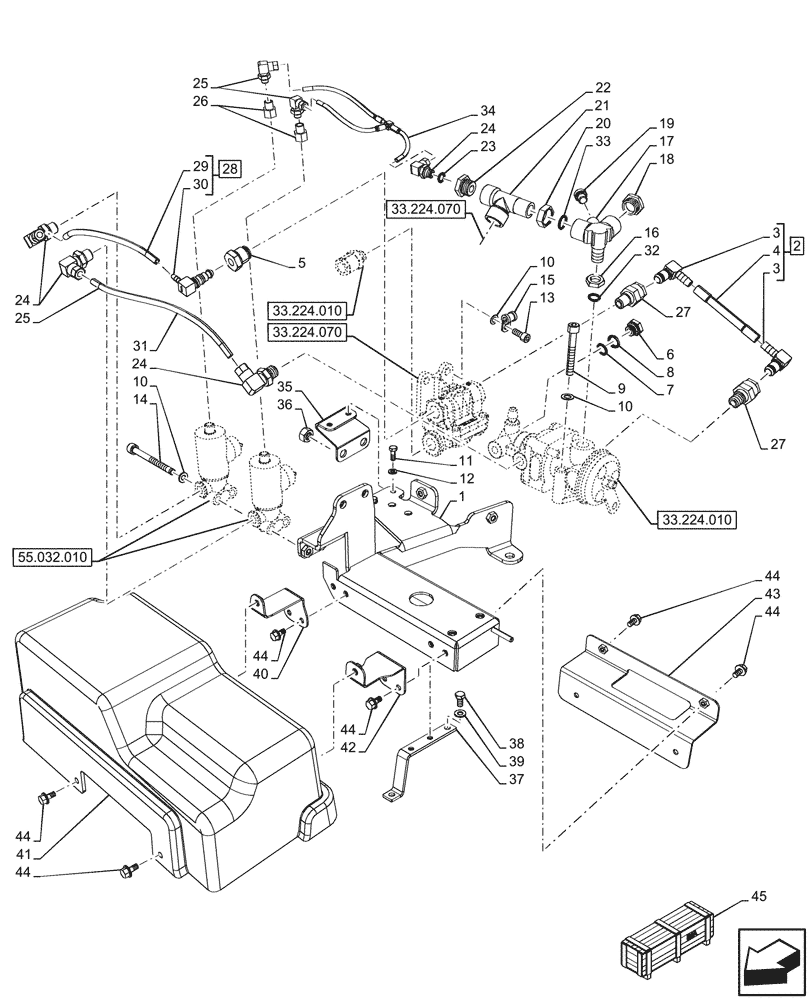

Схема запчастей Case IH OPTUM 270 CVT - (33.224.060) - VAR - 758038, 758039 - PNEUMATIC TRAILER BRAKE, W/O ANTILOCK BRAKING SYSTEM (ABS), LINE (33) - BRAKES & CONTROLS
33.224.010
35
16
44
2
10
38
37
10
14
41
23
17
25
5
31
4
44
3
24
24
6
39
11
26
3
27
40
25
45
36
18
9
7
19
13
1
24
21
43
8
30
12
29
44
10
28
15
44
22
27
33
20
42
44
34
32
44
33.224.070
33.224.070
55.032.010
33.224.010

Артикул

Название

Примечание

Количество

1

47935636

BRACKET

1шт.

2

47935642

TUBE

ASSY, DLCV to 2 Way Valve, Incl 3, 4

1шт.

3

87588080

90 ELBOW,NG8 x 12mm D

2шт.

4

NSS

NOT SOLD SEPARAT

Tube, Incl in 2

1шт.

5

87588079

HYD CONNECTOR,M16 x 1.5

1шт.

6

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

M16

1шт.

7

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

8

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

9

14302221

HEX SOC SCREW,M8 x 55mm, Cl 8.8

2шт.

10

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

6шт.

11

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

12

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

13

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

14307124

SCREW,M8 x 1.25 x 90mm, Cl 8.8

2шт.

15

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

1шт.

16

82019796

LOCK NUT

1шт.

17

87588083

HYD CONNECTOR,M16 x 1.5

1шт.

18

82014913

PLUG,M22 x 1.5 x 9mm L

1шт.

19

970659

PLUG,Hex, M12 x 1.5 x 17.3mm L

M12 x 1.5

1шт.

20

82039004

LOCK NUT

1шт.

21

87714794

HYD CONNECTOR,M22 x 1.5

1шт.

22

87570885

ADAPTER

1шт.

23

82019799

O-RING

1шт.

24

87678126

ELBOW,Hex, M12 x 1.4 x 28mm

4шт.

25

87678122

HYD CONNECTOR,M10 x 1

2шт.

26

87678127

HYD CONNECTOR,M10 x 1, M12 x 1.5

2шт.

27

87678128

ADAPTER

2шт.

28

47782313

HOSE,6mm ID x 140mm L

ASSY, Solenoid to 2 Way Valve, Incl 29, 30

1шт.

29

NSS

NOT SOLD SEPARAT

Tube, Incl in 28

1шт.

30

82036158

ELBOW,9.1mm OD x 31.5mm, 6x1Tube

1шт.

31

47935643

TUBE

Solenoid to Check Valve

1шт.

32

82019797

O-RING,2.5mm Thk x 14mm ID

1шт.

33

82039003

O-RING

1шт.

34

47935644

TUBE

Feed to Solenoids

1шт.

35

47814735

BRACKET

less Power Beyond

1шт.

36

11702911

NUT,M12, Cl 8, ZND

less Power Beyond

2шт.

37

47814736

BRACKET

with Power Beyond

1шт.

38

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

39

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

40

47935649

BRACKET

RH Rear

1шт.

41

47935656

COVER

Valve Assembly

1шт.

42

47935653

BRACKET

LH Rear

1шт.

43

47935646

BRACKET

Cover Front

1шт.

44

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

10шт.

45

719344124

DIA KIT, TRACTOR

Isobus CL 2 RR Breakaway Socket 11873, Incl 35 - 39

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

45

718264044

DIA KIT, TRACTOR

Pneumatic Air Brake Base Kit, Incl 35 - 39

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 48
