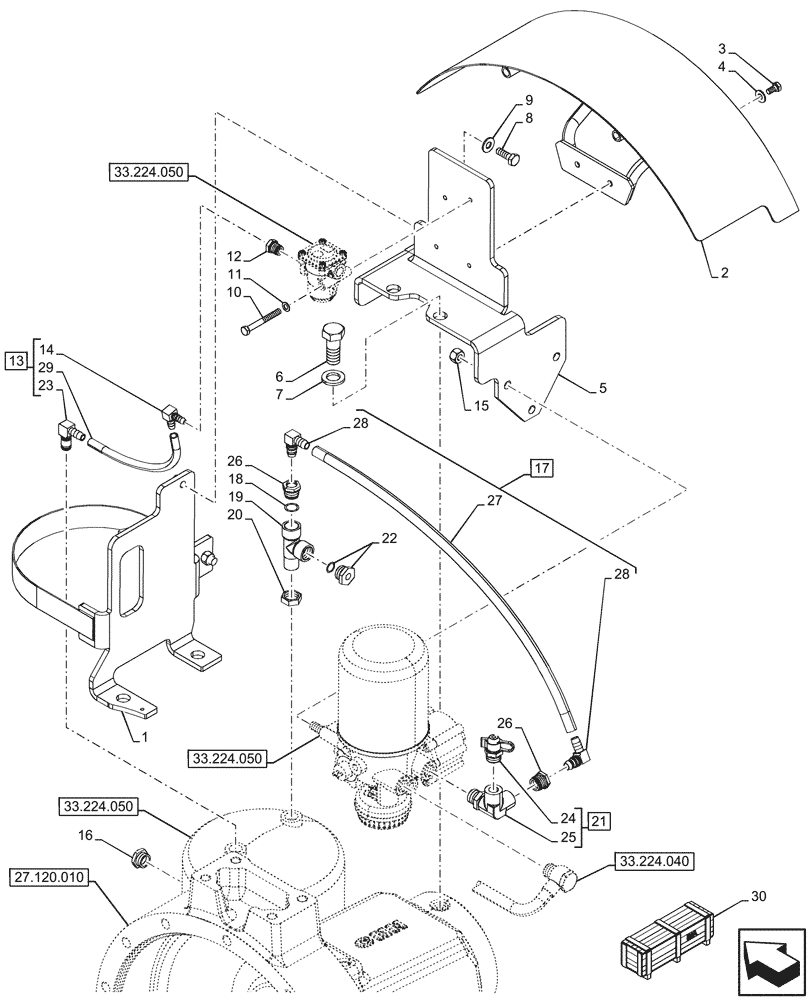

Запчасти Case IH OPTUM 270 CVT (33.224.030) - VAR - 758038, 758039, 758041, 758042, 758044 - BRAKE, W/O ANTILOCK BRAKING SYSTEM (ABS), AIR RESERVOIR, LINE (33) - BRAKES & CONTROLS

1

47551169

BRACKET

1шт.

2

47646380

GUARD

1шт.

3

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

4

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

5

47551162

BRACKET

1шт.

6

11383621

BOLT,Hex, M20 x 1.5 x 50, 8.8, Full Thd

2шт.

7

10520431

WASHER,21mm ID x 35mm OD x 4mm Thk

2шт.

8

11106534

SCREW,Hex, M10 x 32mm, Cl 10.9

1шт.

9

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

10

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

11

12601379

WAVE WASHER,Wave, M8.4

1шт.

12

87588079

HYD CONNECTOR,M16 x 1.5

1шт.

13

47634984

PIPE

ASSY, from Reservoir to Valve, Incl 14, 23, 29

1шт.

14

87588080

90 ELBOW,NG8 x 12mm D

1шт.

15

10719311

NUT,M12 x 1.75, Cl 8

3шт.

16

82014913

PLUG,M22 x 1.5 x 9mm L

1шт.

17

47811587

HOSE,16mm ID 640mm L

ASSY, from Dryer to Reservoir, Incl 27, 28

1шт.

18

82039003

O-RING

1шт.

19

87714794

HYD CONNECTOR,M22 x 1.5

1шт.

20

82039004

LOCK NUT

1шт.

21

87345151

HYD CONNECTOR,M22 x 1.5

ASSY, Incl 24, 25

1шт.

22

47911422

ADAPTER

1шт.

23

82038479

90 ELBOW,NG12 x 12mm D

1шт.

24

87345096

FITTING,M16 x 1.5 x M22 x 1.5

1шт.

25

87345149

ELBOW UNION,M22 x 1.5

1шт.

26

82034157

ADAPTER

2шт.

27

NSS

NOT SOLD SEPARAT

Tube, Incl in 17

1шт.

28

82038453

HYD CONNECTOR,232 NG12 x 16mm D

2шт.

29

NSS

NOT SOLD SEPARAT

Tube, Incl in 13

1шт.

30

718264044

DIA KIT, TRACTOR

Pneumatic Air Brake Base Kit, Incl 1 - 29

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
