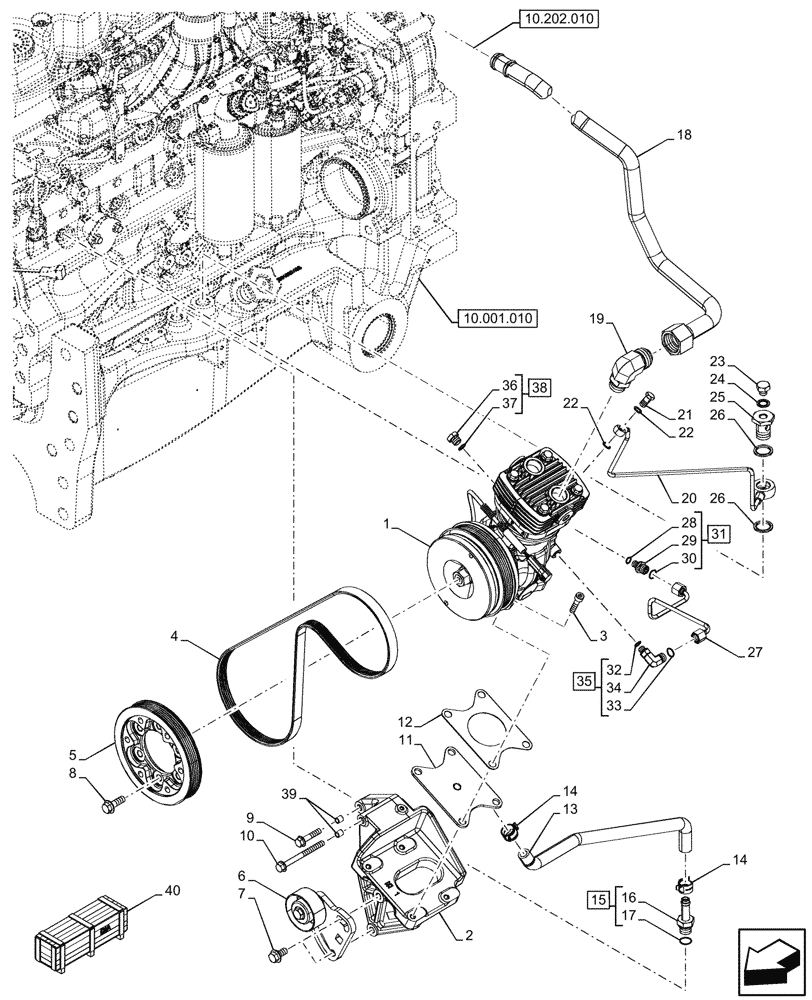

Запчасти Case IH OPTUM 270 CVT (33.224.020) - VAR - 758038, 758039, 758041, 758042, 758044 - PNEUMATIC TRAILER BRAKE, W/O ANTILOCK BRAKING SYSTEM (ABS), COMPRESSOR (33) - BRAKES & CONTROLS

1

47519512

AIR COMPRESSOR,12 V

1шт.

2

47924342

SUPPORT

1шт.

3

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

4

47560879

BELT,18mm W x 1270mm L, 5 Ribs

1шт.

5

47579871

PULLEY

1шт.

6

47560878

TENSIONER

1шт.

7

16288324

FLANGE BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

8

16288524

FLANGE BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

9

86624973

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

1шт.

10

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

2шт.

11

47916722

ADAPTER

1шт.

12

47638570

GASKET,4x12mm HD, 64mm ID x 1mm Thk

1шт.

13

47599435

PIPE

from Compressor to Engine

1шт.

14

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

15

47916720

HYD CONNECTOR,M18 x 1.5 x 62.9mm L

ASSY, Incl 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

1шт.

17

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

18

47767705

PIPE

Air Intake

1шт.

19

84513791

FITTING,M26 x 1.5 x 52.5mm L

1шт.

20

47820246

PIPE

Oil Drain

1шт.

21

11904111

BANJO BOLT,M10 x 1 x 19mm

1шт.

22

10260160

SEAL,M10.2 x 14 x 1

2шт.

23

15858331

BOLT,Hex, M12 x 1.75 x 12mm, Cl 10.9, Full Thd

1шт.

24

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

M12

1шт.

25

47827612

BANJO BOLT,Hex, 7/8-14 x 32.5mm

1шт.

26

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

27

47761771

PIPE

Lube Oil Supply

1шт.

28

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

29

NSS

NOT SOLD SEPARAT

Connector, Incl in 31

1шт.

30

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

31

87016907

HYD CONNECTOR,9/16"-18 ORFS x M10 x 1 ORB

ASSY, Incl 28 - 30

1шт.

32

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

33

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

34

NSS

NOT SOLD SEPARAT

Elbow, Incl in 35

1шт.

35

5185047

ELBOW,90 Deg, 9/16-18 ORFS x M10 x 1 ORB

ASSY, Incl 32 - 34

1шт.

36

NSS

NOT SOLD SEPARAT

Plug, Incl in 38

1шт.

37

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

38

1637351

PLUG,Hex Skt, M10 x 1 x 12mm

ASSY, Incl 36, 37

1шт.

39

47915217

BUSHING,10.9mm OD x 13.5mm L

2шт.

40

718264044

DIA KIT, TRACTOR

Pneumatic Air Brake Base Kit, Incl 1 - 39

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
