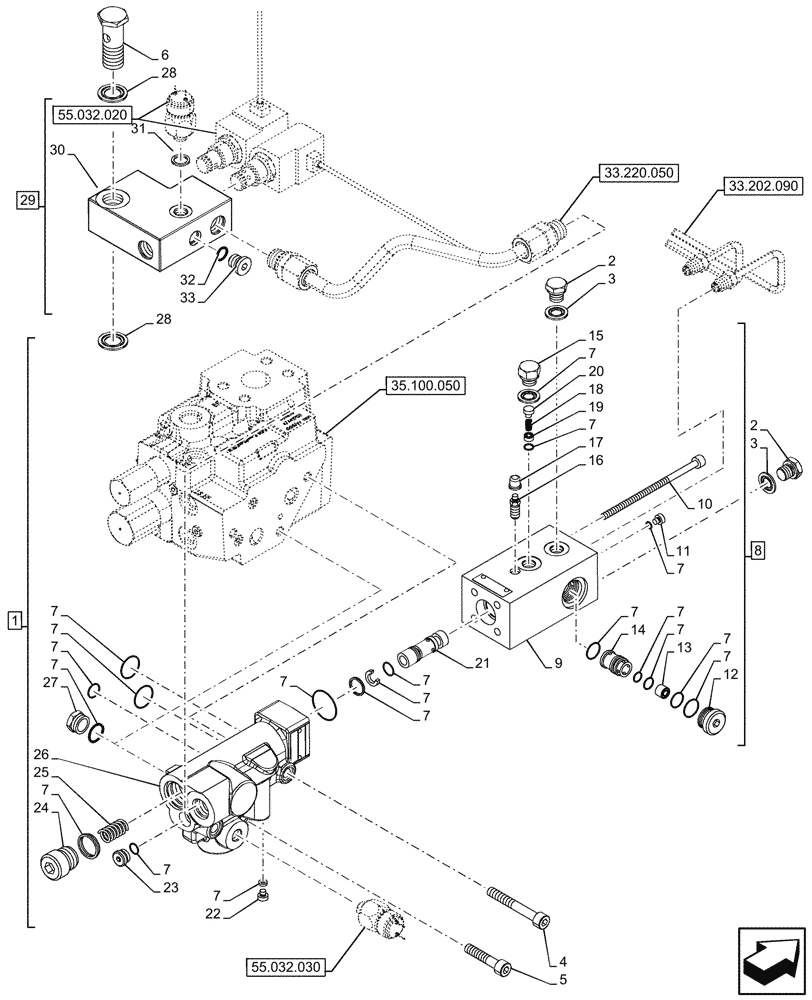

Запчасти Case IH OPTUM 270 CVT (33.220.060) - VAR - 758042 - TRAILER BRAKE VALVE, W/ ANTILOCK BRAKING SYSTEM (ABS), ITALY (33) - BRAKES & CONTROLS

1

47584632

BRAKE VALVE

ASSY, Incl 7 - 27

1шт.

2

47131496

PLUG,Hex, M12 x 1

2шт.

3

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

4

14308920

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

5

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

6

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

7

47584642

SEAL KIT

1шт.

8

47584639

BRAKE VALVE

ASSY, Incl 7 (Qty only for PN 47584639 servicing), 9 - 21

1шт.

9

NSS

NOT SOLD SEPARAT

Body, Incl in 8

1шт.

10

NSS

NOT SOLD SEPARAT

Screw, Incl in 8

4шт.

11

NSS

NOT SOLD SEPARAT

Adapter, Incl in 8

1шт.

12

NSS

NOT SOLD SEPARAT

Adapter, Incl in 8

1шт.

13

NSS

NOT SOLD SEPARAT

Valve, Incl in 8

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 8

1шт.

15

NSS

NOT SOLD SEPARAT

Adapter, Incl in 8

1шт.

16

NSS

NOT SOLD SEPARAT

Bleeding Screw, Incl in 8

1шт.

17

NSS

NOT SOLD SEPARAT

Cap, Incl in 8

1шт.

18

NSS

NOT SOLD SEPARAT

Spring, Incl in 8

1шт.

19

NSS

NOT SOLD SEPARAT

Dowel, Incl in 8

1шт.

20

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

1шт.

21

NSS

NOT SOLD SEPARAT

Valve, Incl in 8

1шт.

22

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

26

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

28

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

29

47581244

MANIFOLD

ASSY, Incl 30 - 33

1шт.

See also Valve Components in Figure 55.032.020

1шт.

30

NSS

NOT SOLD SEPARAT

Manifold, Incl in 29

1шт.

31

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

32

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

33

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.
