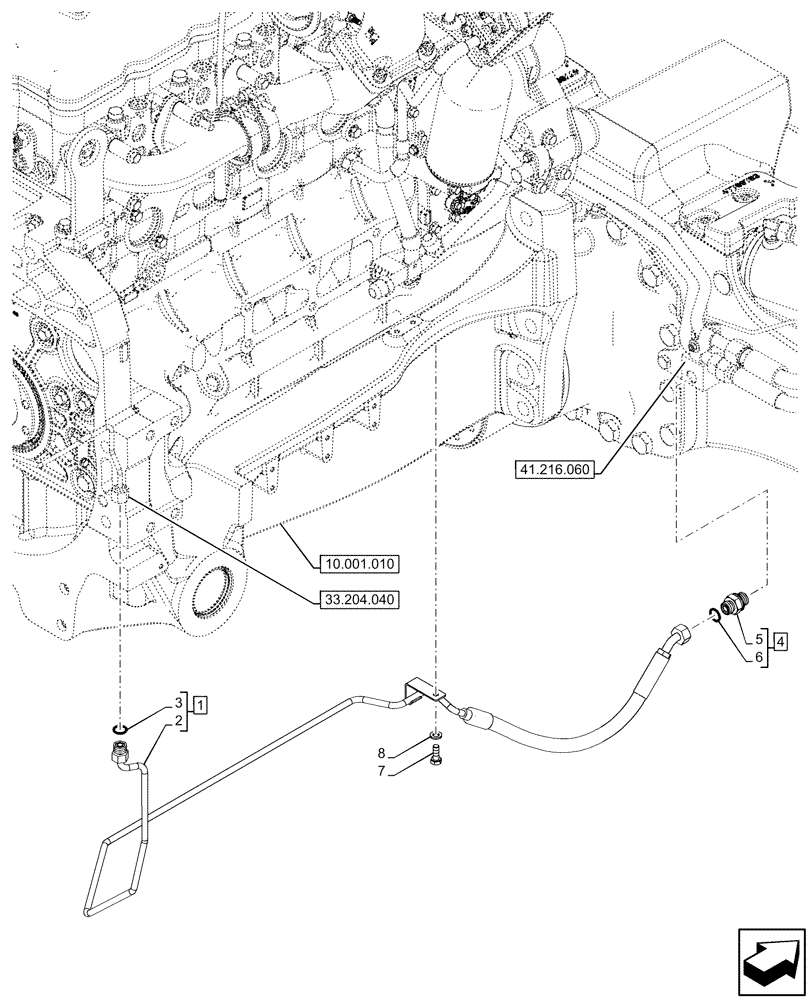

Запчасти Case IH OPTUM 270 CVT (33.204.030) - VAR - 758796 - FRONT AXLE, W/ FRONT BRAKES, BRAKE LINE (33) - BRAKES & CONTROLS

1

47776301

PIPE

ASSY, front Brake, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

47448751

HYD CONNECTOR,M18 x 1.5 ORB, 11/16" - 16 ORFS

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

6

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.
