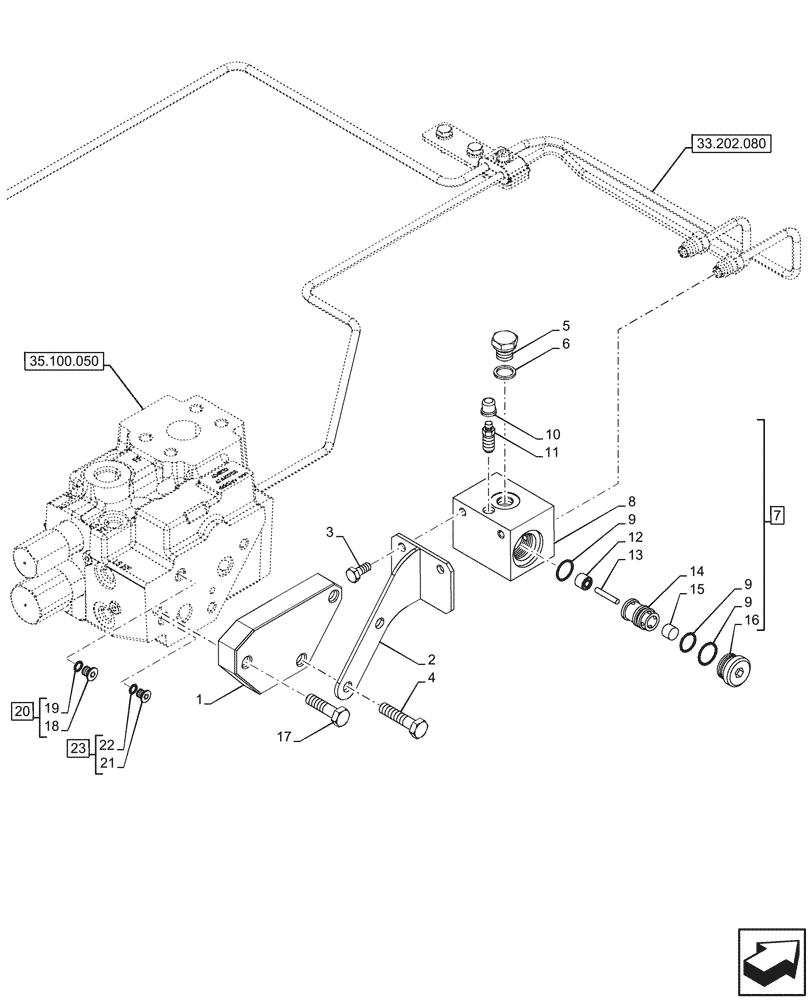

Запчасти Case IH OPTUM 270 CVT (33.204.010) - VAR - 758038, 758041 - PILOT VALVE, W/O ANTILOCK BRAKING SYSTEM (ABS) (33) - BRAKES & CONTROLS

1

87316882

COVER

1шт.

2

47745138

BRACKET

1шт.

3

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

4

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

5

47131496

PLUG,Hex, M12 x 1

1шт.

6

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

7

87323483

HEAD

ASSY, Incl 8 - 16

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 7

1шт.

9

87323116

SEAL KIT

1шт.

10

NSS

NOT SOLD SEPARAT

Cap, Incl in 7

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Incl in 7

1шт.

12

NSS

NOT SOLD SEPARAT

Dowel, Incl in 7

1шт.

13

NSS

NOT SOLD SEPARAT

Giude, Incl in 7

1шт.

14

NSS

NOT SOLD SEPARAT

Piston, Incl in 7

1шт.

15

NSS

NOT SOLD SEPARAT

Dowel, Incl in 7

1шт.

16

NSS

NOT SOLD SEPARAT

Adaptor, Incl in 7

1шт.

17

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 20

1шт.

19

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

20

86598046

PLUG,M18 x 1.5 ORB

ASSY, Incl 18, 19

1шт.

21

NSS

NOT SOLD SEPARAT

Plug, Incl in 23

1шт.

22

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

23

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

ASSY, Incl 21, 22

1шт.
