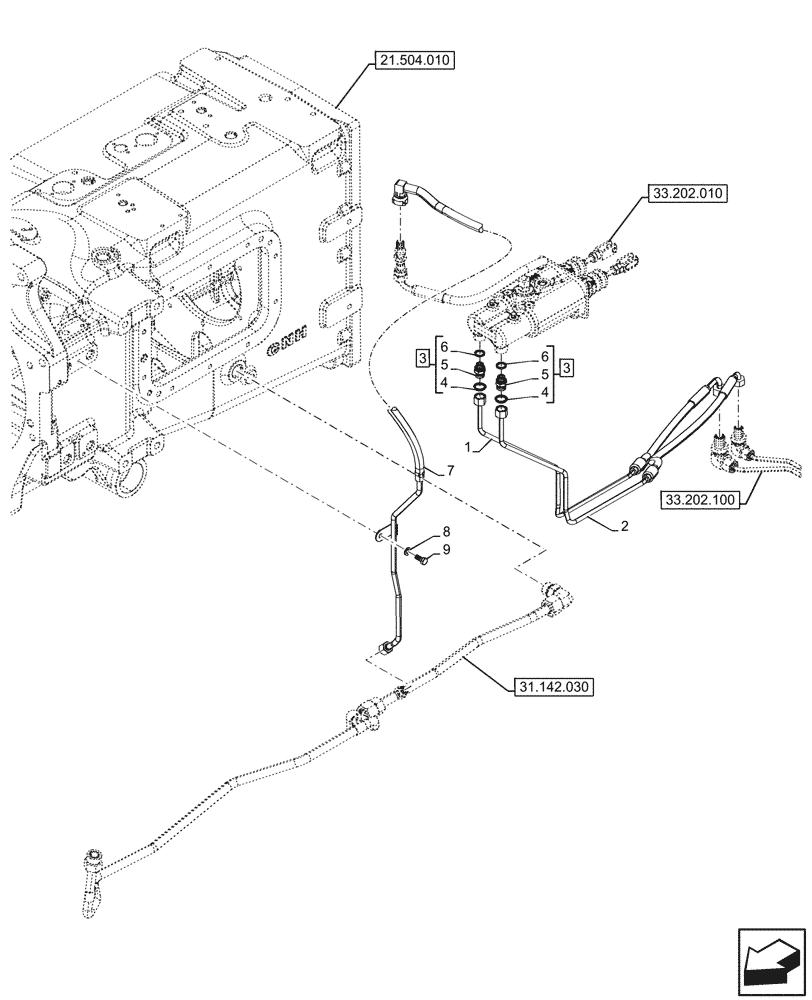

Запчасти Case IH OPTUM 270 CVT (33.202.030) - VAR - 391149, 758650 - BRAKE LINE, W/O ANTILOCK BRAKING SYSTEM (ABS), W/ FRONT PTO (33) - BRAKES & CONTROLS

1

47906914

TUBE

RH Brake

1шт.

2

47906916

TUBE

LH Brake

1шт.

3

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

2шт.

4

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

6

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

2шт.

7

47787244

BRAKE LINE

Brake RH, Return

1шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.
