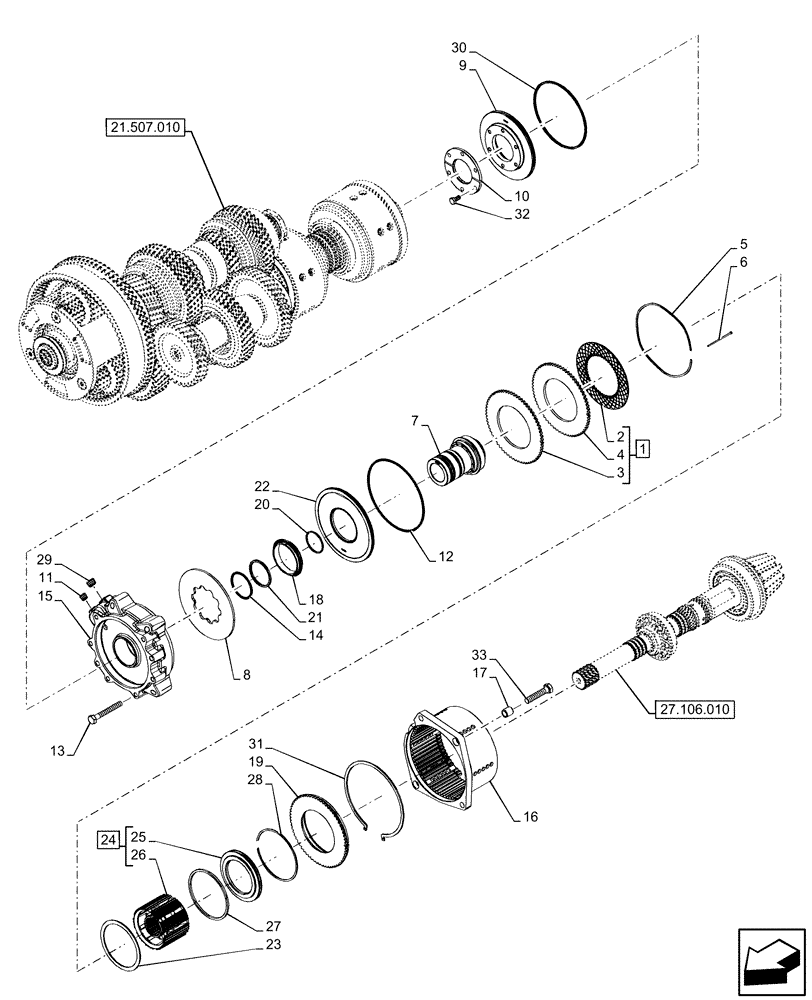

Запчасти Case IH OPTUM 270 CVT (33.110.030) - VAR - 758792 - PARKING LOCK, BRAKE DISC (33) - BRAKES & CONTROLS

1

47780526

CLUTCH PACK

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Friction Disk, Incl 1, 92.66mm ID x 154mm OD x 2.5mm Thk

9шт.

3

NSS

NOT SOLD SEPARAT

Steel Disk, Incl in 1, 99mm ID x 167.5mm OD x 4.7mm Thk

6шт.

4

NSS

NOT SOLD SEPARAT

Steel Disk, Incl in 1, 99mm ID x 167.5mm OD x 5mm Thk

3шт.

5

81878948

SPRING,162.58mm ID

9шт.

6

47780520

PIN,5mm OD x 70mm L

Anti-Rotating Separating Spring

1шт.

7

47780539

HUB

1шт.

8

47127780

BELLEVILLE SPRING,75mm ID x 161.4mm OD x 4.4mm Thk

4шт.

9

47780541

PISTON

1шт.

10

47695438

LOCKING RING,55.2mm ID x 105.5mm OD x 6mm Thk

2шт.

11

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

1шт.

12

14462281

O-RING,6.237" ID x 0.103" Width

1шт.

13

14234630

SCREW,Hex, M10 x 1.25 x 80mm, Cl 10.9

6шт.

14

238-5140

O-RING,0.103" Thk x 2.237" ID, -140, Cl 5, 75 Duro

1шт.

15

47780476

SUPPORT

Parking, Support

1шт.

16

47780482

CLUTCH HOUSING

Housing, Clutch

1шт.

17

47780503

BUSHING,12.2mm ID x 17mm OD x 18mm L

Bushing

2шт.

18

47780500

SPACER,68.1mm ID x 84mm OD x 14.7mm L

Spacer

1шт.

19

47780488

THRUST PLATE,98mm ID x 170mm OD x 20mm Thk

Plate

1шт.

20

5175983

SEALING RING,46mm ID

1шт.

21

47753600

RING,55mm OD x 3.4mm Thk

Piston

1шт.

22

47796169

PLATE

Driving Clutches

1шт.

23

47780505

THRUST WASHER,10mm ID x 116mm OD x 2mm Thk

1шт.

24

47797548

HUB

ASSY, Incl 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

Seal, Incl in 24

1шт.

26

47780502

HUB

1шт.

27

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

28

47799110

LOCKING RING,116.9mm ID x 120.3mm OD x 1.5mm Thk

1шт.

29

10269601

PLUG,M16 x 1.5

1шт.

30

47801466

RING,148.4mm OD x 3.4mm Thk

1шт.

31

47854595

SNAP RING,M177, Ext

1шт.

32

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

6шт.

33

47884731

SCREW,Hex, M12 x 1.25 x 60mm L, Cl 10.9

4шт.
