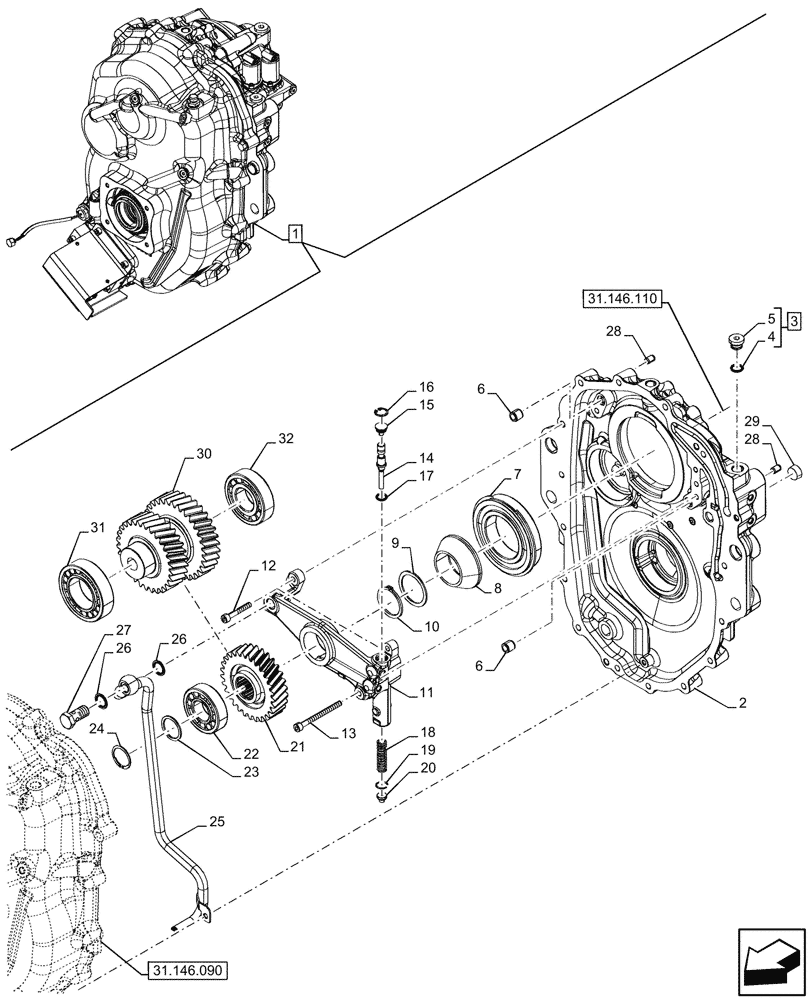

Запчасти Case IH OPTUM 270 CVT (31.146.100) - VAR - 758770, 758771, 759305, 759306 - FRONT PTO, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF

1

47894653

FRONT PTO ASSY

CW, Incl 2 - 32

1шт.

See Front PTO Components also in Figure 31.146.080, 31.146.090, 31.146.110, 31.146.120, 55.049.020

1шт.

2

47839327

HOUSING

Rear

1шт.

3

1009480

PLUG,Hex, M18 x 1.5

ASSY, Incl 4, 5

1шт.

4

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 3

1шт.

6

47829198

BUSHING,11mm ID x 16mm OD x 15mm L

2шт.

7

87707493

BEARING ASSY,75mm ID x 130mm OD x 25mm W

1шт.

8

47612159

SPACER,54.6mm ID x 92mm OD x 30mm L

1шт.

9

5151457

THRUST WASHER,50.1mm ID x 62mm OD x 2mm Thk

1шт.

10

5138419

SNAP RING,M50

1шт.

11

47839362

HOUSING

1шт.

12

14306921

HEX SOC SCREW,M8 x 50mm, Cl 8.8

1шт.

13

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

1шт.

14

84271075

VALVE

1шт.

15

5196030

PIN,20mm OD x 16.5mm L

1шт.

16

47127897

SNAP RING,M21.5, Ext

1шт.

17

14453180

O-RING,12.42mm ID x 1.78mm

1шт.

18

47123788

SPRING,15mm OD x 87.5mm L

1шт.

19

13420576

SNAP RING,M16, Int

1шт.

20

47127951

CAP COVER

1шт.

21

47612162

GEAR,29T

Drive, Z 29

1шт.

22

5182641

BEARING, ROLLER, CYL,35mm ID x 80mm OD x 21mm W

1шт.

23

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

1шт.

24

5154307

SNAP RING,M35

1шт.

25

47637210

PIPE

1шт.

26

87667806

SEALING WASHER,18mm ID x 26mm OD x 1.5mm

2шт.

27

82824891

BANJO BOLT,2-Way, M18 x 1.5 x 37mm

1шт.

28

10839710

DOWEL,M10 x 15.00mm

2шт.

29

47690545

ORIFICE,Hex, 6/2mm ID

1шт.

30

47612166

IDLER GEAR

1шт.

31

47612165

BEARING ASSY,55mm ID x 100mm OD x 25mm W

1шт.

32

47612163

BEARING ASSY,40mm ID x 90mm OD x 23mm W

1шт.
