Артикул
Название
Примечание
Количество
1

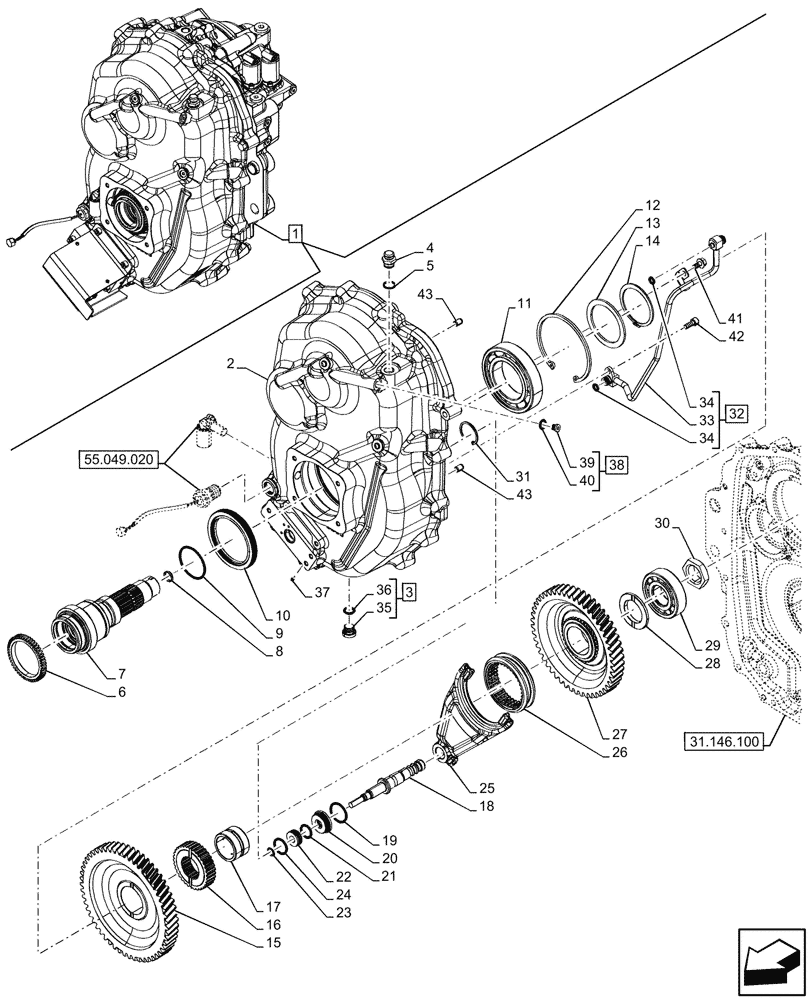

47894653
FRONT PTO ASSY
CW, Incl 2 - 43
1шт.
See Front PTO Components also in Figure 31.146.080, 31.146.100, 31.146.110, 31.146.120, 55.049.020
1шт.
2
47557623
HOUSING
Front
1шт.
3
1009480
PLUG,Hex, M18 x 1.5
ASSY, Incl 35, 36
1шт.
4
87560100
BREATHER,M18 x 1.5mm
1шт.
5
10261560
OIL SEAL,M18 ID x 22mm OD x 1.5mm Thk
1шт.
6
47801888
RING,70.5mm ID x 89.9mm OD x 10mm Thk, 48T
1шт.
7
47583903
SHAFT,216.4mm L
Driven, 216.4mm
1шт.
8
5179204
PLUG,20.27mm OD x 6.38mm W
1шт.
9
14459881
O-RING,2.237" ID x 2.443" OD x 0.103"
1шт.
10
47669807
SEAL,90mm ID x 115mm OD x 12mm Thk
1шт.
11
47609811
BALL BEARING,75mm ID x 130mm OD x 25mm W
1шт.
12
370014
SNAP RING,M130, Internal
1шт.
13
47618696
SPACER,75mm ID x 95mm OD x 3.5mm L
1шт.
14
300637
SNAP RING,M75, Ext
1шт.
15
47612169
GEAR,55T
Driven, Z 55
1шт.
16
87578128
GEAR,21T Internal / 33T External
1шт.
17
5151437
BUSHING,44.4mm ID x 55mm OD x 35mm L
1шт.
18
47583982
SHIFT RAIL,10mm ID x 30mm OD x 177.5mm L
1шт.
19
47897587
O-RING,23.47mm ID x 2.62mm Thk
1шт.
20
47603251
COVER
1шт.
21
47897588
O-RING,17.04mm ID x 3.53mm Thk
1шт.
22
47603253
PISTON
1шт.
23
11066173
CIRCLIP,13mm OD, PHC/ZND
1шт.
24
47897583
O-RING,31.42mm ID x 2.62mm Thk
1шт.
25
47583980
SHIFTER FORK,96mm ID x 140mm W x 217mm L
1шт.
26
87578126
SLEEVE,Z12
1шт.
27
47612170
GEAR,49T
Driven, Z 49
1шт.
28
47898220
DISC,45.1mm ID x 70mm OD x 8mm Thk
1шт.
29
5138660
BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W
1шт.
30
5123114
RING NUT,Hex, M36 x 1.5
1шт.
31
300645
SNAP RING,M42, Int
1шт.
32
47628350
PIPE
ASSY, Pressure, Incl 33, 34
1шт.
33
NSS
NOT SOLD SEPARAT
Pipe, Incl in 32
1шт.
34
14453181
O-RING,0.489" ID x 0.07" Width
2шт.
35
NSS
NOT SOLD SEPARAT
Plug, Incl in 3
1шт.
36
83999938
SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk
1шт.
37
282837A1
PLUG,5mm OD x 5.5mm L
4шт.
38
10118540
PLUG,M10 x 1 x 11, Brass
ASSY, Incl 39, 40
4шт.
39
NSS
NOT SOLD SEPARAT
Plug, Incl in 38
1шт.
41
86511478
BOLT,Hex Serr, M8 x 1.25 x 16mm
1шт.
42
14306324
HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd
1шт.
43
10839710
DOWEL,M10 x 15.00mm
2шт.
Выбрано товаров: 44
