(31.146.070) - VAR - 758770, 758771, 759305, 759306 - FRONT PTO

Запчасти Case IH OPTUM 270 CVT (31.146.070) - VAR - 758770, 758771, 759305, 759306 - FRONT PTO (31) - IMPLEMENT POWER TAKE OFF

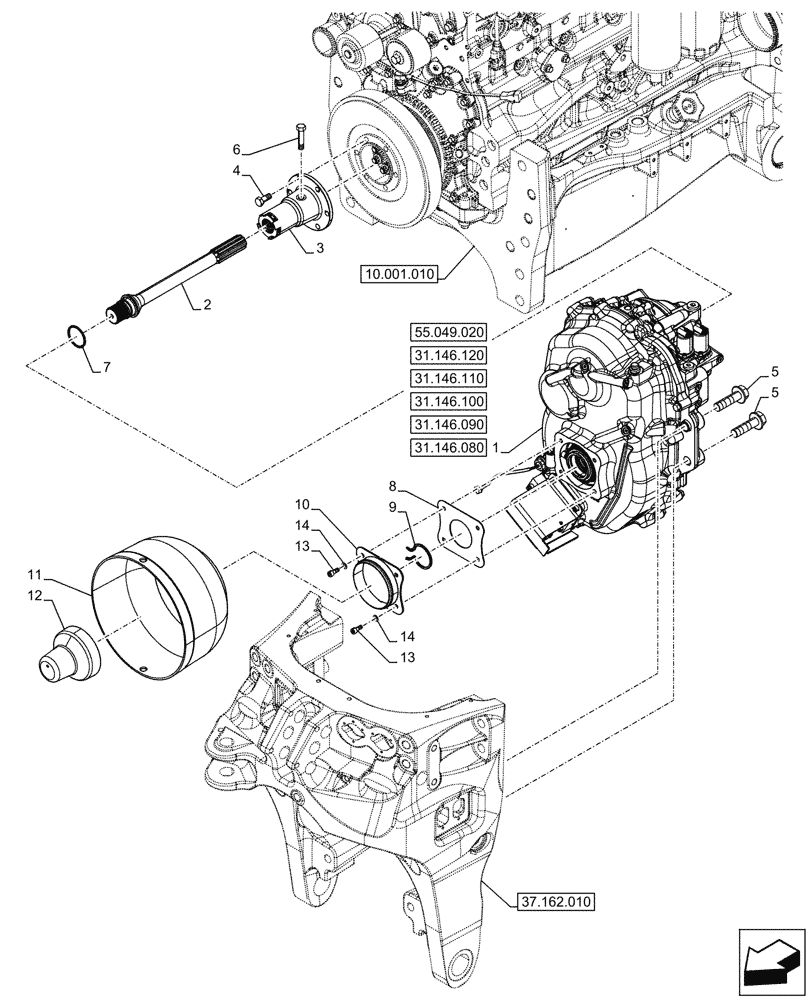

Схема запчастей Case IH OPTUM 270 CVT - (31.146.070) - VAR - 758770, 758771, 759305, 759306 - FRONT PTO (31) - IMPLEMENT POWER TAKE OFF
31.146.110
14
7
9
13
8
6
13
5
3
5
14
11
4
12
10
2
1
55.049.020
31.146.090
37.162.010
31.146.120
31.146.080
31.146.100
10.001.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47894653

FRONT PTO ASSY

CW

1шт.

2

47899236

DRIVE SHAFT,419.5mm L

Front PTO, 419.5mm

1шт.

3

47599042

DAMPER,139.95mm OD x 61.3mm ID x 145mm L

1шт.

4

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

5

87035472

FLANGE BOLT,Hex Flg, M20 x 1.5 x 70, Cl 10.9

4шт.

6

47640111

BOLT,Hex, M10 x 70mm, Cl 10.9

1шт.

7

353108

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

8

47131825

GUARD

1шт.

9

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

10

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

11

47599111

SHIELD

1шт.

12

47125899

COVER,109mm L

1шт.

13

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

14

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.
