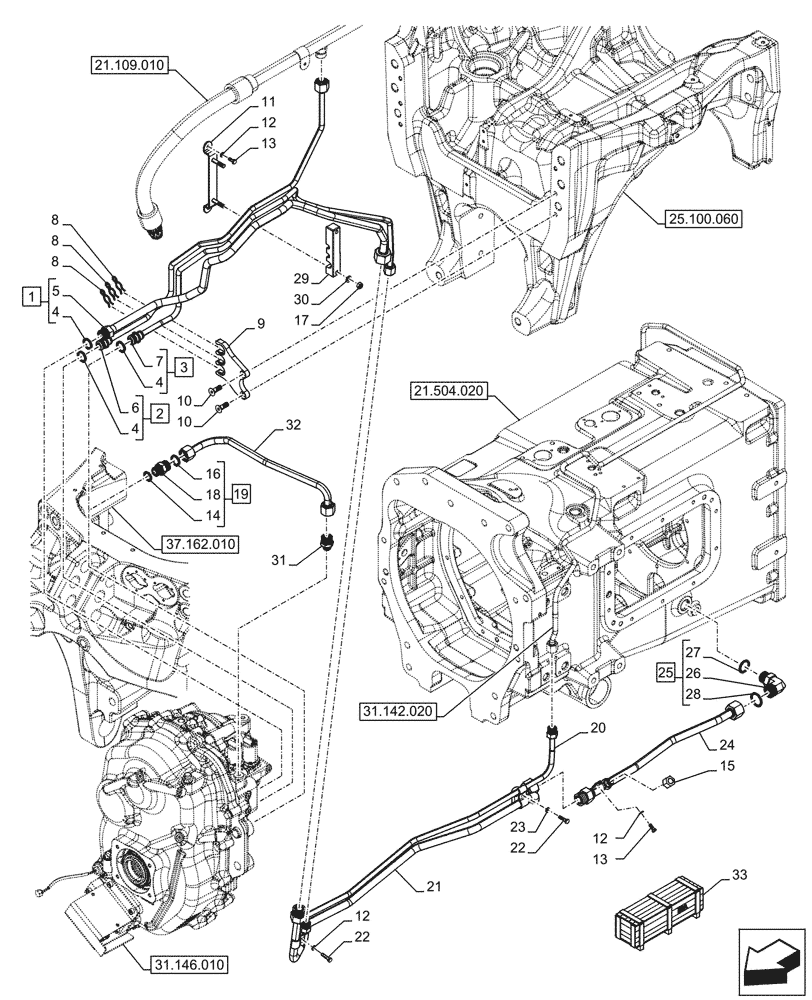

Запчасти Case IH OPTUM 270 CVT (31.142.040) - VAR - 758771, 758773, 759306, 759308 - FRONT PTO, LINES (31) - IMPLEMENT POWER TAKE OFF
№
Артикул
Название
Примечание
Количество
1
47829461
PIPE
ASSY, Front PTO Drain, Incl 4 (Qty 1), 5
1шт.
2
47719576
PIPE
ASSY, Front PTO Lubrification, Incl 4 (Qty 1), 6
1шт.
3
47829459
PIPE
ASSY, Front PTO Clutch Supply, Incl 4 (Qty 1), 7
1шт.
4
47677800
O-RING,17.46mm ID, Cl 5
3шт.
5
NSS
NOT SOLD SEPARAT
Pipe, Incl in 1
1шт.
6
NSS
NOT SOLD SEPARAT
Pipe, Incl in 2
1шт.
7
NSS
NOT SOLD SEPARAT
Pipe, Incl in 3
1шт.
8
857233
COTTER PIN,2.36mm OD x 45.2mm L
3шт.
9
47590806
BRACKET
1шт.
10
84353731
SCREW,Hex, M10 x 1.5 x 30mm L, Cl 10.9
2шт.
11
47647343
BRACKET
1шт.
12
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
4шт.
13
86508568
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
3шт.
14
82016732
SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk
1шт.
15
9625546
CAP,11/16" - 16 ORFS
1шт.
16
83901443
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
17
9706690
NUT,M8 x 1.25, Cl 8
2шт.
18
NSS
NOT SOLD SEPARAT
Connector, Incl in 19
1шт.
19
82016498
HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS
ASSY, Incl 14, 16, 18
1шт.
20
47761201
PIPE
Front PTO Clutch Supply
1шт.
21
47761203
PIPE
Front PTO Drain
1шт.
22
86977786
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8
2шт.
23
14496431
WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk
1шт.
24
47926861
PIPE
Oil Drain
1шт.
25
86579697
ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB
ASSY, Incl 26 - 28
1шт.
26
NSS
NOT SOLD SEPARAT
Elbow, Incl in 25
1шт.
29
47647346
CLAMP,24.5mm H x 25mm Thk x 139mm L
1шт.
30
86624184
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
31
47394237
HYD CONNECTOR,M18 x 1.5 x 37.5mm L
1шт.
32
47595825
PIPE
Coupler Free Return
1шт.
33
718198014
DIA KIT, TRACTOR
2 Front Coupler Kit, Incl 1 - 32
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
Выбрано товаров: 34
