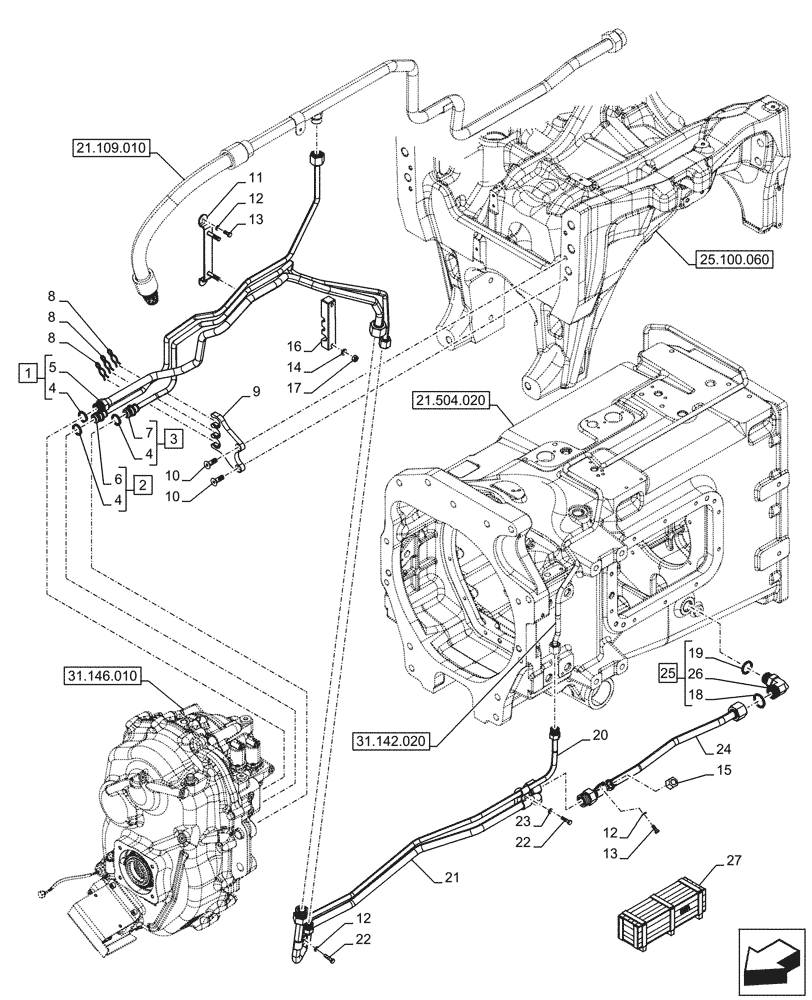

Запчасти Case IH OPTUM 270 CVT (31.142.030) - VAR - 758770, 758772, 759305, 759307 - FRONT PTO, LINES (31) - IMPLEMENT POWER TAKE OFF

1

47829461

PIPE

ASSY, Front PTO Drain, Incl 4 (Qty 1), 5

1шт.

2

47719576

PIPE

ASSY, Front PTO Lubrification, Incl 4 (Qty 1), 6

1шт.

3

47829459

PIPE

ASSY, Front PTO Clutch Supply, Incl 4 (Qty 1), 7

1шт.

4

47677800

O-RING,17.46mm ID, Cl 5

3шт.

5

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Pipe, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Pipe, Incl in 3

1шт.

8

857233

COTTER PIN,2.36mm OD x 45.2mm L

3шт.

9

47590806

BRACKET

1шт.

10

84353731

SCREW,Hex, M10 x 1.5 x 30mm L, Cl 10.9

2шт.

11

47647343

BRACKET

1шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

13

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

9625546

CAP,11/16" - 16 ORFS

1шт.

16

47647346

CLAMP,24.5mm H x 25mm Thk x 139mm L

1шт.

17

9706690

NUT,M8 x 1.25, Cl 8

2шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

20

47761201

PIPE

Front PTO Clutch Supply

1шт.

21

47761203

PIPE

Front PTO Drain

1шт.

22

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

23

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

1шт.

24

47926861

PIPE

Oil Drain

1шт.

25

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

ASSY, Incl 18, 19, 26

1шт.

26

NSS

NOT SOLD SEPARAT

Elbow, Incl in 25

1шт.

27

731034014

DIA KIT, TRACTOR

Front PTO 2 Speed CW, Incl 1 - 26

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

731035014

DIA KIT, TRACTOR

Front PTO 2 Speed CCW, Incl 1 - 26

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
