(31.142.020) - VAR - 758770, 758771, 758772, 758773, 759305, 759306, 759307, 759308 - FRONT PTO, LINES

Запчасти Case IH OPTUM 270 CVT (31.142.020) - VAR - 758770, 758771, 758772, 758773, 759305, 759306, 759307, 759308 - FRONT PTO, LINES (31) - IMPLEMENT POWER TAKE OFF

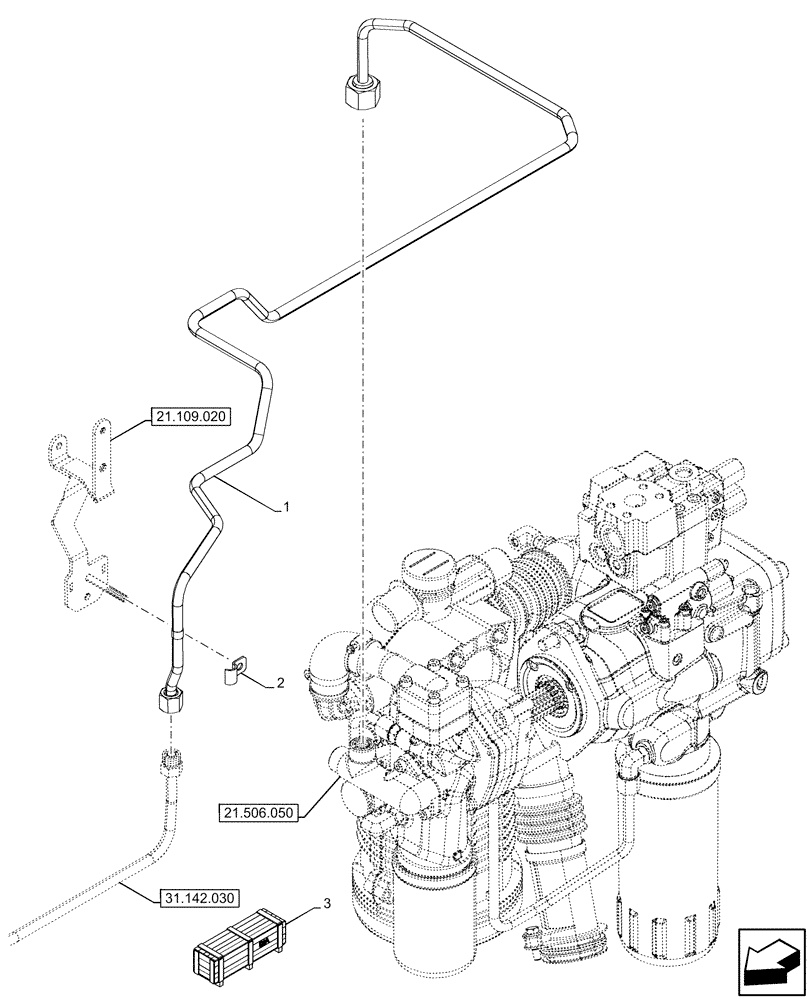

Схема запчастей Case IH OPTUM 270 CVT - (31.142.020) - VAR - 758770, 758771, 758772, 758773, 759305, 759306, 759307, 759308 - FRONT PTO, LINES (31) - IMPLEMENT POWER TAKE OFF
31.142.030
2
3
1
21.506.050
21.109.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47723561

PIPE

Front PTO Clutch Supply

1шт.

2

84168456

CLAMP BRACKET

1шт.

3

731034014

DIA KIT, TRACTOR

Front PTO 2 Speed CW, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

731035014

DIA KIT, TRACTOR

Front PTO 2 Speed CCW, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
