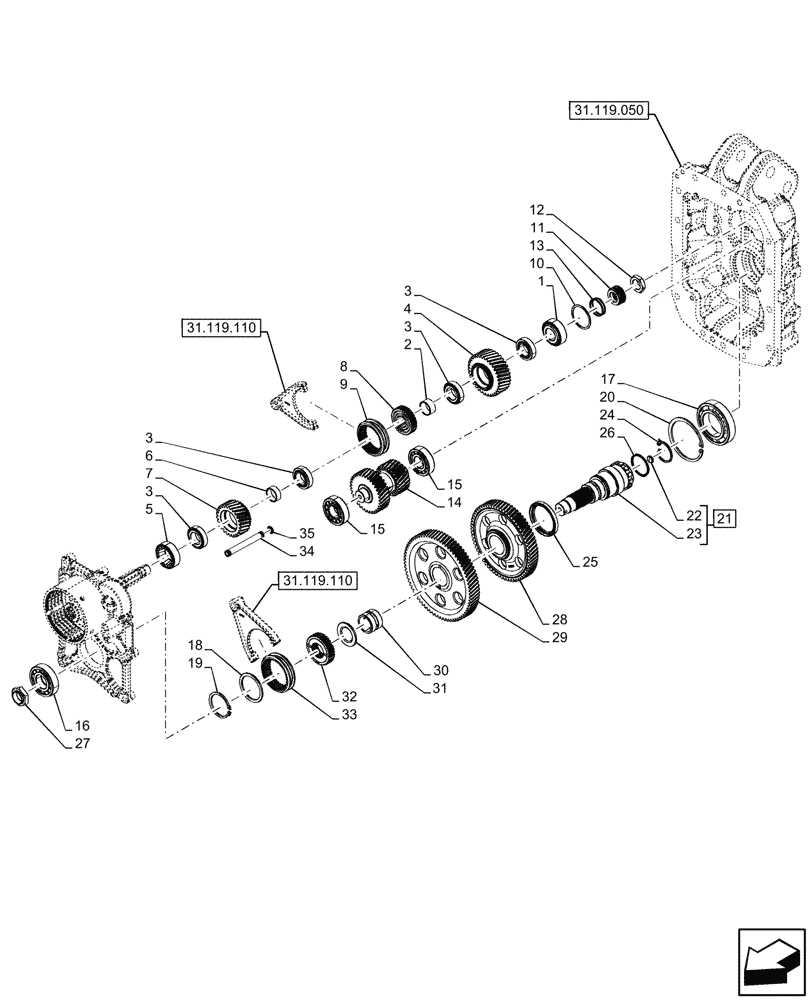

Запчасти Case IH OPTUM 270 CVT (31.119.120) - VAR - 758794 - PTO 540/540E/1000/1000E RPM, DRIVEN SHAFT (31) - IMPLEMENT POWER TAKE OFF

1

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

1шт.

2

47548574

SHIM,35.2mm ID x 41.8mm OD x 19.800mm Thk

1шт.

3

84206611

TAPERED BEARING,35mm ID x 62mm OD x 18mm W

4шт.

4

47886602

GEAR,34/30T

1шт.

5

84206612

TAPERED BEARING,35mm ID x 80mm OD x 22.75mm W

1шт.

6

47548624

SHIM,35.2mm ID x 41.8mm OD x 15.800mm Thk

1шт.

6

47548642

SHIM,35.2mm ID x 41.8mm OD x 15.825mm Thk

1шт.

6

47548820

SHIM,35.2mm ID x 41.8mm OD x 15.850mm Thk

1шт.

6

47548821

SHIM,35.2mm ID x 41.8mm OD x 15.875mm Thk

1шт.

6

47548822

SHIM,35.2mm ID x 41.8mm OD x 15.900mm Thk

1шт.

6

47548823

SHIM,35.2mm ID x 41.8mm OD x 15.925mm Thk

1шт.

6

47548824

SHIM,35.2mm ID x 41.8mm OD x 15.950mm Thk

1шт.

6

47548825

SHIM,35.2mm ID x 41.8mm OD x 15.975mm Thk

1шт.

6

47548826

SHIM,35.2mm ID x 41.8mm OD x 16.000mm Thk

1шт.

6

47548827

SHIM,35.2mm ID x 41.8mm OD x 16.025mm Thk

1шт.

6

47548828

SHIM,35.2mm ID x 41.8mm OD x 16.050mm Thk

1шт.

6

47548829

SHIM,35.2mm ID x 41.8mm OD x 16.075mm Thk

1шт.

6

47548830

SHIM,35.2mm ID x 41.8mm OD x 16.100mm Thk

1шт.

6

47548831

SHIM,35.2mm ID x 41.8mm OD x 16.125mm Thk

1шт.

6

47548832

SHIM,35.2mm ID x 41.8mm OD x 16.150mm Thk

1шт.

6

47548833

SHIM,35.2mm ID x 41.8mm OD x 16.175mm Thk

1шт.

6

47548834

SHIM,35.2mm ID x 41.8mm OD x 16.200mm Thk

1шт.

6

47782993

SHIM,35.2mm ID x 41.8mm OD x 16.225mm Thk

1шт.

6

47782994

SHIM,35.2mm ID x 41.8mm OD x 16.250mm Thk

1шт.

6

47782995

SHIM,35.2mm ID x 41.8mm OD x 16.275mm Thk

1шт.

6

47782997

SHIM,35.2mm ID x 41.8mm OD x 16.300mm Thk

1шт.

6

47782998

SHIM,35.2mm ID x 41.8mm OD x 16.325mm Thk

1шт.

6

47783000

SHIM,35.2mm ID x 41.8mm OD x 16.350mm Thk

1шт.

6

47783001

SHIM,35.2mm ID x 41.8mm OD x 16.375mm Thk

1шт.

6

47783002

SHIM,35.2mm ID x 41.8mm OD x 16.400mm Thk

1шт.

6

47783003

SHIM,35.2mm ID x 41.8mm OD x 16.425mm Thk

1шт.

6

47783005

SHIM,35.2mm ID x 41.8mm OD x 16.450mm Thk

1шт.

6

47783007

SHIM,35.2mm ID x 41.8mm OD x 16.475mm Thk

1шт.

6

47783008

SHIM,35.2mm ID x 41.8mm OD x 16.500mm Thk

1шт.

6

47783009

SHIM,35.2mm ID x 41.8mm OD x 16.525mm Thk

1шт.

6

47783011

SHIM,35.2mm ID x 41.8mm OD x 16.550mm Thk

1шт.

6

47783013

SHIM,35.2mm ID x 41.8mm OD x 16.575mm Thk

1шт.

6

47783015

SHIM,35.2mm ID x 41.8mm OD x 16.600mm Thk

1шт.

6

47436992

GEAR,30/25T

1шт.

7

47436992

GEAR,30/25T

1шт.

8

84192950

TRANSMISSION SLEEVE,35mm ID x 80mm OD x 20mm Thk

1шт.

9

84192949

TRANSMISSION SLEEVE,75mm ID x 80.5mm OD x 28mm Thk, 30T

1шт.

10

84236633

SHIM,62mm ID x 72mm OD x 1.100mm Thk

1шт.

10

84236649

SHIM,62mm ID x 72mm OD x 1.125mm Thk

1шт.

10

84236650

SHIM,62mm ID x 72mm OD x 1.150mm Thk

1шт.

10

84236655

SHIM,62mm ID x 72mm OD x 1.175mm Thk

1шт.

10

84236658

SHIM,62mm ID x 72mm OD x 1.200mm Thk

1шт.

10

84236659

SHIM,62mm ID x 72mm OD x 1.225mm Thk

1шт.

10

84236660

SHIM,62mm ID x 72mm OD x 1.250mm Thk

1шт.

10

84236661

SHIM,62mm ID x 72mm OD x 1.275mm Thk

1шт.

10

84236663

SHIM,62mm ID x 72mm OD x 1.300mm Thk

1шт.

10

84236664

SHIM,62mm ID x 72mm OD x 1.325mm Thk

1шт.

10

84236665

SHIM,62mm ID x 72mm OD x 1.350mm Thk

1шт.

10

84236666

SHIM,62mm ID x 72mm OD x 1.375mm Thk

1шт.

10

84236667

SHIM,62mm ID x 72mm OD x 1.400mm Thk

1шт.

10

84236668

SHIM,62mm ID x 72mm OD x 1.425mm Thk

1шт.

10

84236669

SHIM,62mm ID x 72mm OD x 1.450mm Thk

1шт.

10

84236671

SHIM,62mm ID x 72mm OD x 1.475mm Thk

1шт.

10

84236672

SHIM,62mm ID x 72mm OD x 1.500mm Thk

1шт.

10

84236673

SHIM,62mm ID x 72mm OD x 1.525mm Thk

1шт.

10

84236674

SHIM,62mm ID x 72mm OD x 1.550mm Thk

1шт.

10

84236675

SHIM,62mm ID x 72mm OD x 1.575mm Thk

1шт.

10

84236676

SHIM,62mm ID x 72mm OD x 1.600mm Thk

1шт.

10

84236677

SHIM,62mm ID x 72mm OD x 1.625mm Thk

1шт.

10

84236678

SHIM,62mm ID x 72mm OD x 1.650mm Thk

1шт.

10

84236679

SHIM,62mm ID x 72mm OD x 1.675mm Thk

1шт.

10

84236680

SHIM,62mm ID x 72mm OD x 1.700mm Thk

1шт.

10

84236681

SHIM,62mm ID x 72mm OD x 1.725mm Thk

1шт.

10

84236682

SHIM,62mm ID x 72mm OD x 1.750mm Thk

1шт.

10

84236683

SHIM,62mm ID x 72mm OD x 1.775mm Thk

1шт.

10

84205757

SHIM,62mm ID x 72mm OD x 1.800mm Thk

1шт.

10

84205758

SHIM,62mm ID x 72mm OD x 1.825mm Thk

1шт.

10

84205759

SHIM,62mm ID x 72mm OD x 1.850mm Thk

1шт.

10

84205760

SHIM,62mm ID x 72mm OD x 1.875mm Thk

1шт.

10

84205761

SHIM,62mm ID x 72mm OD x 1.900mm Thk

1шт.

10

84205762

SHIM,62mm ID x 72mm OD x 1.925mm Thk

1шт.

10

84205763

SHIM,62mm ID x 72mm OD x 1.950mm Thk

1шт.

10

84205764

SHIM,62mm ID x 72mm OD x 1.975mm Thk

1шт.

10

84205765

SHIM,62mm ID x 72mm OD x 2.000mm Thk

1шт.

10

84205766

SHIM,62mm ID x 72mm OD x 2.025mm Thk

1шт.

10

84205767

SHIM,62mm ID x 72mm OD x 2.050mm Thk

1шт.

10

84205768

SHIM,62mm ID x 72mm OD x 2.075mm Thk

1шт.

10

84205769

SHIM,62mm ID x 72mm OD x 2.100mm Thk

1шт.

10

84205770

SHIM,62mm ID x 72mm OD x 2.125mm Thk

1шт.

10

84205771

SHIM,62mm ID x 72mm OD x 2.150mm Thk

1шт.

10

84205772

SHIM,62mm ID x 72mm OD x 2.175mm Thk

1шт.

10

84205773

SHIM,62mm ID x 72mm OD x 2.200mm Thk

1шт.

10

84205774

SHIM,62mm ID x 72mm OD x 2.225mm Thk

1шт.

10

84205775

SHIM,62mm ID x 72mm OD x 2.250mm Thk

1шт.

10

84205776

SHIM,62mm ID x 72mm OD x 2.275mm Thk

1шт.

10

84205777

SHIM,62mm ID x 72mm OD x 2.300mm Thk

1шт.

10

84205778

SHIM,62mm ID x 72mm OD x 2.325mm Thk

1шт.

10

84205779

SHIM,62mm ID x 72mm OD x 2.350mm Thk

1шт.

10

84205780

SHIM,62mm ID x 72mm OD x 2.375mm Thk

1шт.

10

84205781

SHIM,62mm ID x 72mm OD x 2.400mm Thk

1шт.

10

84205782

SHIM,62mm ID x 72mm OD x 2.425mm Thk

1шт.

10

84205783

SHIM,62mm ID x 72mm OD x 2.450mm Thk

1шт.

10

84205784

SHIM,62mm ID x 72mm OD x 2.475mm Thk

1шт.

10

84205785

SHIM,62mm ID x 72mm OD x 2.500mm Thk

1шт.

10

84205787

SHIM,62mm ID x 72mm OD x 2.525mm Thk

1шт.

10

84205788

SHIM,62mm ID x 72mm OD x 2.550mm Thk

1шт.

10

84205789

SHIM,62mm ID x 72mm OD x 2.575mm Thk

1шт.

10

84205790

SHIM,62mm ID x 72mm OD x 2.600mm Thk

1шт.

11

84240143

MANIFOLD

1шт.

12

5100183

LOCK NUT,Hex, M328 x 1.5, Cl 8.8

1шт.

13

5175983

SEALING RING,46mm ID

2шт.

14

47886603

IDLER GEAR

1шт.

15

5182641

BEARING, ROLLER, CYL,35mm ID x 80mm OD x 21mm W

2шт.

16

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

1шт.

17

26794680

BALL BEARING,70.00mm x 125.00 x 24.00mm

1шт.

18

47131852

RETAINER,70.5mm ID x 86mm OD x 4mm Thk

1шт.

19

47132124

CIRCLIP,M70

1шт.

20

11076176

SNAP RING,M125, Int

1шт.

21

47563852

PTO SHAFT

ASSY, Incl 22, 23

1шт.

22

5179204

PLUG,20.27mm OD x 6.38mm W

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT, Incl in 21

1шт.

24

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

25

47887906

SEAL,80mm ID x 100mm OD x 18mm Thk

1шт.

26

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

27

5123114

RING NUT,Hex, M36 x 1.5

1шт.

28

47886601

GEAR,63/33T

1шт.

29

47436996

GEAR,74/33T

1шт.

30

84207460

BUSHING,44.4mm ID x 55mm OD x 40mm L

1шт.

31

84207908

THRUST WASHER,40mm ID x 70mm OD x 4.5mm Thk

1шт.

32

87578128

GEAR,21T Internal / 33T External

1шт.

33

87578126

SLEEVE,Z12

1шт.

34

47548382

PIPE

2шт.

35

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.
