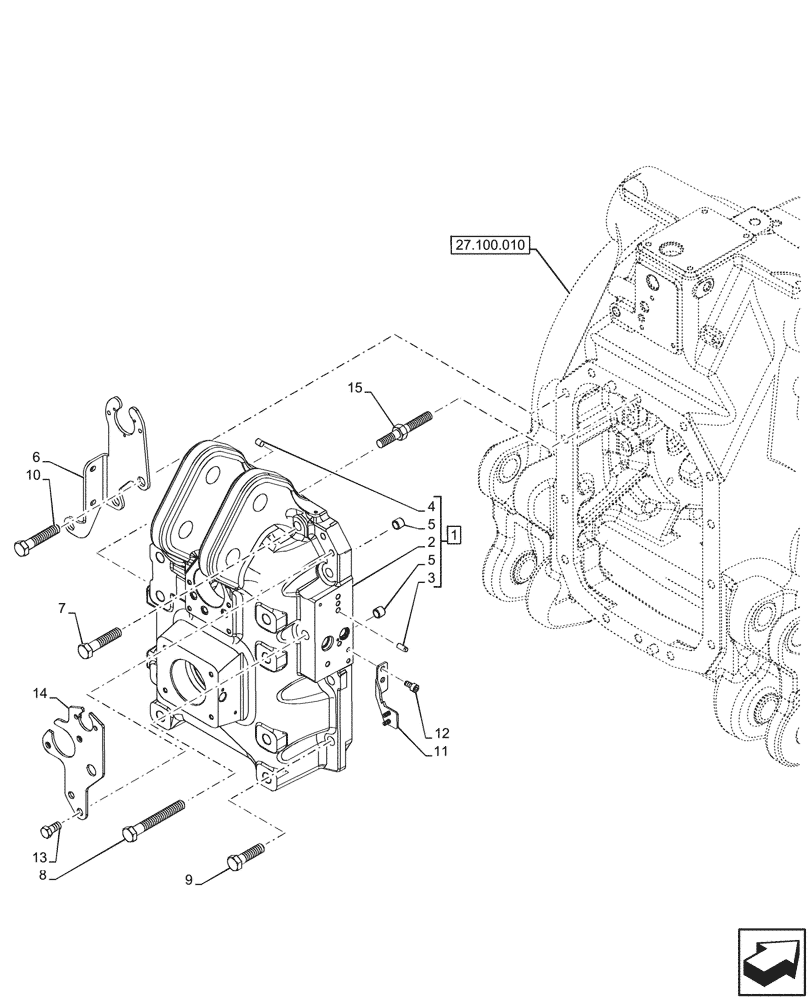

Запчасти Case IH OPTUM 270 CVT (31.119.050) - VAR - 758794 - REAR PTO, HOUSING & COVERS (31) - IMPLEMENT POWER TAKE OFF

1

47481735

COVER

ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

3

837-8020

DOWEL,8mm OD x 20mm L

2шт.

4

14536590

PLUG,10.00mm Dia x 19.80mm L

2шт.

5

44908048

BUSHING,16mm OD x 14mm L

2шт.

6

47862641

BRACKET

1шт.

7

15981324

BOLT,Hex, M16 x 1.5 x 75mm, Cl 8.8

2шт.

8

15981824

SCREW,Hex, M16 x 1.5 x 120mm, Cl 8.8

1шт.

9

15981124

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

6шт.

10

11254124

BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

2шт.

11

47620706

BRACKET

1шт.

12

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

2шт.

13

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

14

47929964

BRACKET

ABS Trailer

1шт.

15

47938081

SCREW

3шт.
