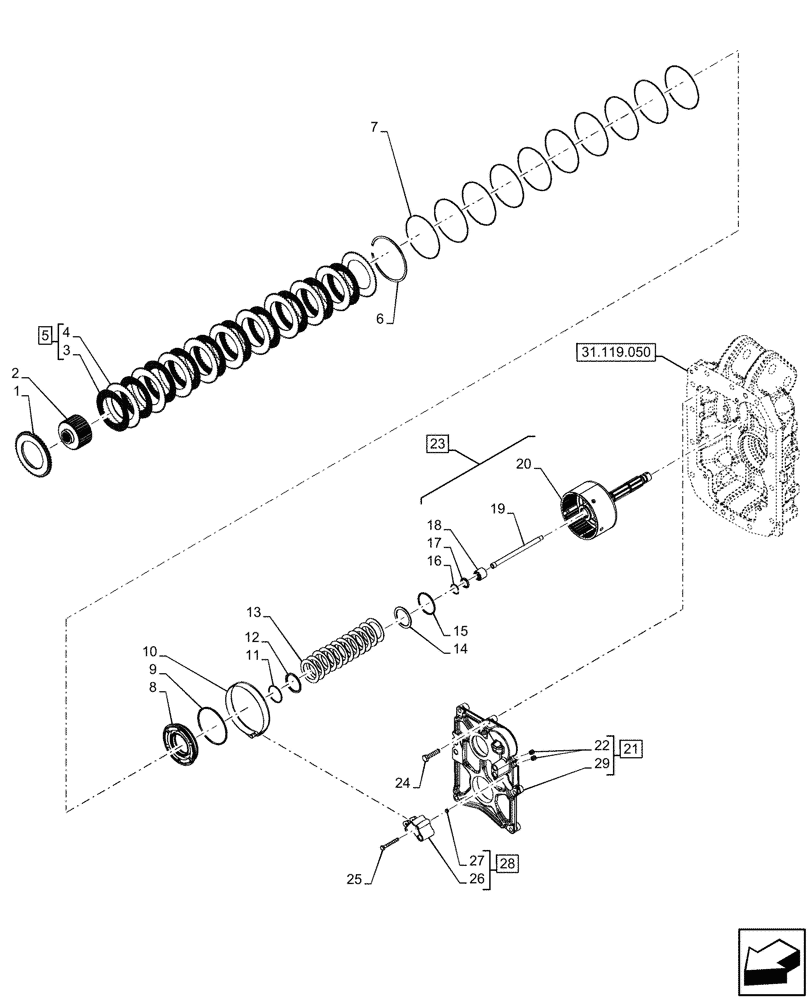

Запчасти Case IH OPTUM 270 CVT (31.119.040) - VAR - 758794 - REAR PTO, CLUTCH (31) - IMPLEMENT POWER TAKE OFF

1

5198772

CLUTCH PLATE,94.5mm ID x 152.6mm OD x 9.5mm Thk

1шт.

2

47466826

HUB

1шт.

3

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

10шт.

4

NSS

NOT SOLD SEPARAT

Disc, Incl in 5

1шт.

5

47436898

CLUTCH PACK

ASSY, Incl 3, 4

1шт.

6

5162251

CIRCLIP,142.5mm ID

1шт.

7

81864341

SPRING,148.35mm ID

10шт.

8

5182697

PISTON

1шт.

9

5182703

GASKET,119.55mm ID x 127mm OD x 3.2mm Thk

1шт.

10

87391136

BRAKE BAND,23mm W x 1.0mm Thk

1шт.

11

5191305

CIRCLIP,54mm ID

1шт.

12

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

13

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

12шт.

14

5182696

PISTON RING,56mm ID x 72.99mm OD x 3mm Thk

1шт.

15

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

16

5182717

SNAP RING,1.5mm Thk

1шт.

17

5182702

GASKET,25mm ID x 33mm OD x 4mm Thk

1шт.

18

5138952

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 26mm W

1шт.

19

NSS

NOT SOLD SEPARAT

Pipe, Incl in 23

1шт.

20

NSS

NOT SOLD SEPARAT

Shaft, Incl in 23

1шт.

21

47481757

SUPPORT

ASSY, Incl 22, 29

1шт.

22

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

1шт.

23

47436879

CONTROL SHAFT

ASSY, Incl 16 - 22

1шт.

24

15540921

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

5шт.

25

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.

26

NSS

NOT SOLD SEPARAT

Housing, Incl in 28

1шт.

27

5168157

BUSHING,8.5mm ID x 10.7mm OD x 5.5mm L

2шт.

28

47548389

HOUSING

ASSY, Incl 26, 27

1шт.

29

NSS

NOT SOLD SEPARAT

Support, Incl in 21

1шт.
