(31.119.010) - VAR - 391173, 758100, 758101, 758103, 758113, 758113 - REAR PTO, OUTPUT SHAFT, GUARD

Запчасти Case IH OPTUM 270 CVT (31.119.010) - VAR - 391173, 758100, 758101, 758103, 758113, 758113 - REAR PTO, OUTPUT SHAFT, GUARD (31) - IMPLEMENT POWER TAKE OFF

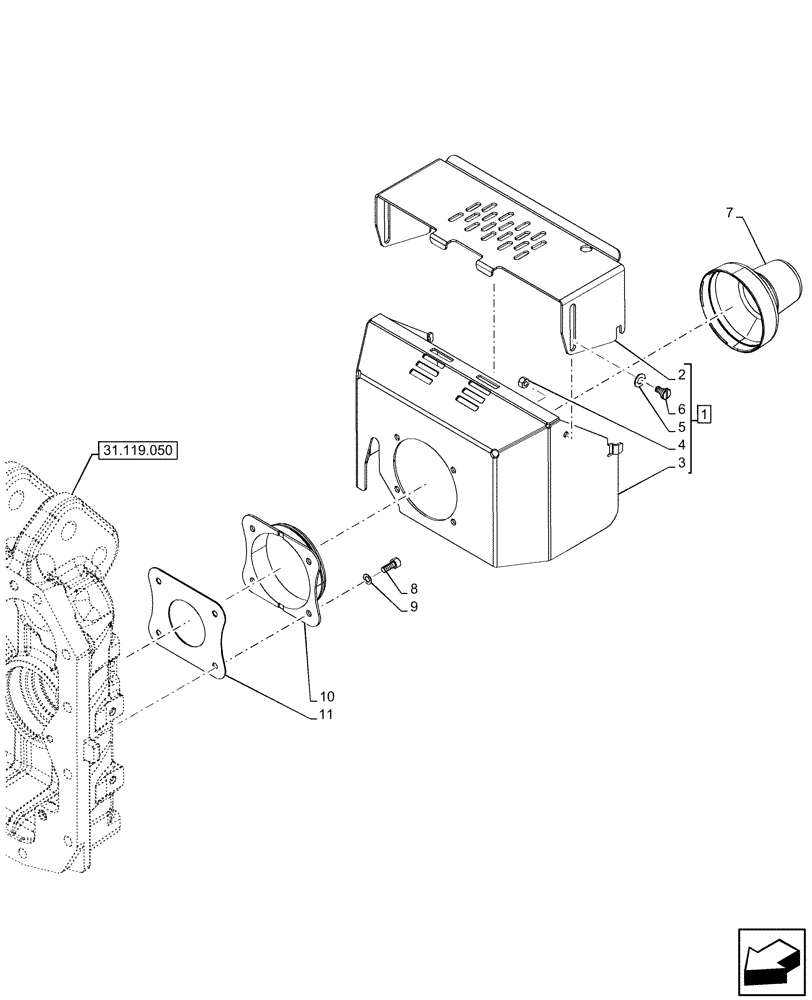

Схема запчастей Case IH OPTUM 270 CVT - (31.119.010) - VAR - 391173, 758100, 758101, 758103, 758113, 758113 - REAR PTO, OUTPUT SHAFT, GUARD (31) - IMPLEMENT POWER TAKE OFF
31.119.050
9
6
11
2
1
3
5
10
8
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47638489

COVER

ASSY, Incl 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Cover Upper, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Cover Body, incl in 1

1шт.

4

68841

NUT,M8 x 1.25, Cl 8

2шт.

5

84568361

SPRING-DISC

2шт.

6

84568360

SCREW,Flat, M8

2шт.

7

47125899

COVER,109mm L

1шт.

8

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

9

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

10

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

11

47898294

GUARD

1шт.
