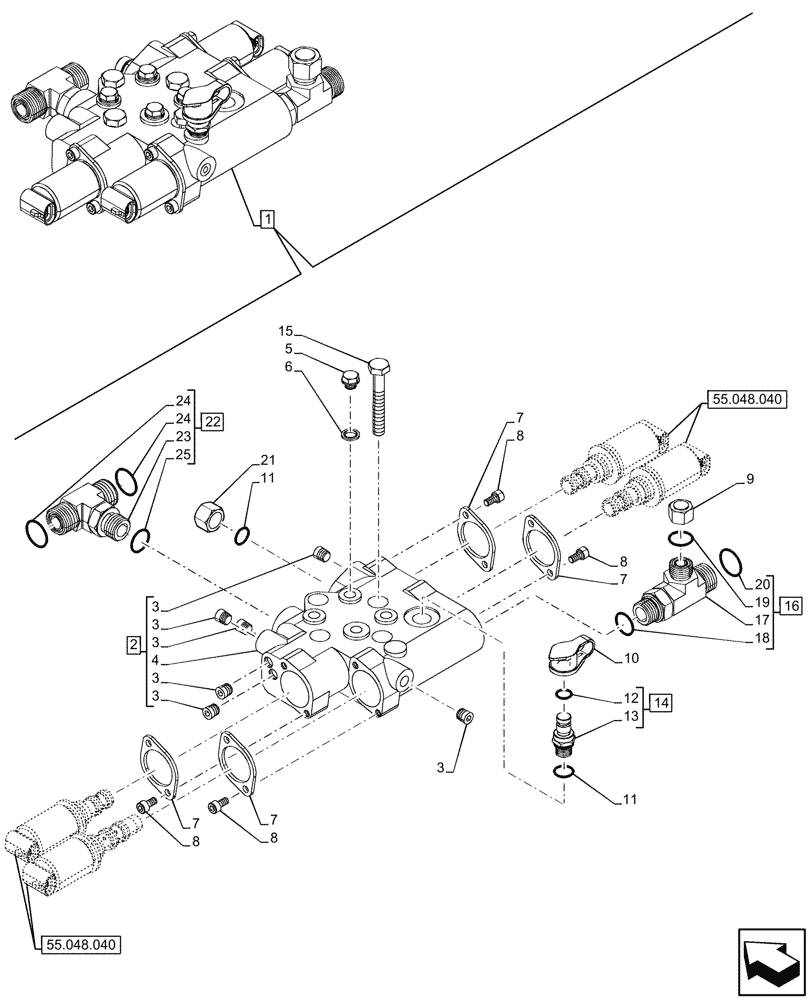

Запчасти Case IH OPTUM 270 CVT (31.104.050) - VAR - 758794 - PTO, CONTROL VALVE (31) - IMPLEMENT POWER TAKE OFF

1

47617432

HYDRAULIC MANIFOLD

ASSY, Incl 2 - 25

1шт.

SEE Also Manifold Components in 31.104.040

1шт.

2

87523105

VALVE BODY

ASSY, Incl 3, 4

1шт.

3

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

6шт.

4

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 2

1шт.

5

87535222

PLUG,Hex, M10 x 1 x 13mm

4шт.

6

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

4шт.

7

5194826

BRACKET

4шт.

8

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

9

47123020

PLUG,Hex

1шт.

10

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

11

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

12

47725668

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

NSS

NOT SOLD SEPARAT

COUPLING, Incl in 14

1шт.

14

5185423

COUPLING

ASSY, Incl 12, 13

1шт.

15

15888821

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

4шт.

16

47136372

HYD CONNECTOR,M22 x 1.5 x 88.5mm L

ASSY, Incl 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

L FITTING, Incl in 16

1шт.

18

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

19

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

21

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

22

86579711

TEE,M22 x 1.5

ASSY, Incl 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

TEE, Incl in 22

1шт.

24

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

25

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
