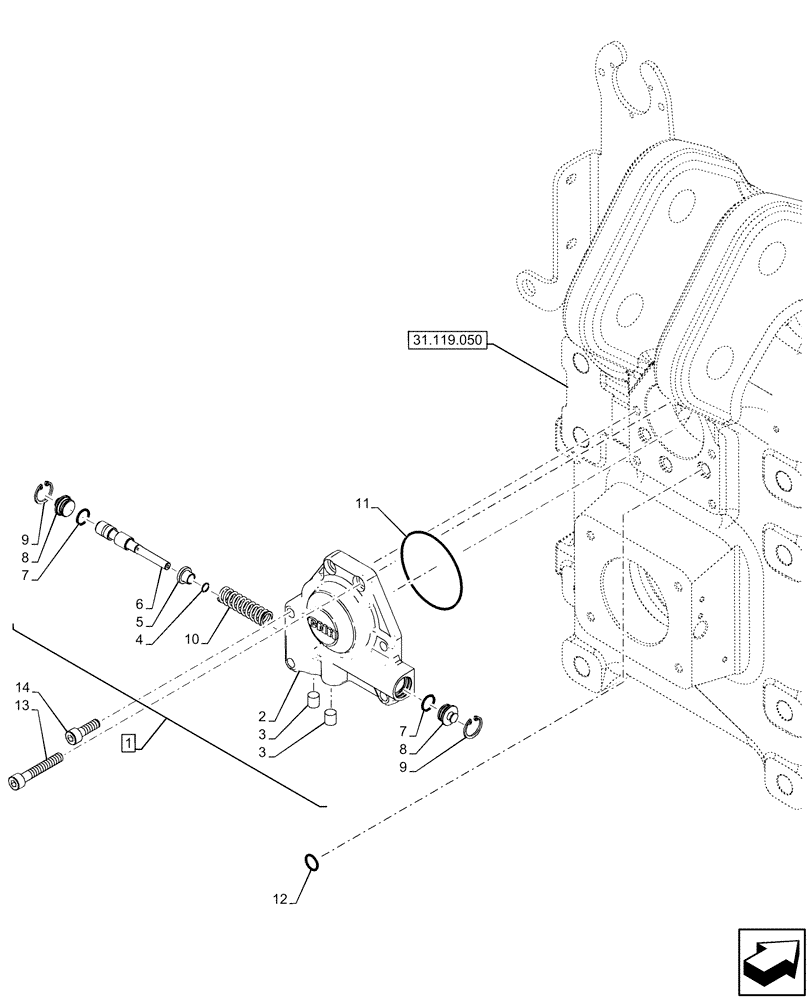

Запчасти Case IH OPTUM 270 CVT (31.104.030) - VAR - 758794 - REAR PTO, ELECTROHYDRAULIC ENGAGEMENT, MANIFOLD (31) - IMPLEMENT POWER TAKE OFF

1

84296184

MANIFOLD

ASSY,Incl 2 - 10

1шт.

2

84240136

SUPPORT

1шт.

3

14536590

PLUG,10.00mm Dia x 19.80mm L

2шт.

4

13397370

SNAP RING,M8, Int

1шт.

5

84271074

SPACER,8mm ID x 15.6mm OD x 10mm L

1шт.

6

82990923

VALVE,12.001mm/12.005mm OD x 85.5mm L, Class D

1шт.

Valve Class D, External Diameter 12.001 - 12.005

1шт.

6

82990921

VALVE,11.991mm/11.995mm OD x 85.5mm L, Class B

1шт.

Valve Class B, External Diameter 11.991 - 11.995

1шт.

6

82990922

VALVE,11.996mm/12.000mm OD x 85.5mm L, Class C

1шт.

Valve Class C, External Diameter 11.996 - 12.000

1шт.

6

82990924

VALVE,11.986mm/11.990mm OD x 85.5mm L, Class A

1шт.

Valve Class A, External Diameter 11.986 - 11.990

1шт.

7

14453180

O-RING,12.42mm ID x 1.78mm

2шт.

8

47128597

PLUG,6mm ID x 19mm OD x 13mm L

2шт.

9

47127897

SNAP RING,M21.5, Ext

2шт.

10

84281722

SPRING,Compression, 15mm OD x 80mm L

1шт.

11

14460880

O-RING,0.103" Thk x 2.862" ID, -150, Cl 5, 75 Duro

1шт.

12

14456980

O-RING,10.77mm ID x 2.62mm

3шт.

13

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

4шт.

14

14306921

HEX SOC SCREW,M8 x 50mm, Cl 8.8

2шт.
