(31.104.010) - VAR - 391138, 758022, 758870, 759053 - REAR PTO, ELECTROHYDRAULIC ENGAGEMENT, LUBRICATION LINE

Запчасти Case IH OPTUM 270 CVT (31.104.010) - VAR - 391138, 758022, 758870, 759053 - REAR PTO, ELECTROHYDRAULIC ENGAGEMENT, LUBRICATION LINE (31) - IMPLEMENT POWER TAKE OFF

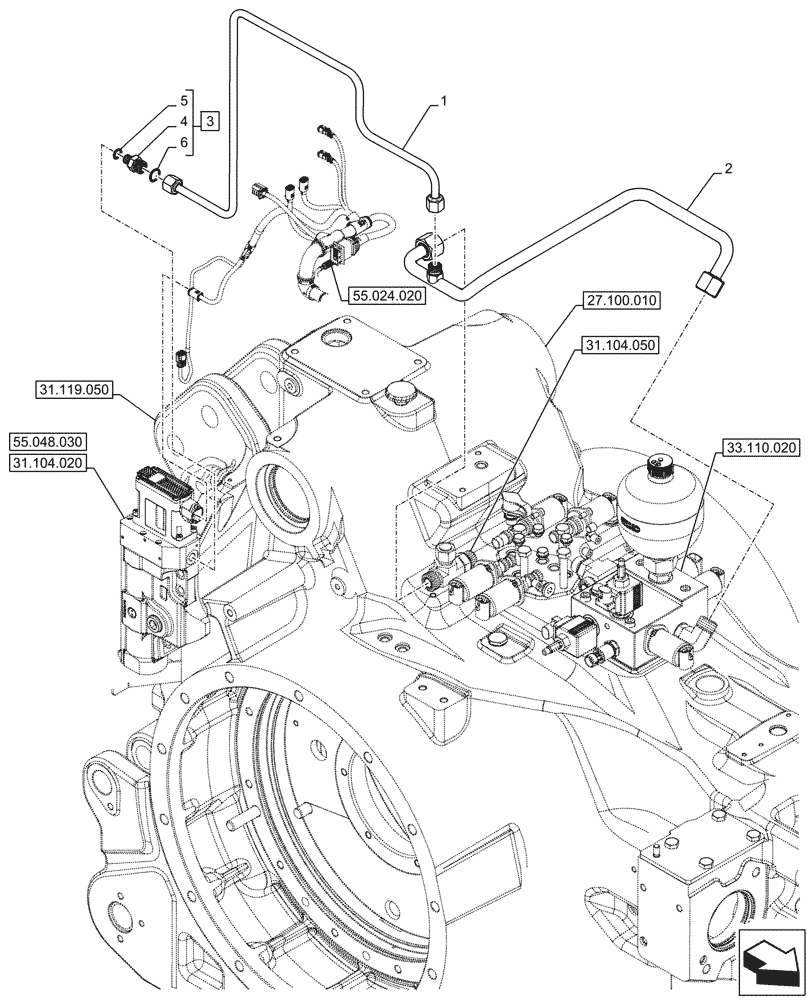

Схема запчастей Case IH OPTUM 270 CVT - (31.104.010) - VAR - 391138, 758022, 758870, 759053 - REAR PTO, ELECTROHYDRAULIC ENGAGEMENT, LUBRICATION LINE (31) - IMPLEMENT POWER TAKE OFF
55.048.030
6
2
1
3
5
31.104.020
4
27.100.010
31.104.050
55.024.020
31.119.050
33.110.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47608882

PIPE

PTO Control Valve

1шт.

2

47873723

PIPE

from SAHR to Service Valve

1шт.

3

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

5

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
