(27.120.120) - REAR AXLE, WHEEL HUB, ADDITIONAL

Запчасти Case IH OPTUM 270 CVT (27.120.120) - REAR AXLE, WHEEL HUB, ADDITIONAL (27) - REAR AXLE SYSTEM

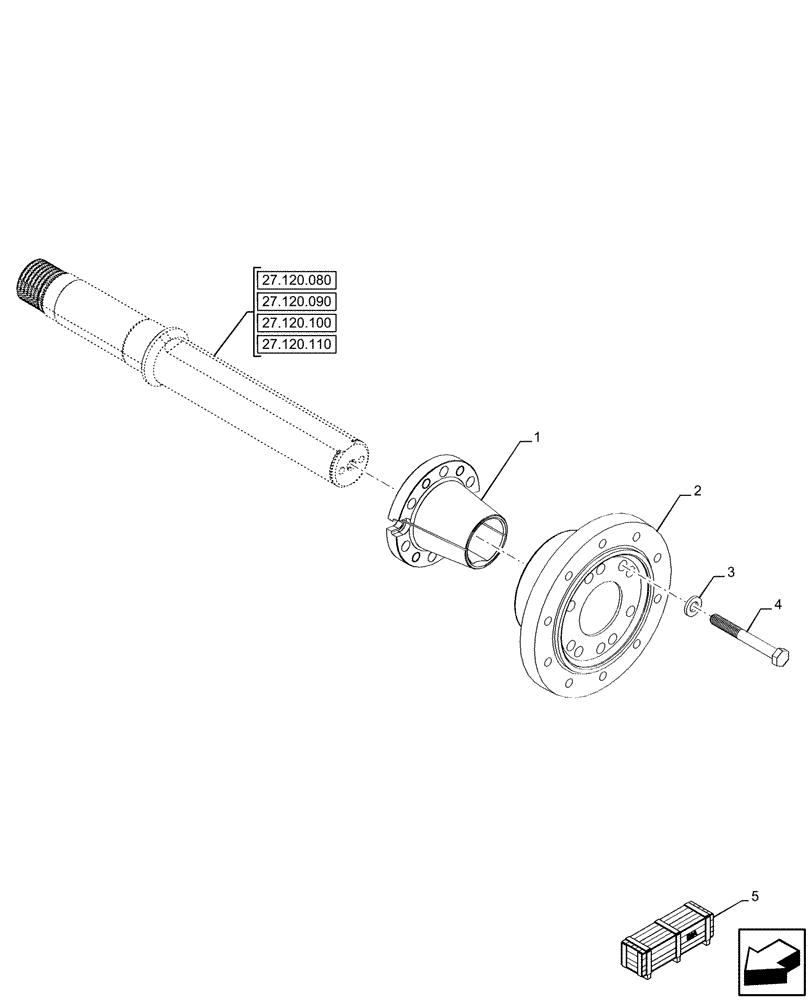

Схема запчастей Case IH OPTUM 270 CVT - (27.120.120) - REAR AXLE, WHEEL HUB, ADDITIONAL (27) - REAR AXLE SYSTEM
27.120.090
5
4
1
3
2
27.120.100
27.120.110
27.120.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87645102

WEDGE,Lock, Silver

1шт.

2

47126431

HUB

1шт.

3

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

4шт.

4

87688509

BOLT,Hex, M22 x 2.5 x 190mm

4шт.

5

719021014

DIA KIT, TRACTOR

10 Stud Hub Asy, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
