Запчасти Case IH OPTUM 270 CVT (27.120.030) - VAR - 391158 - REAR AXLE, FINAL DRIVE, PLANETARY GEAR (27) - REAR AXLE SYSTEM

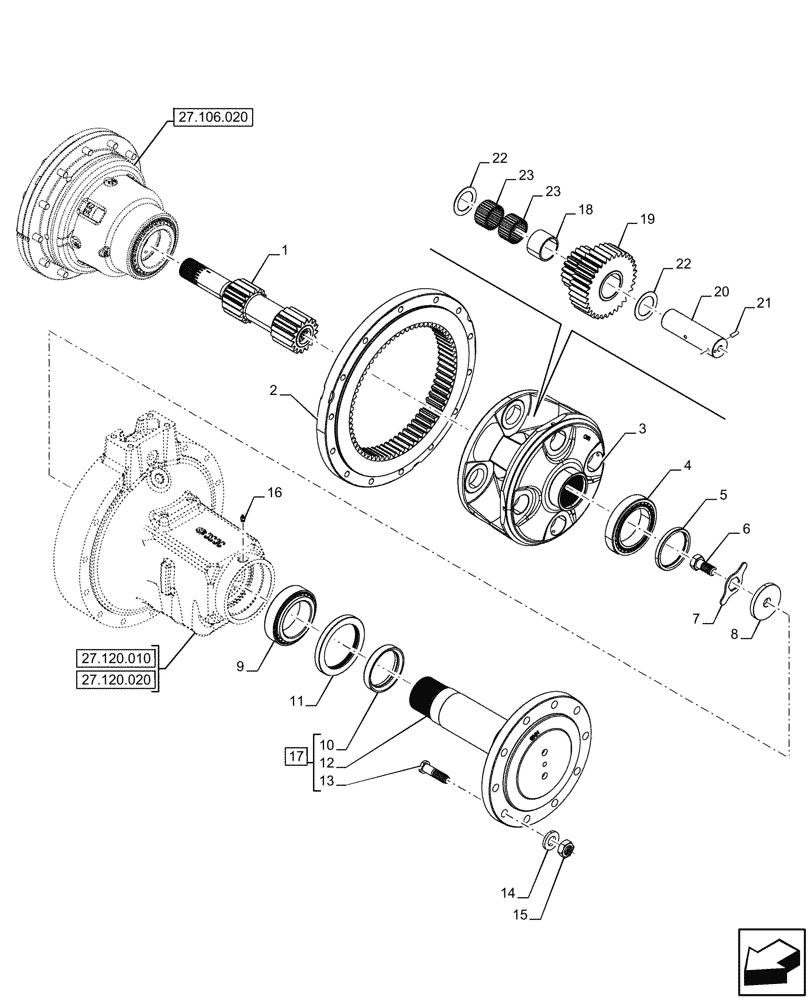

Схема запчастей Case IH OPTUM 270 CVT - (27.120.030) - VAR - 391158 - REAR AXLE, FINAL DRIVE, PLANETARY GEAR (27) - REAR AXLE SYSTEM
27.106.020
12
9
21
13
16
22
7
4
15
5
10
23
22
17
18
20
6
19
8
2
3
23
11
14
1
27.120.010
27.120.020

Артикул

Название

Примечание

Количество

1

47774105

SHAFT,47.5/77.3mm ID x 54.3/102mm OD x 447mm L, 16/20T

1шт.

2

47617431

RING GEAR,374.3mm ID x 394.7mm OD x 58mm Thk, 72T

1шт.

3

47847739

PINION CARRIER

1шт.

4

47520146

SPH ROLLER BEARING,110mm ID x 165mm OD x 35mm Thk

1шт.

5

47487234

SEALING RING,98mm ID x 120mm OD x 12mm Thk

1шт.

6

47795411

SCREW

1шт.

7

47847741

WASHER,70mm OD x 127mm L x 4mm Thk

1шт.

8

47847736

WASHER,25mm ID x 102mm OD x 12mm Thk

1шт.

9

47518981

SPH ROLLER BEARING,105mm ID x 160mm OD x 43mm Thk

1шт.

10

NSS

NOT SOLD SEPARAT

Spacer, Incl in 17

1шт.

11

47487235

GASKET,130mm ID x 170mm OD x 16mm Thk

1шт.

12

NSS

NOT SOLD SEPARAT

Drive Axle, Incl in 17

1шт.

13

87307103

WHEEL BOLT,M22 x 2.5 x 91mm

10шт.

14

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

10шт.

15

10719824

NUT,M22 x 10, DAC

M22 10 DAC

10шт.

16

13407211

LUBE NIPPLE,M10 x 1

1шт.

17

47680989

AXLE

ASSY, Incl 10, 12, 13

1шт.

18

47681851

SPACER,60mm ID x 69.65mm OD x 47.2mm L

4шт.

19

47436930

GEAR,33/20T

Ratio 20/33

4шт.

20

47436931

PIN,55.65mm OD x 191.5mm L

4шт.

21

838-3826

PIN,M8 x 26, Coiled

4шт.

22

47483150

SPACER,55.65mm ID x 82mm OD x 1.5mm L

8шт.

23

47468746

NEEDLE BEARING,55.65mm ID x 69.65mm OD x 41mm Thk

4шт.

Выбрано товаров: 23
