(27.106.030) - VAR - 391138, 758022, 758870, 759053 - REAR AXLE, FINAL DRIVE, DIFFERENTIAL, SUPPORT

Запчасти Case IH OPTUM 270 CVT (27.106.030) - VAR - 391138, 758022, 758870, 759053 - REAR AXLE, FINAL DRIVE, DIFFERENTIAL, SUPPORT (27) - REAR AXLE SYSTEM

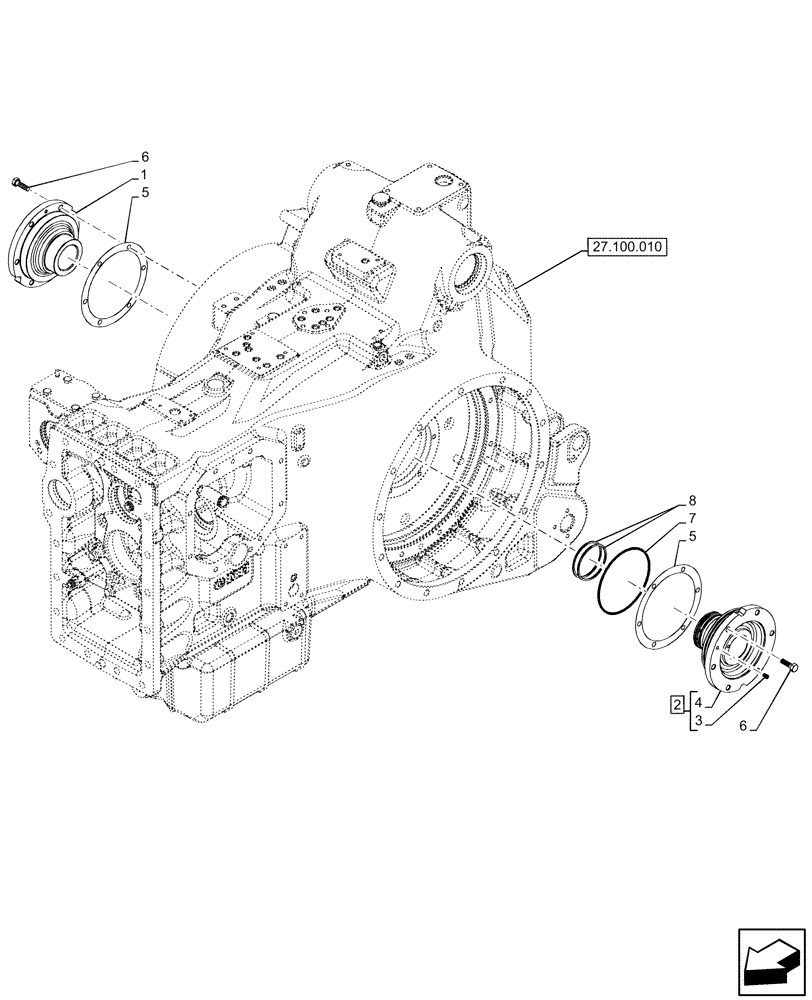

Схема запчастей Case IH OPTUM 270 CVT - (27.106.030) - VAR - 391138, 758022, 758870, 759053 - REAR AXLE, FINAL DRIVE, DIFFERENTIAL, SUPPORT (27) - REAR AXLE SYSTEM
27.100.010
3
4
1
5
5
8
6
7
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5185923

SUPPORT

RH

1шт.

2

47136375

SUPPORT

ASSY, LH, Incl 3, 4

1шт.

3

14326101

PLUG,M8 x 11

Hex, M18 x 1.25

1шт.

4

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.

5

5152097

SHIM,168mm ID x 208mm OD x 0.15mm Thk

2шт.

5

5152098

SHIM,168mm ID x 208mm OD x 0.2mm Thk

1шт.

5

5152099

SHIM,168mm ID x 208mm OD x 0.5mm Thk

1шт.

6

14233724

LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

12шт.

7

14462280

O-RING,6.237" ID x 0.103" Width

1шт.

8

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

2шт.
