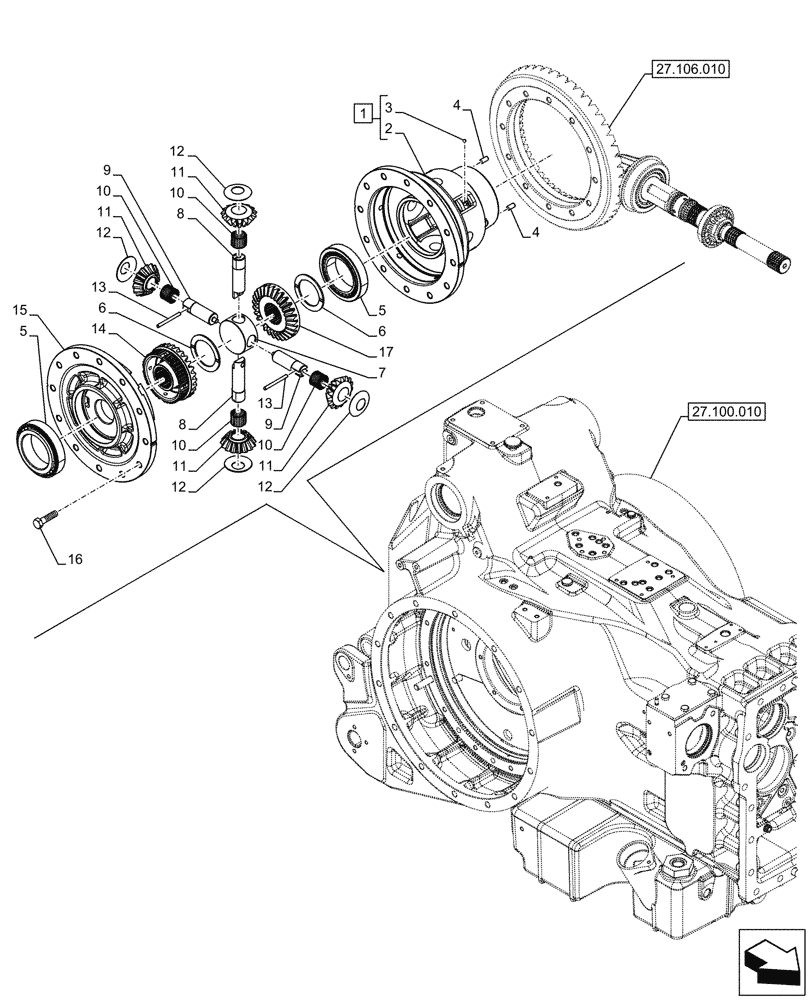

Запчасти Case IH OPTUM 270 CVT (27.106.020) - VAR - 391138, 758022, 758870, 759053 - REAR AXLE, FINAL DRIVE, DIFFERENTIAL (27) - REAR AXLE SYSTEM

1

47794612

HOUSING

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Differential, Incl in 1

1шт.

3

20063460

BALL,7.14mm OD, Gr 100

1шт.

4

13809770

SET SCREW,Hex Soc, M10 x 22mm, Flat Pt

2шт.

5

24903700

ROLLER BEARING,90mm ID x 140mm OD x 32mm W

2шт.

6

5197522

THRUST WASHER,69mm ID x 95mm OD x 3.3mm Thk

2шт.

6

5197534

THRUST WASHER,69mm ID x 95mm OD x 2.7mm Thk

1шт.

6

5197533

THRUST WASHER,69mm ID x 95mm OD x 2.75mm Thk

1шт.

6

5197532

THRUST WASHER,69mm ID x 95mm OD x 2.8mm Thk

1шт.

6

5197531

THRUST WASHER,69mm ID x 95mm OD x 2.85mm Thk

1шт.

6

5197530

THRUST WASHER,69mm ID x 95mm OD x 2.9mm Thk

1шт.

6

5197529

THRUST WASHER,69mm ID x 95mm OD x 2.95mm Thk

1шт.

6

5197528

THRUST WASHER,69mm ID x 95mm OD x 3mm Thk

1шт.

6

5197527

THRUST WASHER,69mm ID x 95mm OD x 3.05mm Thk

1шт.

6

5197526

THRUST WASHER,69mm ID x 95mm OD x 3.1mm Thk

1шт.

6

5197525

THRUST WASHER,69mm ID x 95mm OD x 3.15mm Thk

1шт.

6

5197524

THRUST WASHER,69mm ID x 95mm OD x 3.2mm Thk

1шт.

6

5197523

THRUST WASHER,69mm ID x 95mm OD x 3.25mm Thk

1шт.

6

87748555

THRUST WASHER,69mm ID x 95mm OD x 3.35mm Thk

1шт.

6

87748554

THRUST WASHER,69mm ID x 95mm OD x 3.4mm Thk

1шт.

6

87748553

THRUST WASHER,69mm ID x 95mm OD x 3.45mm Thk

1шт.

6

87748552

THRUST WASHER,69mm ID x 95mm OD x 3.5mm Thk

1шт.

6

84226868

THRUST WASHER,69mm ID x 95mm OD x 3.55mm Thk

1шт.

6

84226875

THRUST WASHER,69mm ID x 95mm OD x 3.6mm Thk

1шт.

6

84226881

THRUST WASHER,69mm ID x 95mm OD x 3.65mm Thk

1шт.

6

84226882

THRUST WASHER,69mm ID x 95mm OD x 3.7mm Thk

1шт.

7

47681180

SUPPORT

1шт.

8

47865521

PIN,30mm OD x 116.5mm L

2шт.

9

47865520

PIN,30mm OD x 102mm L

2шт.

10

47681837

NEEDLE ROLLER,35.6mm OD x 27.8mm L

4шт.

11

47681182

PINION,15T

Z 15

4шт.

12

5196109

THRUST WASHER,30mm ID x 66mm OD x 1.47mm Thk

4шт.

13

14516820

DOWEL,M7 x 75

2шт.

14

5186411

PINION,28T

RH, Z 28

1шт.

15

5185921

COVER

1шт.

16

14254934

LOCK BOLT,Hex, M14 x 1.5 x 55mm, Cl 10.9

12шт.

17

5186410

PINION,28T

LH, Z 28

1шт.
