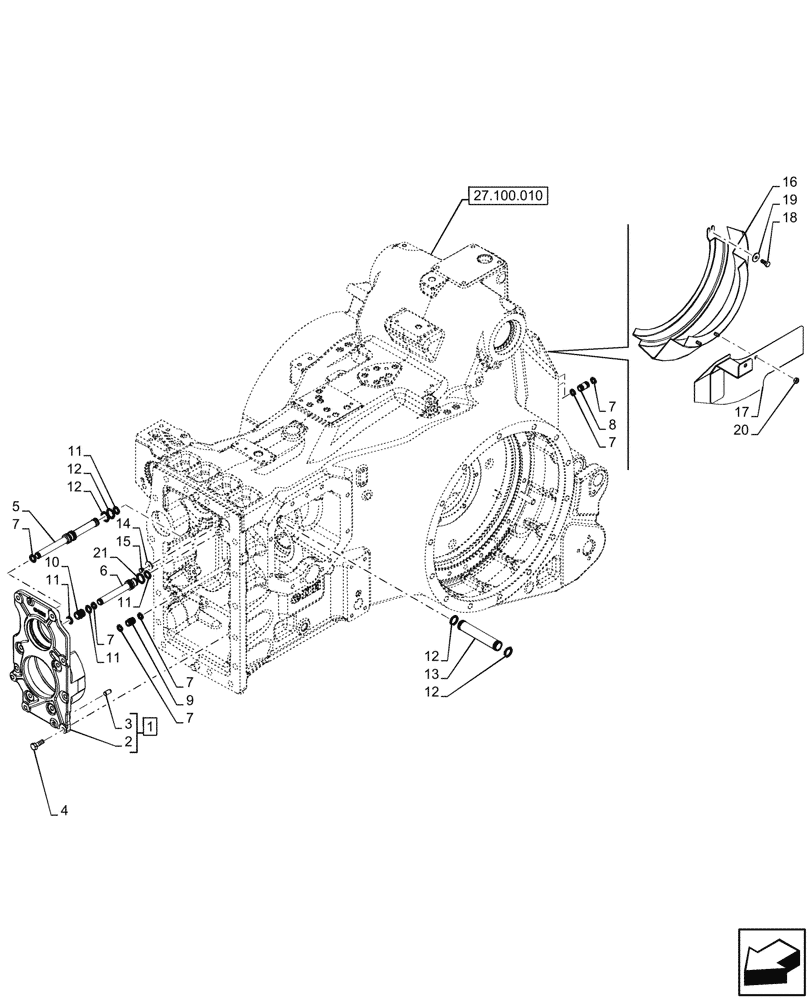

Запчасти Case IH OPTUM 270 CVT (27.100.030) - VAR - 391138, 758022, 758870, 759053 - REAR, TRANSMISSION HOUSING, COVERS (27) - REAR AXLE SYSTEM

1

47527750

COVER ASSY

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

3

10839710

DOWEL,M10 x 15.00mm

4шт.

4

14233624

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

5

47939003

PIPE

1шт.

6

47869461

TUBE

1шт.

7

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

10шт.

8

47645805

SLEEVE,10mm ID x 16.9mm OD x 29.5mm L

3шт.

9

47538493

SLEEVE,10mm ID x 19mm OD x 22mm L

1шт.

10

47649506

SLEEVE,13mm ID x 23mm OD x 22mm L

1шт.

11

45483319

O-RING

4шт.

12

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

5шт.

13

47538495

HYD TUBE

1шт.

14

12640624

WASHER,6.15mm ID x 25mm OD x 2mm Thk

1шт.

15

11635734

SCREW

1шт.

16

47561355

SHIELD

1шт.

17

47754244

SHIELD

1шт.

18

47817535

SCREW

1шт.

19

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

1шт.

20

16100824

NUT,M8, Cl 10

3шт.

21

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.
