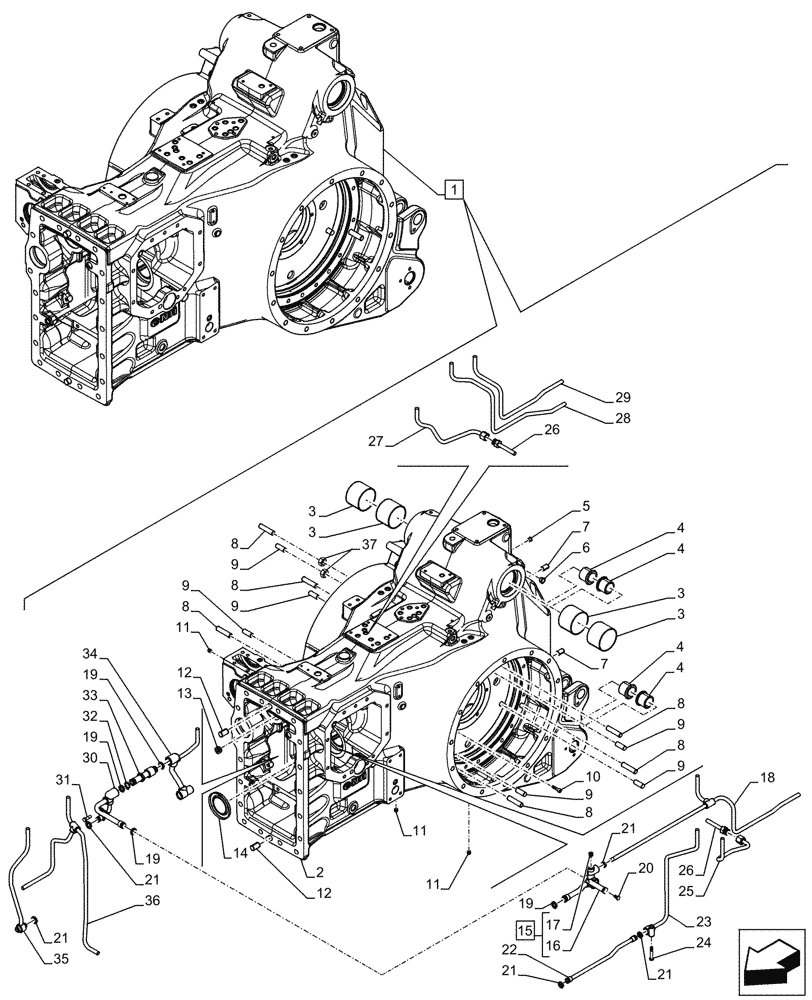

Запчасти Case IH OPTUM 270 CVT (27.100.020) - VAR - 391138, 758022, 758870, 759053 - REAR, TRANSMISSION HOUSING, COMPONENTS (27) - REAR AXLE SYSTEM

1

47639626

TRANSMISSION HOUSING

ASSY, Incl 2 - 37

1шт.

2

NSS

NOT SOLD SEPARAT

Transmission Housing, Incl in 1

1шт.

3

5185956

BUSHING,80.1mm ID x 85mm OD x 60mm L

4шт.

4

5194813

BUSHING,37mm ID x 53mm OD x 40mm L

4шт.

5

4998275

PLUG,8,8mm ID x 10,8mm OD x 10.0mm L

1шт.

6

5111228

PLUG,16.5mm ID x 20mm OD x 11mm Thk

1шт.

7

4985062

DOWEL,15mm OD x 25mm L

2шт.

8

5187995

GUIDE PIN,15mm OD x 65mm L

6шт.

9

47711488

PIN,15mm OD x 40mm L

6шт.

10

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

11

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

3шт.

12

5185790

DOWEL,18mm OD x 30mm L

2шт.

13

10269804

PLUG,M22 x 1.5

1шт.

14

47722421

SEAL PROTECTION,60.5mm ID x 100.2mm OD x 8mm Thk

1шт.

15

47789730

PIPE FITTING,M12 x 1.25

ASSY, Incl 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Pipe Fitting, Incl in 15

1шт.

17

10275504

HEX PLUG

Hex, M12 x 1.25

1шт.

18

47681138

HYD TUBE

from Transmission Housing to Lube Rear Common Rail

1шт.

19

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

4шт.

20

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

21

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

5шт.

22

47529976

HYD TUBE

from Transmission Housing to SAHR

1шт.

23

47723441

HYD TUBE

from Transmission Housing to SAHR

1шт.

24

47834436

SCREW,Hex, M8 x 50mm L, Cl 8.8

1шт.

25

47788616

HYD TUBE

from Transmission Housing to Clean Brake, RH

1шт.

26

47724807

HYD TUBE

from Transmission Housing to Clean Brake, LH

2шт.

27

47724805

HYD TUBE

from Transmission Housing to Clean Brake, LH

1шт.

28

47681145

HYD TUBE

from Transmission Housing to Rear PTO Brake

1шт.

29

47681144

HYD TUBE

from Transmission Housing to Rear PTO

1шт.

30

47789733

PIPE FITTING

1шт.

31

47834434

SCREW,Hex, M8 x 28mm L, Cl 8.8

1шт.

32

86625140

SNAP RING,M20, Ext

1шт.

33

47817531

HYD TUBE

1шт.

34

47878294

HYD TUBE

1шт.

35

47681164

TUBE

from Transmission Housing to 4WD Clutch

1шт.

36

47723476

HYD TUBE

from SAHR to Parking Brake

1шт.

37

9628098

NUT,M8 x 1.25, Cl 10

3шт.
