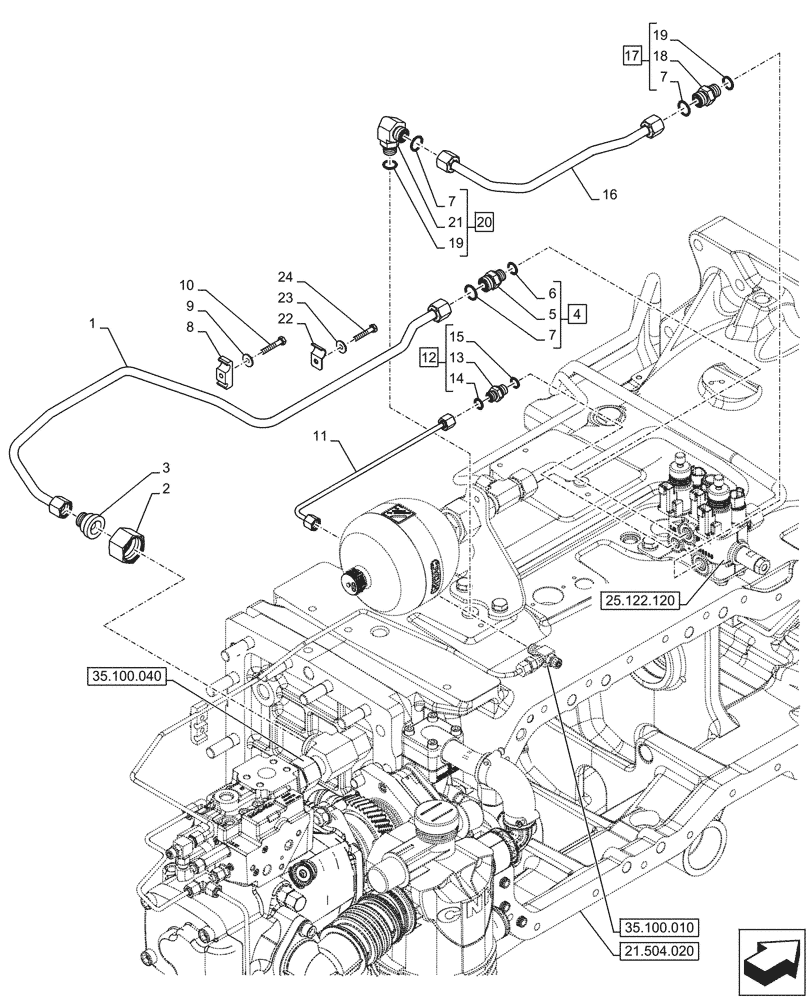

Запчасти Case IH OPTUM 270 CVT (25.122.110) - VAR - 758795, 758796 - FRONT AXLE, HYDRAULIC SYSTEM, PIPE (25) - FRONT AXLE SYSTEM

1

47718182

PIPE

Axle Suspension Valve Drain

1шт.

2

86639097

TUBE NUT,1-7/16"-12

1шт.

3

87016874

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

1шт.

4

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 5, 6, 7 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

6

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

8

47375718

CLAMP BRACKET

, Years: -30-SEP-16

1шт.

9

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

, Years: -30-SEP-16

1шт.

10

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

, Years: -30-SEP-16

1шт.

11

47718443

PIPE

Axle Suspension Valve

1шт.

12

87661868

HYD CONNECTOR,M14 x 1.5 x 29.5mm L

ASSY, Incl 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

16

47718187

PIPE

Axle Suspension Valve Drain

1шт.

17

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 7 (Qty 1), 18, 19 (Qty 1)

1шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 17

1шт.

19

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

20

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

ASSY, Incl 7 (Qty 1), 19 (Qty 1), 21

1шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 20

1шт.

22

84168456

CLAMP BRACKET

, Start Year: 01-OCT-16

1шт.

23

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

, Start Year: 01-OCT-16

1шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

, Start Year: 01-OCT-16

1шт.
