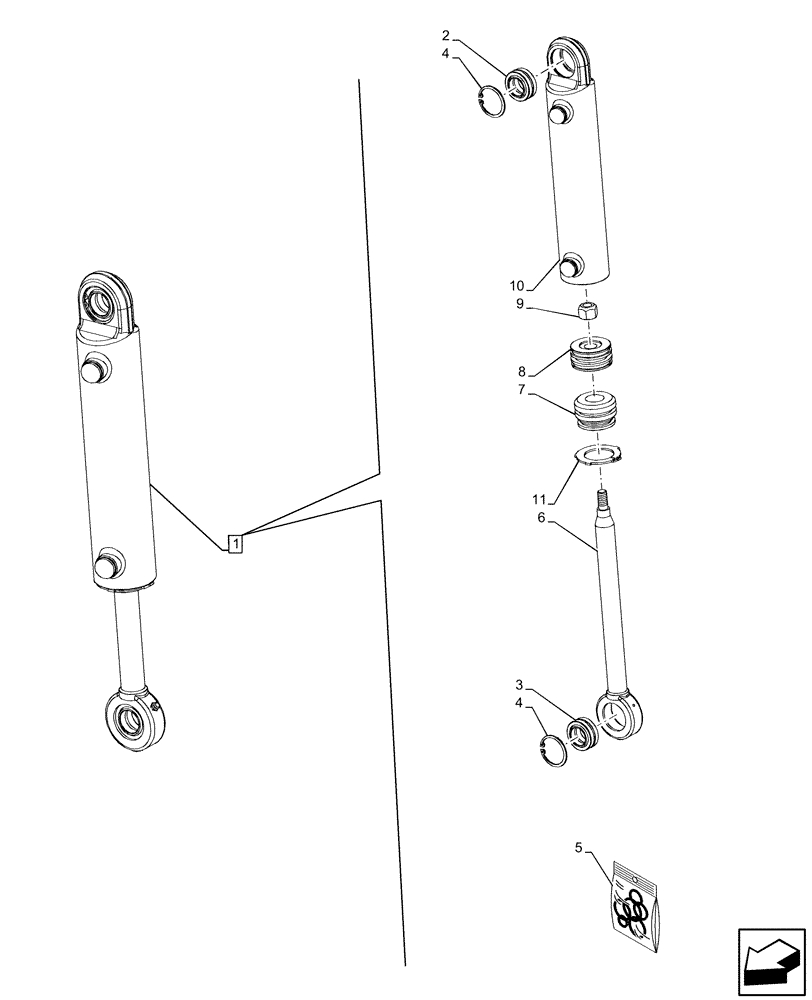

Запчасти Case IH OPTUM 270 CVT (25.122.100) - VAR - 758795, 758796 - FRONT AXLE, HYDRAULIC SYSTEM, CYLINDER, COMPONENTS (25) - FRONT AXLE SYSTEM

1

47913745

HYDRAULIC CYLINDER

ASSY, LH Saddle Suspension, Incl 2 - 11

1шт.

1

47781389

HYDRAULIC CYLINDER

ASSY, RH Saddle Suspension, Incl 2 - 11

1шт.

2

47780610

BALL JOINT

1шт.

3

47781254

BALL JOINT

1шт.

4

84375340

RING

2шт.

5

47780168

SEAL KIT

1шт.

6

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Head, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Rod Eye, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Retaining Ring, Incl in 1

1шт.
