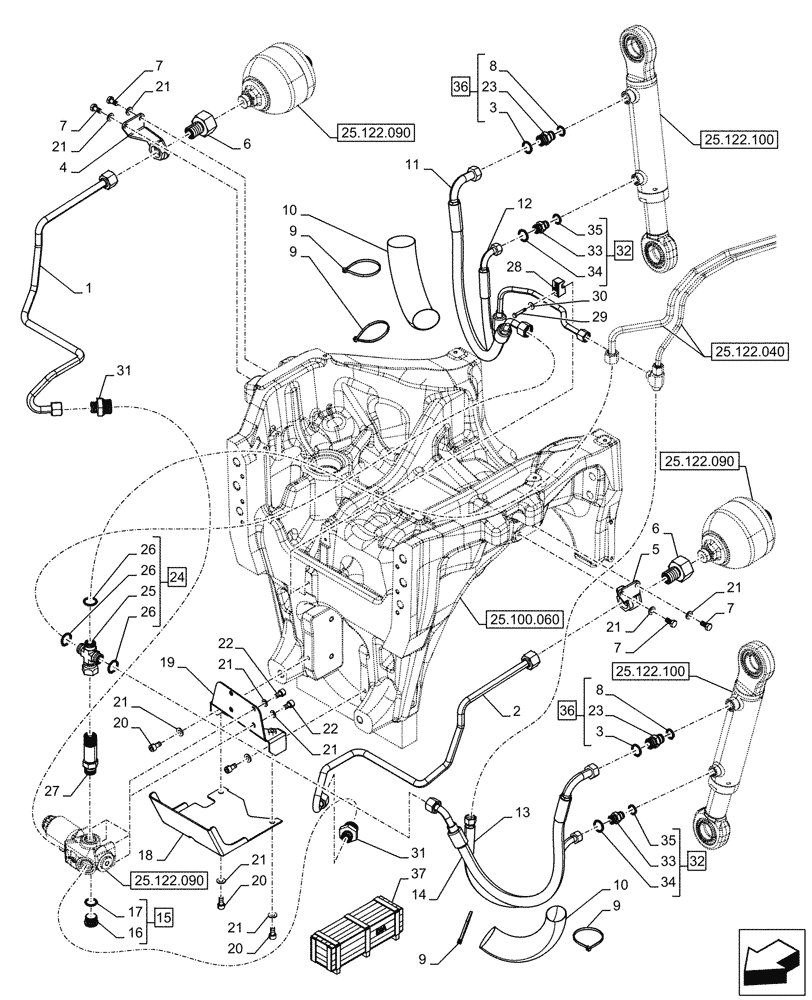

Запчасти Case IH OPTUM 270 CVT (25.122.030) - VAR - 758768, 758769, 758774, 758775, 758776, 759086, 759123, 759304 - FRONT AXLE, SUSPENSION, LINES, W/O FRONT PTO (25) - FRONT AXLE SYSTEM

1

47823777

PIPE

from Axle Suspension to RH Accumulator

1шт.

2

47823779

PIPE

from Axle Suspension to LH Accumulator

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

47924200

BRACKET

RH

1шт.

5

47924199

BRACKET

LH

1шт.

6

47881962

ADAPTER

2шт.

7

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

8

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

9

14560287

CABLE TIE,207.00mm L

4шт.

10

47789334

PROTECTIVE SLEEVE,66.55mm ID x 280mm L

2шт.

11

47800495

HOSE,16mm ID x 720mm L

form Axle Suspension to RH Piston

1шт.

12

47867070

PIPE

from Axle Suspension to RH Rod

1шт.

13

47756218

HOSE

from Axle Suspension to LH Rod

1шт.

14

47800490

HOSE

from Axle Suspension to LH Piston

1шт.

15

86598048

PLUG,Hex Soc, M27 x 2, ORB

ASSY, Incl 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Plug, Incl in 15

1шт.

17

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

18

47825614

COVER

1шт.

19

47881949

BRACKET

1шт.

20

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

4шт.

21

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

12шт.

22

14301821

HEX SOC SCREW,M10 x 16mm, Cl 8.8, Full Thd

4шт.

23

NSS

NOT SOLD SEPARAT

Connector, Incl in 36

2шт.

24

87608130

HYD CONNECTOR

ASSY, Incl 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

Connector, Incl in 24

1шт.

26

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

27

47646932

FITTING,M27 x 2 x 108.5mm L

1шт.

28

87532290

BRACKET

1шт.

29

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

30

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

1шт.

31

47831583

FITTING,1-14 ORFS 1-11 ORB, 48mm L

2шт.

32

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 33 - 35

2шт.

33

NSS

NOT SOLD SEPARAT

Connector, Incl in 32

2шт.

34

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

36

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 3 (Qty 1), 8 (Qty 1 ), 23

2шт.

Valid for T7.290, T7.315 Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Valid for OPTUM 270 CVX, OPTUM 300 CVX, OPTUM 270 CVT, OPTUM 300 CVT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Valid for 6270 CVT, 6300 CVT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
