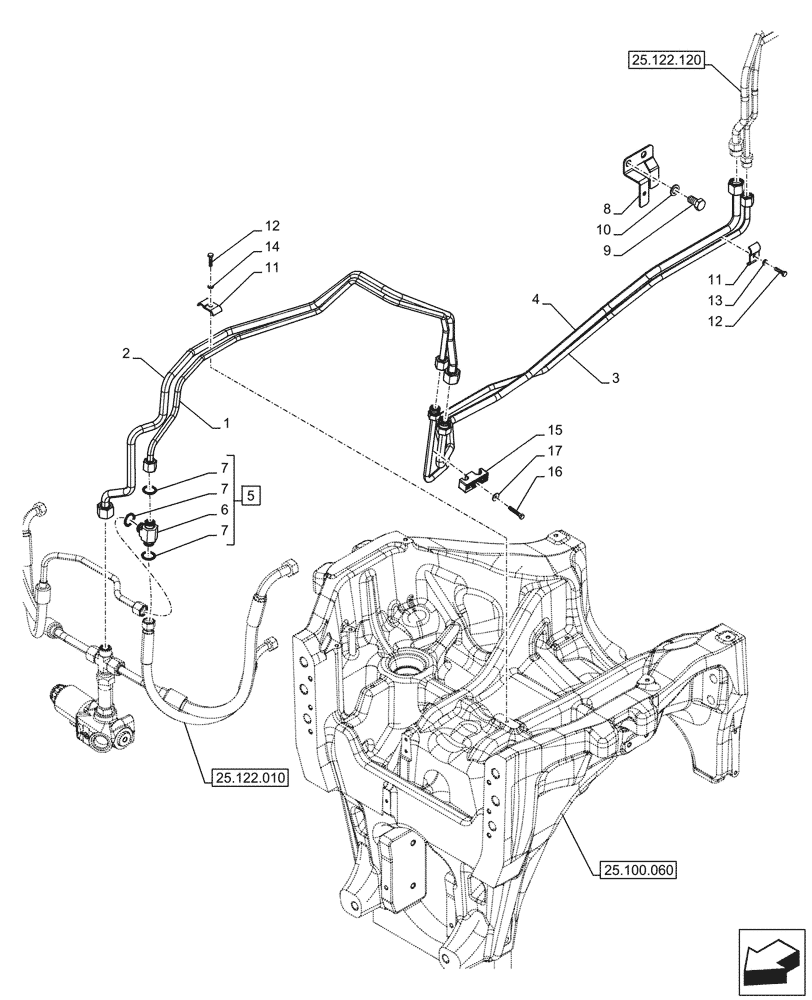

Запчасти Case IH OPTUM 270 CVT (25.122.020) - VAR - 758770, 758771, 758772, 758773, 759305, 759306, 759307, 759308 - FRONT AXLE, SUSPENSION, LINES, W/ FRONT PTO (25) - FRONT AXLE SYSTEM

1

47828683

PIPE

from Front Axle Valve to Front Axle Suspension

1шт.

2

47823591

PIPE

from Front Axle Valve to Front Axle Suspension

1шт.

3

47761199

PIPE

from Front Axle Valve to Front Axle Suspension

1шт.

4

47761197

PIPE

from Front Axle Valve to Front Axle Suspension

1шт.

5

86533127

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Tee, Incl in 5

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

8

47928008

BRACKET

1шт.

9

11115424

SCREW,Hex, M14 x 2 x 28mm L, Cl 8.8

2шт.

10

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

2шт.

11

84476872

BRACKET

2шт.

12

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

13

10519477

WASHER,6.45mm ID x 12mm OD x 1.5mm Thk

1шт.

14

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

15

87694267

BLOCK

1шт.

16

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

17

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

1шт.
