Запчасти Case IH OPTUM 270 CVT (25.108.080) - VAR - 758796 - FRONT AXLE, W/ FRONT BRAKES, STEERING KNUCKLE, ATTACHMENT PIN (25) - FRONT AXLE SYSTEM

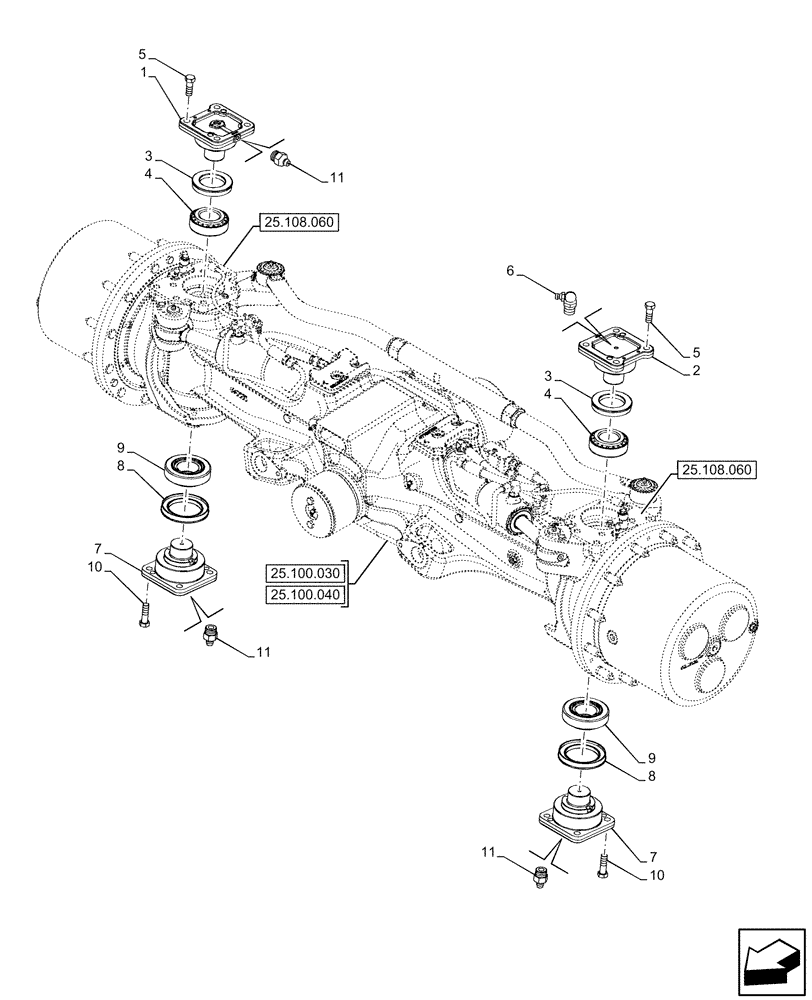

Схема запчастей Case IH OPTUM 270 CVT - (25.108.080) - VAR - 758796 - FRONT AXLE, W/ FRONT BRAKES, STEERING KNUCKLE, ATTACHMENT PIN (25) - FRONT AXLE SYSTEM
25.100.030
4
4
2
11
9
3
7
9
8
6
10
8
3
1
5
5
7
10
11
11
25.108.060
25.108.060
25.100.040

Артикул

Название

Примечание

Количество

1

47489649

PIN,112mm OD x 84.5mm L

Upper, RH

1шт.

2

47489651

PIN,112mm OD x 105.5mm L

Upper, LH

1шт.

3

47489664

SEAL PROTECTION,70mm ID x 110mm OD x 17.4mm Thk

2шт.

4

47489662

TAPERED BEARING,54.48mm ID x 104.77mm OD x 36.51mm Thk

2шт.

5

14258034

SCREW,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

8шт.

6

13408411

LUBE NIPPLE,90 Degree , M10 x1

1шт.

7

47489660

PIN,132mm OD x 104.5mm L

Lower

2шт.

8

47489665

SEAL PROTECTION,90mm ID x 130mm OD x 17.4mm Thk

2шт.

9

47489663

TAPERED BEARING,60mm ID x 125mm OD x 37mm

60mm ID x 125mm OD x 37mm

2шт.

10

14258234

BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9

8шт.

11

13407211

LUBE NIPPLE,M10 x 1

3шт.

Выбрано товаров: 11
