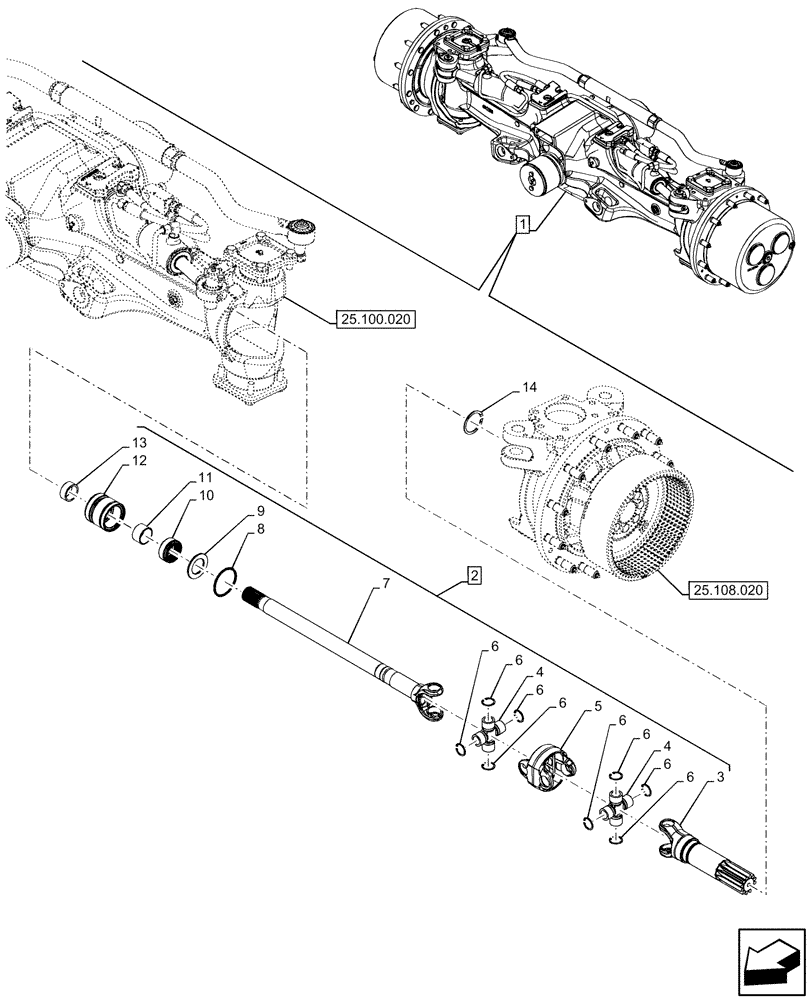

Запчасти Case IH OPTUM 270 CVT (25.108.030) - VAR - 758795 - FRONT AXLE, SHAFT (25) - FRONT AXLE SYSTEM

1

47496687

FRONT AXLE

ASSY, Incl 2 - 14

1шт.

See also Figure 25.100.020, 25.102.030, 25.108.010, 25.108.020, 25.108.040, 41.106.010, 41.216.030, 55.047.020

1шт.

2

47761271

HALF SHAFT

ASSY, LH, Incl 3 - 13

1шт.

2

47761272

HALF SHAFT

ASSY, RH, Incl 3 - 13

1шт.

3

NSS

NOT SOLD SEPARAT

Yoke Shaft, Incl in 2

1шт.

4

47558291

SPIDER

2шт.

5

87568624

U-JOINT SPIDER

1шт.

6

5191452

LOCKING RING

8шт.

7

NSS

NOT SOLD SEPARAT

Yoke Shaft, 735mm, LH, Incl in 2

1шт.

8

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Retainer Seal, Incl in 2

1шт.

10

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

1шт.

11

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

1шт.

12

NSS

NOT SOLD SEPARAT

Bushing, Incl in 2

1шт.

13

NSS

NOT SOLD SEPARAT

Spacer, Incl in 2

1шт.

14

11070176

SNAP RING,M63, Ext

1шт.
