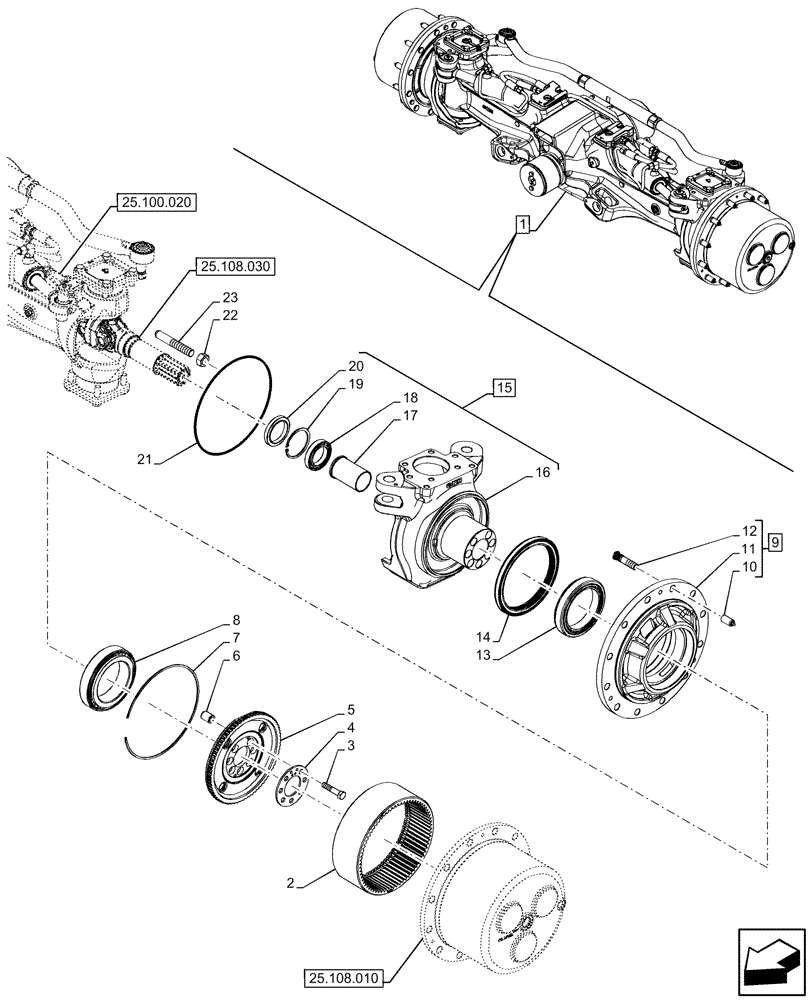

Запчасти Case IH OPTUM 270 CVT (25.108.020) - VAR - 758795 - FRONT AXLE, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

1

47496687

FRONT AXLE

ASSY, Incl 2 - 23

1шт.

See also Figure 25.100.020, 25.102.030, 25.108.010, 25.108.030, 25.108.040, 41.106.010, 41.216.030, 55.047.020

1шт.

2

47489644

RING GEAR,297mm ID x 337mm OD x 113mm Thk, 72T

1шт.

3

47823518

SCREW,M16 x 1.5 x 75mm

M16 x 1.5 x 75mm

7шт.

4

47848251

PLATE

1шт.

5

47848277

CARRIER

1шт.

6

47848271

BUSHING,16.5mm ID x 27mm OD x 35.3mm L

1шт.

7

47489645

SNAP RING,M324, Ext

1шт.

8

47489637

BEARING ASSY,140mm ID x 210mm OD x 45mm

140mm ID x 210mm OD x 45mm

1шт.

9

47489621

HUB

ASSY, Incl 10 - 12

1шт.

10

84262643

PROTECTIVE SLEEVE,4.8mm ID x 19mm OD x 50.8mm L

12шт.

11

NSS

NOT SOLD SEPARAT

Hub, Incl in 9

1шт.

12

87553892

STUD,M20 x 1.5

M20 x 1.5

12шт.

13

47595708

BEARING ASSY,140mm ID x 195mm OD x 34.92mm

140mm ID x 195mm OD x 34.92mm

1шт.

14

87711037

SHAFT SEAL,220mm ID x 265mm OD x 19mm Thk

220mm ID x 265mm OD x 19mm

1шт.

15

47903624

KNUCKLE

ASSY, LH, Incl 16 - 20

1шт.

15

47903621

KNUCKLE

ASSY, RH, Incl 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

Steering Knuckle, Incl in 15

1шт.

17

47899587

SPACER,63.27mm ID x 69.5mm OD x 111.9mm L

1шт.

18

47869149

BALL BEARING,65mm ID x 100mm OD x 18mm W

1шт.

19

11062976

SNAP RING,Int, M100 x 3

1шт.

20

47904126

SEAL,75mm ID x 100mm OD x 12.5mm Thk

75mm ID x 100mm OD x 13mm

1шт.

21

14469780

O-RING,0.139" Thk x 12.984" ID, -279, Cl 5, 75 Duro

1шт.

22

9848973

NUT,M24 x 3.0, Cl 10

1шт.

23

84530771

ADJUSTMENT SCREW,M24 x 3 x 154mm L

1шт.
