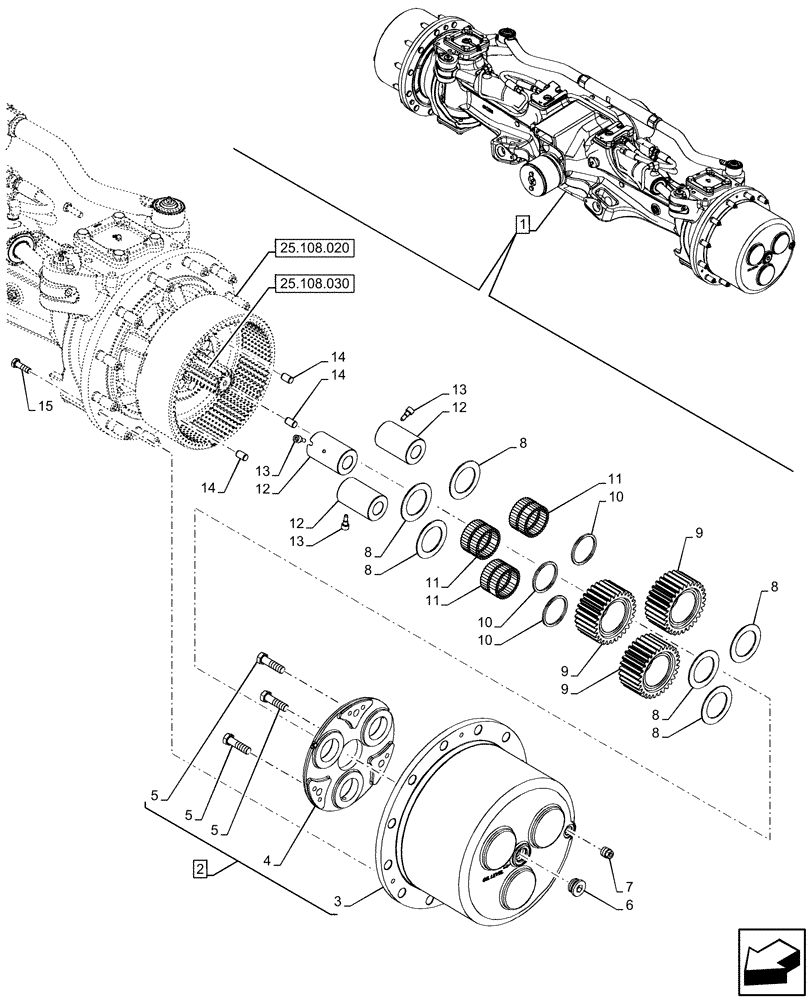

Запчасти Case IH OPTUM 270 CVT (25.108.010) - VAR - 758795 - FRONT AXLE, PLANETARY REDUCER (25) - FRONT AXLE SYSTEM

1

47496687

FRONT AXLE

ASSY, Incl 2 - 15

1шт.

See also Figure 25.100.020, 25.102.030, 25.108.020, 25.108.030, 25.108.040, 41.106.010, 41.216.030, 55.047.020

1шт.

2

47493376

CARRIER

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Carrier, Incl in 2

1шт.

4

47493380

SUPPORT

1шт.

5

47538707

LOCK BOLT,M16 x 1.5 x 60mm L

3шт.

6

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

7

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

8

87435907

THRUST WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

6шт.

9

47493384

PLANETARY GEAR,29T

3шт.

10

87581618

SPACER,66.5mm ID x 76.45mm OD x 4.1mm L

3шт.

11

47507412

NEEDLE BEARING,63.41mm ID x 76.71mm OD x 23mm Thk

3шт.

12

47493382

PIN,63.40mm OD x 100.5mm L

3шт.

13

47632781

SCREW,Hex, M10 x 1.5

3шт.

14

4985062

DOWEL,15mm OD x 25mm L

3шт.

15

14274734

LOCK BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9

3шт.
